Ricoh Aficio SP 100 User Manual

Left Hinge
The right hinge does not require removal unless it must be replaced.
Preparation
• Remove the right cover

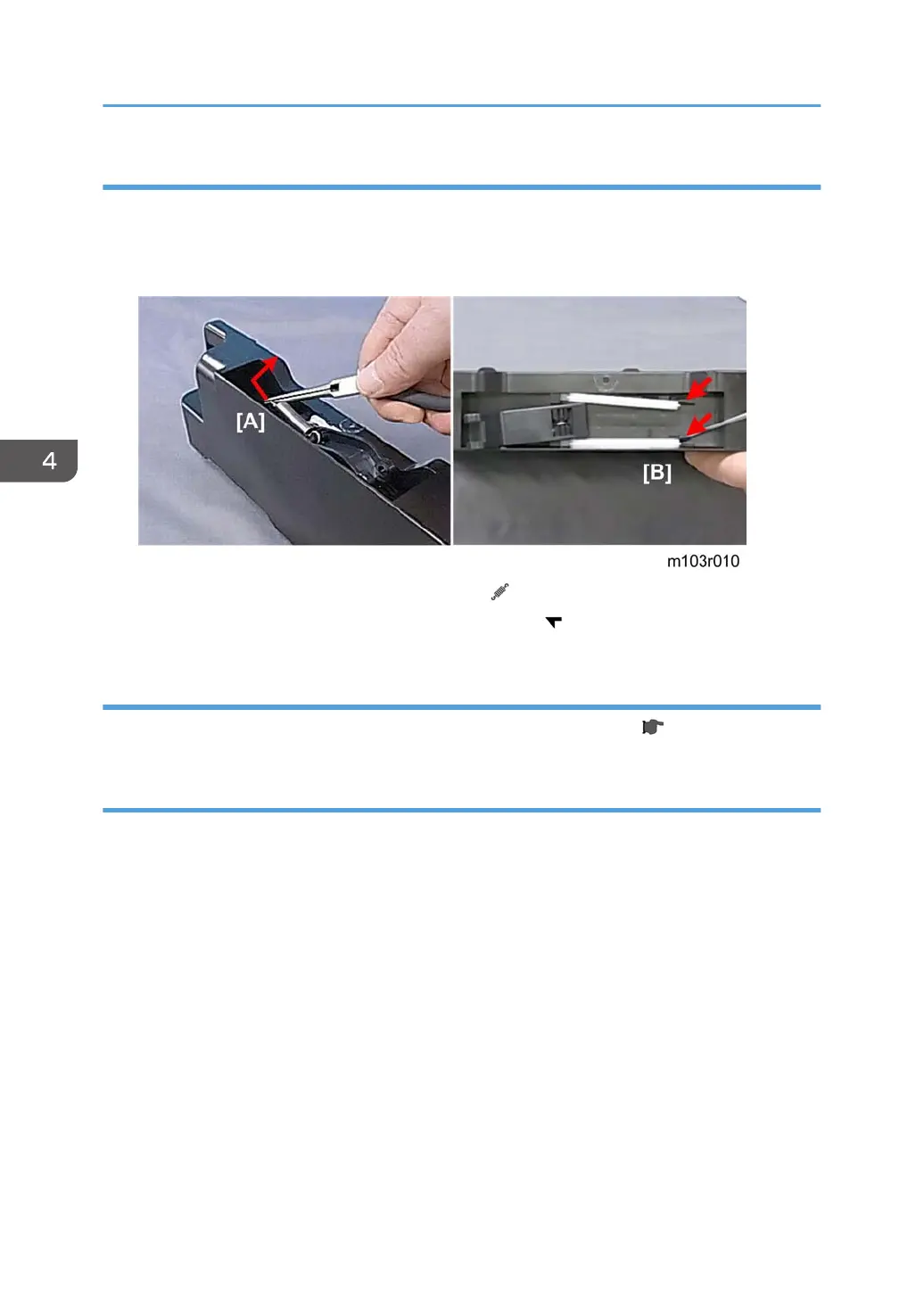

1. Use a pair of radio pliers to remove the spring [A] ( x1).
2. Use the tip of a small screwdriver to release the guides [B] ( x2).
Rear Cover
The rear cover does not require removal unless the PSU requires replacement ( p.134 "PSU")
ADF/Flatbed Unit
Preparation
Remove:
• Original feed tray
•
AIO
• Front Cover
• Right Cover
• Left Cover
4. Replacement and Adjustments
66
