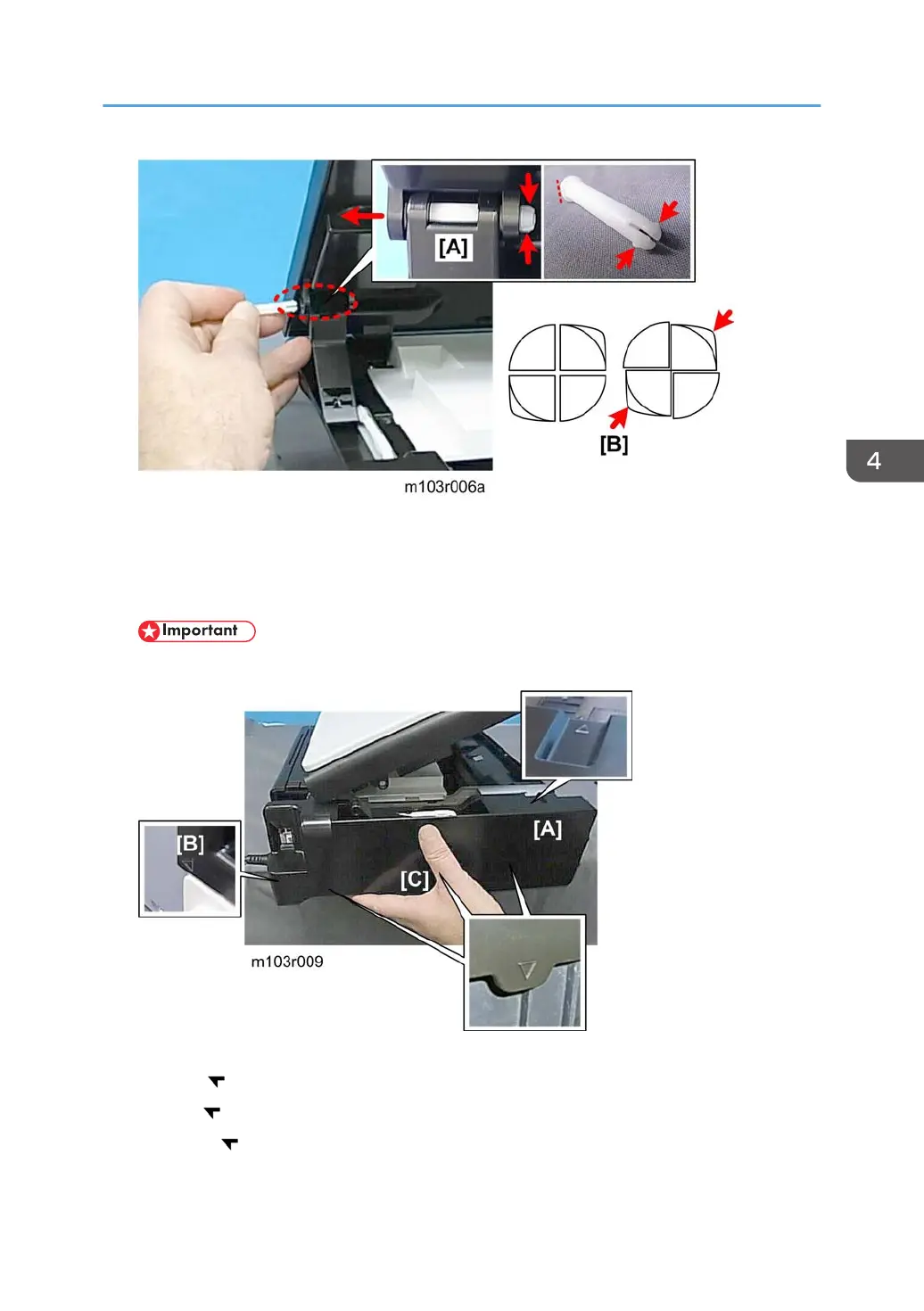

2. At the top of the hinge, look at the head of the cotter pin [A]. The flat side of the head shows you
where the two split ends of the pin are located.
3. With your fingers or the tips of a pair of radio pliers compress the split ends [B] of the pin, push it to
the left, and then remove it.
• The pin is split into four sections but only two sides protrude to lock and release the pin.
4. At the triangle markers, release the tabs:
[A] Front ( x1)
[B] Rear ( x1)
[C] Bottom ( x3)
Basic Procedures
65

Ricoh Aficio SP 100 Specifications

General

Print Speed	13 ppm
Resolution	1200 x 600 dpi
Paper Capacity	50 sheets
Connectivity	USB 2.0
Warm-up Time	25 seconds
First Print Out Time	13 seconds
Paper Output Capacity	10 sheets
Type	Monochrome Laser Printer
Memory	16 MB
Print Technology	Laser
Supported Paper Sizes	A4, A5, A6, B5
Supported OS	Windows, Mac OS
