Ricoh Aficio SP 100 User Manual

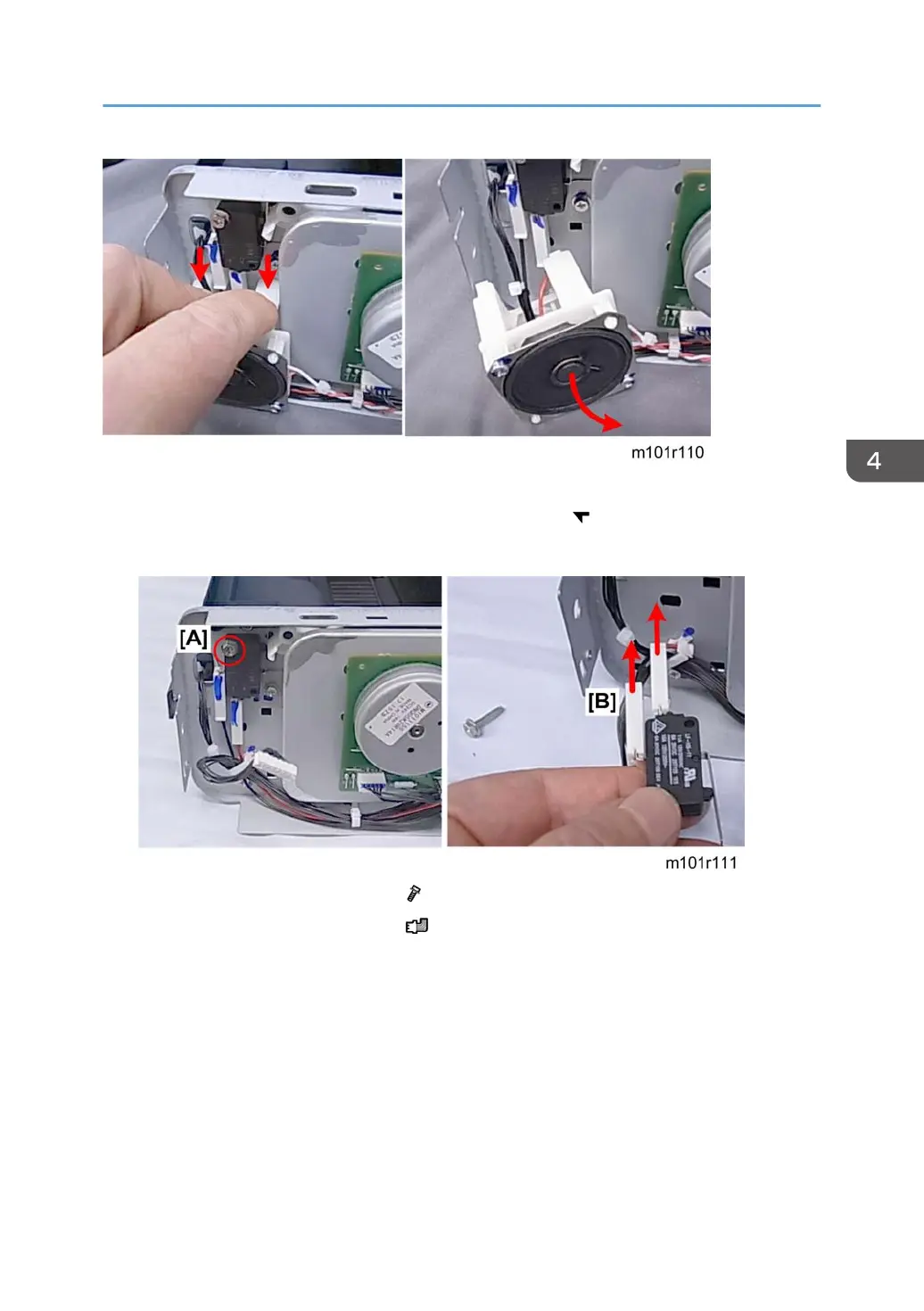

1. If you are servicing the M103, you must move the speaker so you can access the breaker switch.
• Release the tabs at the top of the speaker mounting plate ( x2).
• Move the speaker slightly to the right (you do not need to remove it).
2. Remove the breaker switch screw [A] ( x1).
3. Disconnect and remove the switch [B] ( x2).
Switches
107

Ricoh Aficio SP 100 Specifications

General

Print Speed	13 ppm
Resolution	1200 x 600 dpi
Paper Capacity	50 sheets
Connectivity	USB 2.0
Warm-up Time	25 seconds
First Print Out Time	13 seconds
Paper Output Capacity	10 sheets
Type	Monochrome Laser Printer
Memory	16 MB
Print Technology	Laser
Supported Paper Sizes	A4, A5, A6, B5
Supported OS	Windows, Mac OS
