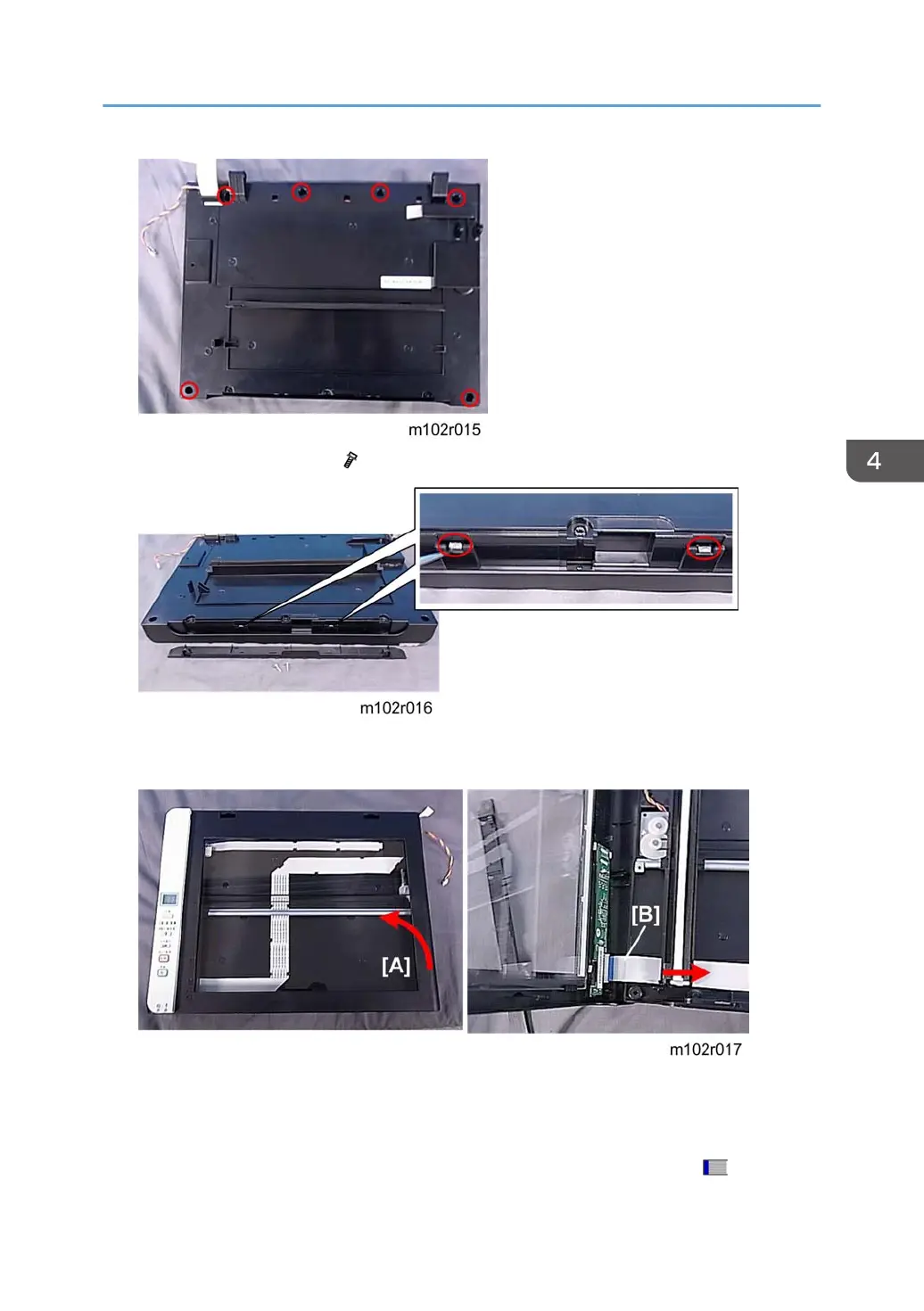

3. Disconnect the bottom plate ( x6).
4. Disconnect the hooks where the edge plate was removed. The top and bottom halves of the flatbed
unit are now disconnected.
5. While holding the unit together with your hands on both sides, turn the unit over so the exposure
glass is facing up.
6. Carefully raise the right side of the unit top [A].
7.
While holding the top of the unit upright, disconnect the operation panel PCB [B] (
x1).
Flatbed Scanner
145

Ricoh Aficio SP 100 Specifications

General

Print Speed	13 ppm
Resolution	1200 x 600 dpi
Paper Capacity	50 sheets
Connectivity	USB 2.0
Warm-up Time	25 seconds
First Print Out Time	13 seconds
Paper Output Capacity	10 sheets
Type	Monochrome Laser Printer
Memory	16 MB
Print Technology	Laser
Supported Paper Sizes	A4, A5, A6, B5
Supported OS	Windows, Mac OS
