Ricoh Aficio SP 100 User Manual

Length Range: 127 to 297 mm (5.00 to 11.69 inch).
Adjustment: 1 mm or 0.01 steps
Registration

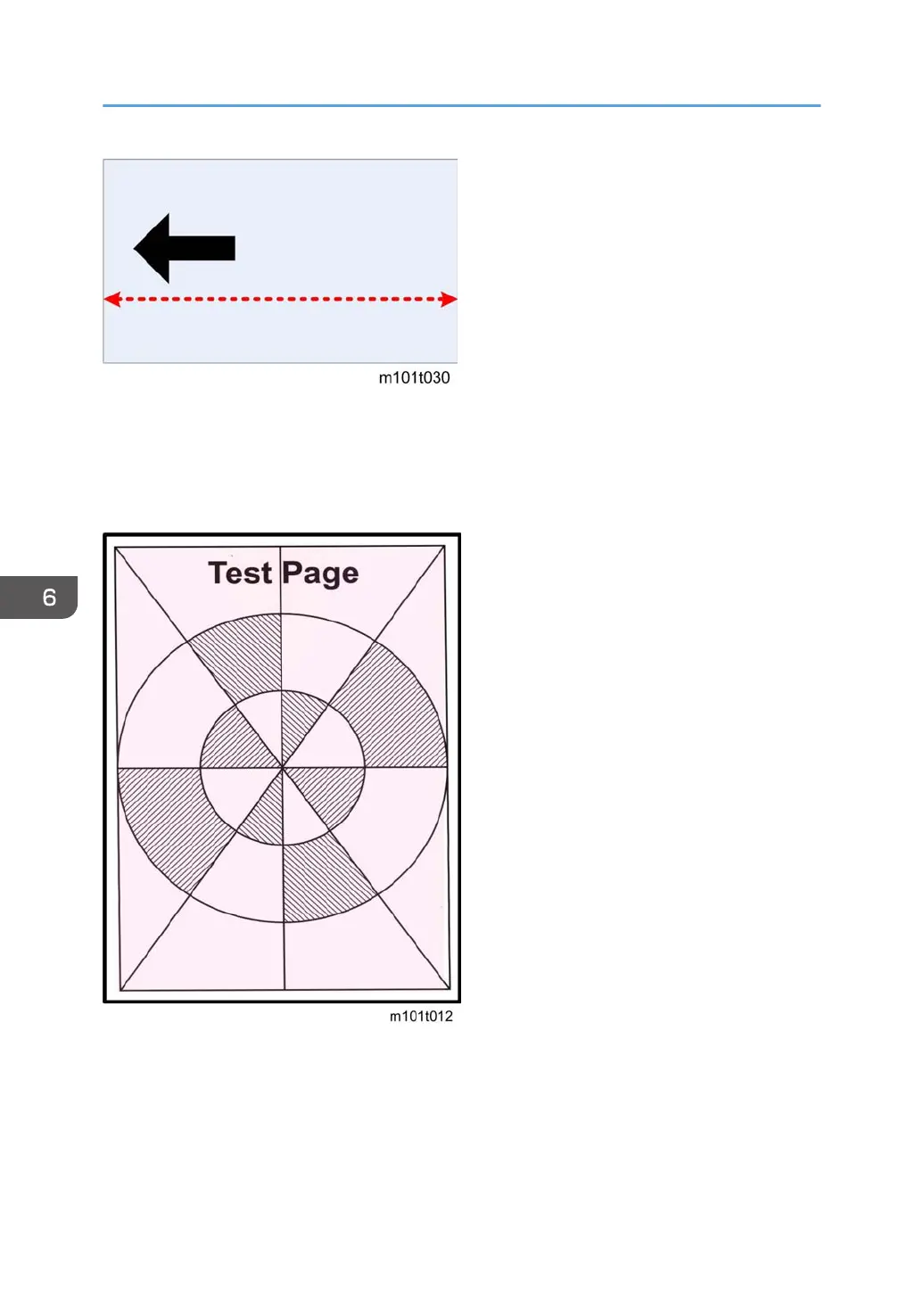

• Print Test Sheet button. Prints the Print Test Sheet.
• Horizontal (-15 to 15). Adjusts the horizontal position of the image area. Adjustable in 0.1 mm
steps.
• Vertical (-15 to 15). Adjusts the vertical position of the image area. Adjustable in 0.1 mm steps.
Energy Saver Mode 1
. Switches Energy Saver Mode 1 off/on. When this feature is on the machine
enters Energy Saver Mode 1 after the machine remains idle for 30 sec. This time limit is not adjustable.
6. Troubleshooting
166

Ricoh Aficio SP 100 Specifications

General

Print Speed	13 ppm
Resolution	1200 x 600 dpi
Paper Capacity	50 sheets
Connectivity	USB 2.0
Warm-up Time	25 seconds
First Print Out Time	13 seconds
Paper Output Capacity	10 sheets
Type	Monochrome Laser Printer
Memory	16 MB
Print Technology	Laser
Supported Paper Sizes	A4, A5, A6, B5
Supported OS	Windows, Mac OS
