Ricoh Aficio SP 100 User Manual

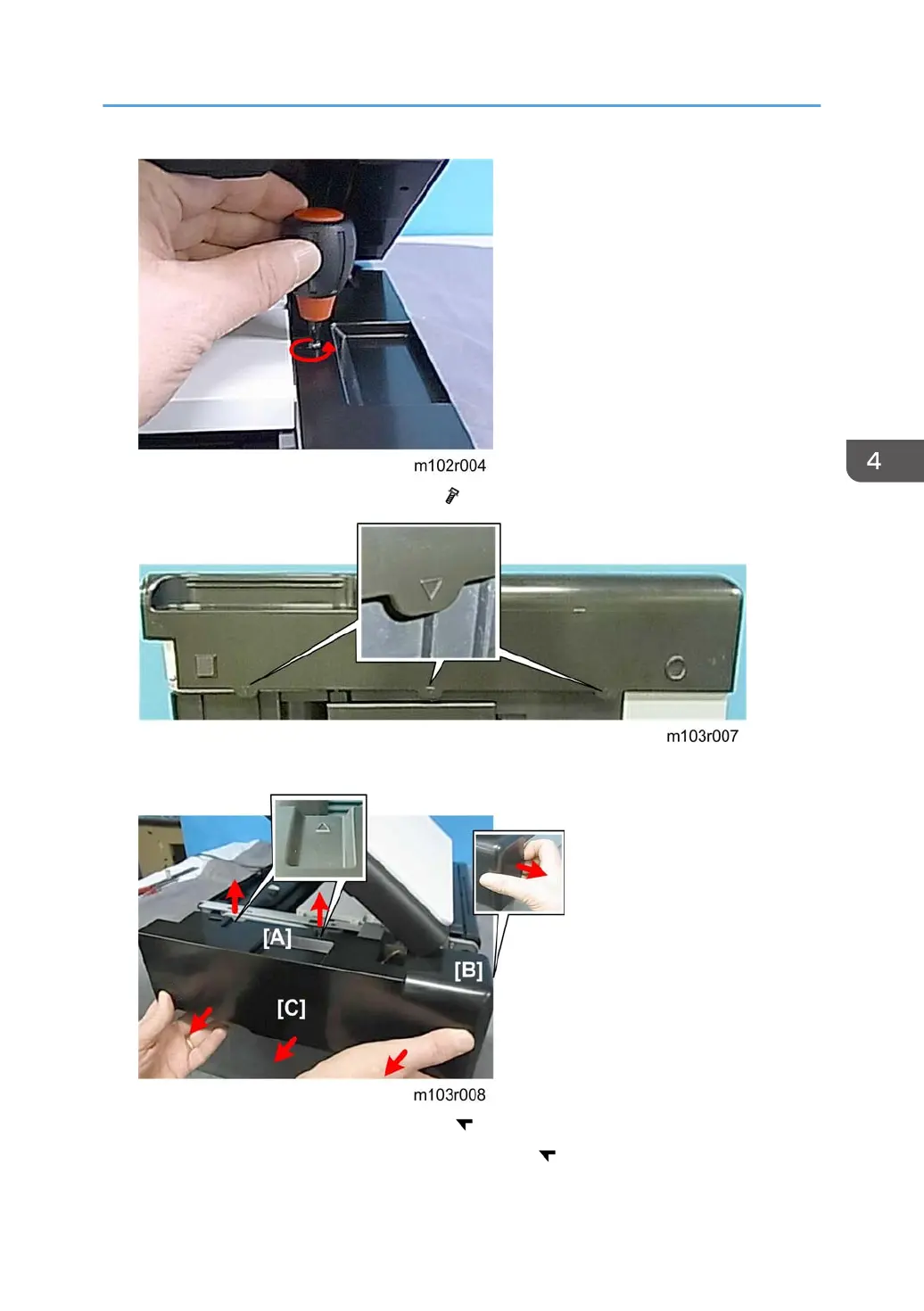

1. Remove the screw on top of the right cover ( x1).
2. Locate the triangle marks that show you where the tab releases are located on the bottom.
3. Release the tabs at the back [A] and front [B] ( x2).
4. Release the tabs on the bottom [C] and remove the cover ( x3).
Basic Procedures
63

Ricoh Aficio SP 100 Specifications

General

Print Speed	13 ppm
Resolution	1200 x 600 dpi
Paper Capacity	50 sheets
Connectivity	USB 2.0
Warm-up Time	25 seconds
First Print Out Time	13 seconds
Paper Output Capacity	10 sheets
Type	Monochrome Laser Printer
Memory	16 MB
Print Technology	Laser
Supported Paper Sizes	A4, A5, A6, B5
Supported OS	Windows, Mac OS
