Ricoh Aficio SP 5210SR User Manual

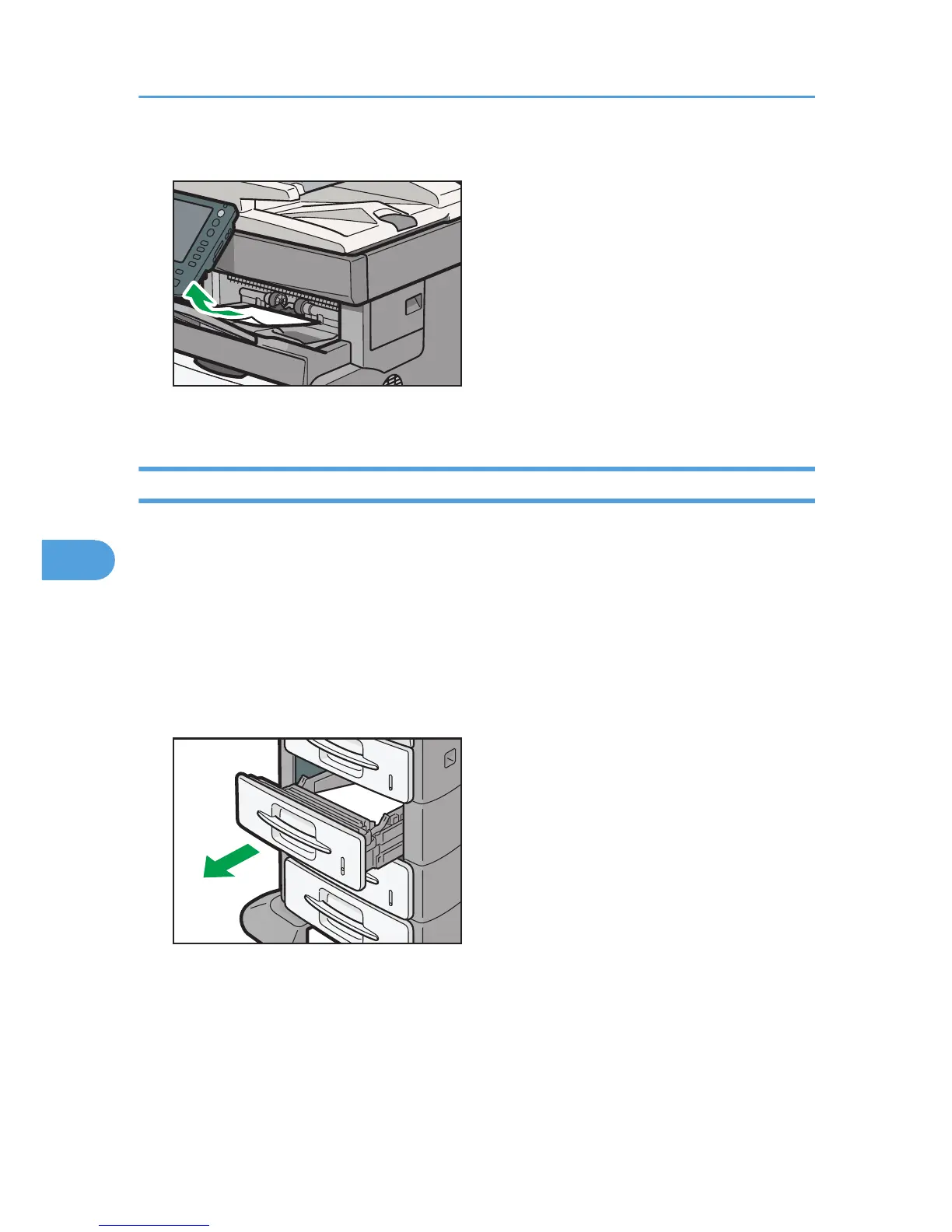

2. Remove the misfed paper from the paper exit.
CFF019
3. Close the rear cover.
When Y1 - Y3 is displayed
“Y1”, “Y2”, and “Y3” indicate a paper jam has occurred in the following optional trays:
• “Y1”: Tray 2
• “Y2”: Tray 3
• “Y3”: Tray 4
The following example explains how to remove a paper jam in tray 2.
The same procedure can be used for paper in trays 3 and 4.
1. Carefully pull out tray 2 until it stops.
CFF026
6. Clearing Misfeeds
136
6

Ricoh Aficio SP 5210SR Specifications

General

Brand	Ricoh
Model	Aficio SP 5210SR
Category	All in One Printer
Language	English
