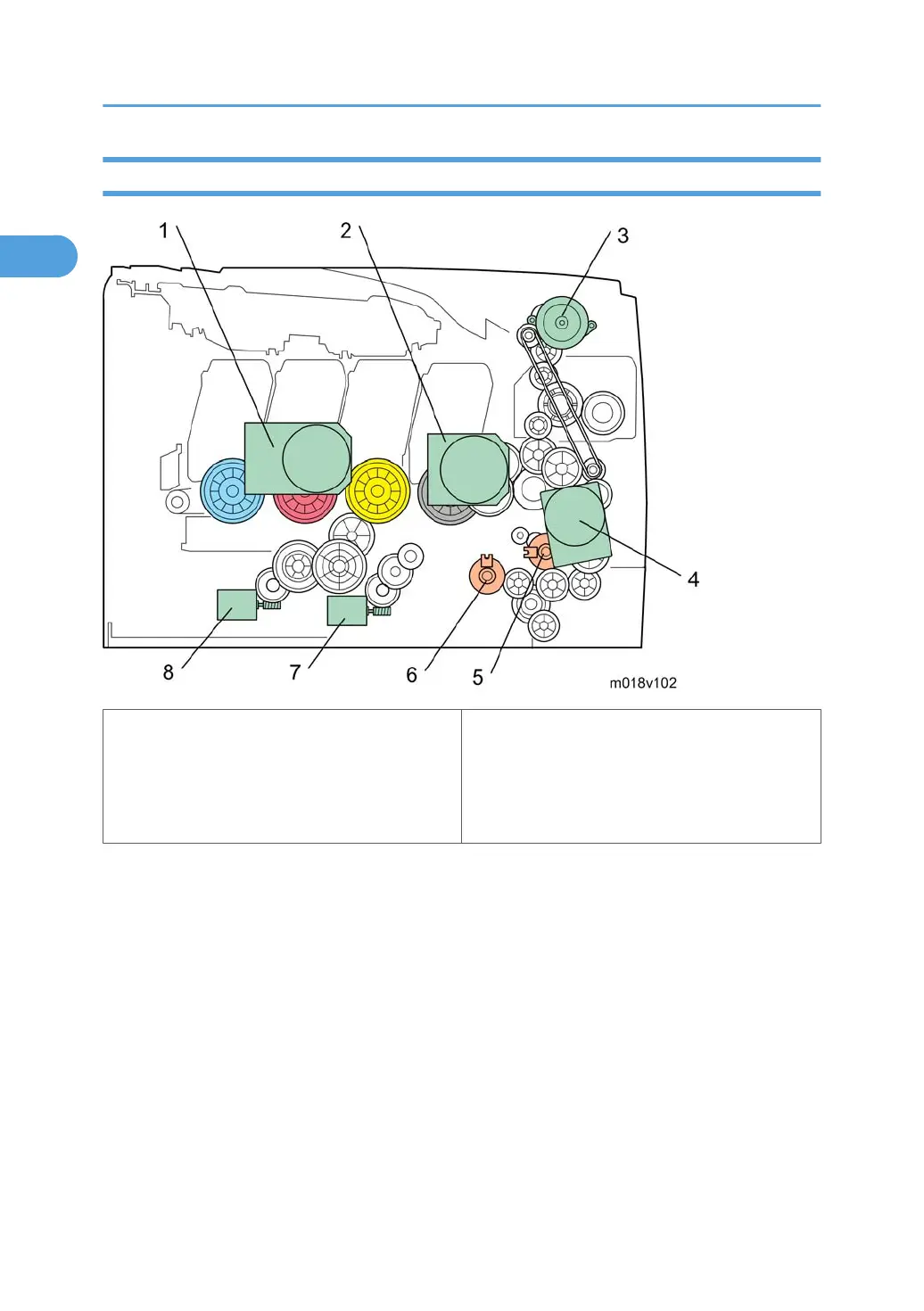

Drive Layout
1. Color AIO Motor
2. Black AIO Motor
3. Duplex Motor (M036 only)
4. Transport/Fusing Motor
5. Registration Clutch
6. Paper Feed Clutch
7. Agitator Motor
8. ITB (Image Transfer Belt) Contact Motor
• Color AIO Motor:
This drives the color AIOs (Cyan, Magenta and Yellow)
• Black AIO Motor:
This drives the black AIO and the ITB (Image Transfer Belt).
• Duplex Motor (M036 only):
This drives the paper exit roller and the duplex roller.
• Transport/Fusing Motor:
This drives the fusing unit, paper feed roller, registration roller and paper exit roller via the paper feed
clutch, registration clutch and gears.
• Registration Clutch:
This transfers drive from the transport/ fusing motor to the registration roller.
1. Product Information
10
