Registration Roller
1. Transfer unit ( p.48)
2. Transfer roller unit ( p.48)
3. Tension springs [A] (both sides)
4. Registration idle roller [B] ( x 2, gear x 1, bushing x 2)
5. Registration roller [C] ( x 2, gear x 2, bushing x 2)
Reassembling the registration roller unit

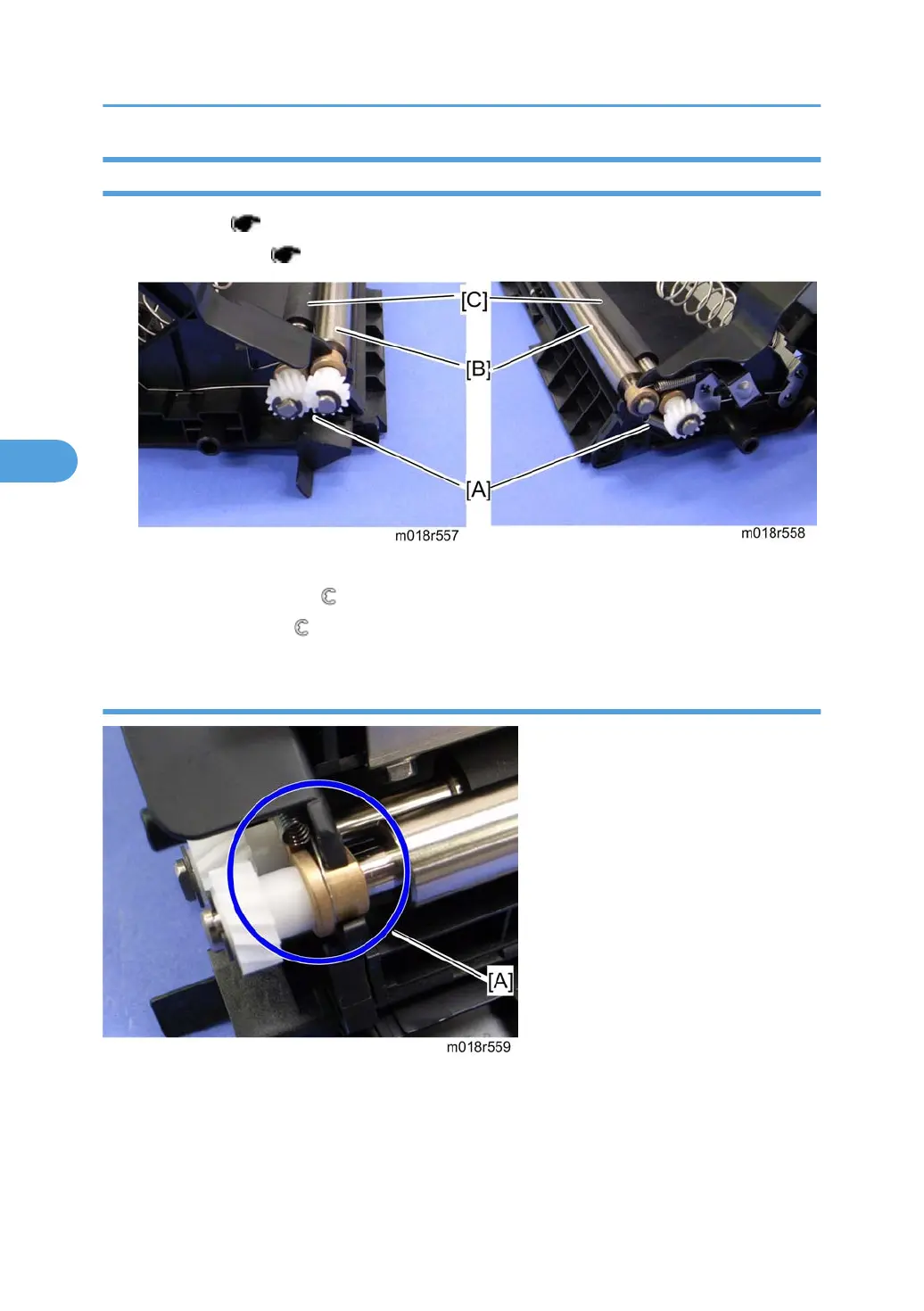

When installing the tension spring, make sure that the tension spring correctly hooks onto the bushing of
the registration idle roller as shown above [A].
