Image Fusing
• Make sure that the fusing unit is cool before you touch it. The fusing unit can be very hot.
• Make sure to restore the insulators, shields, etc after you service the fusing unit.

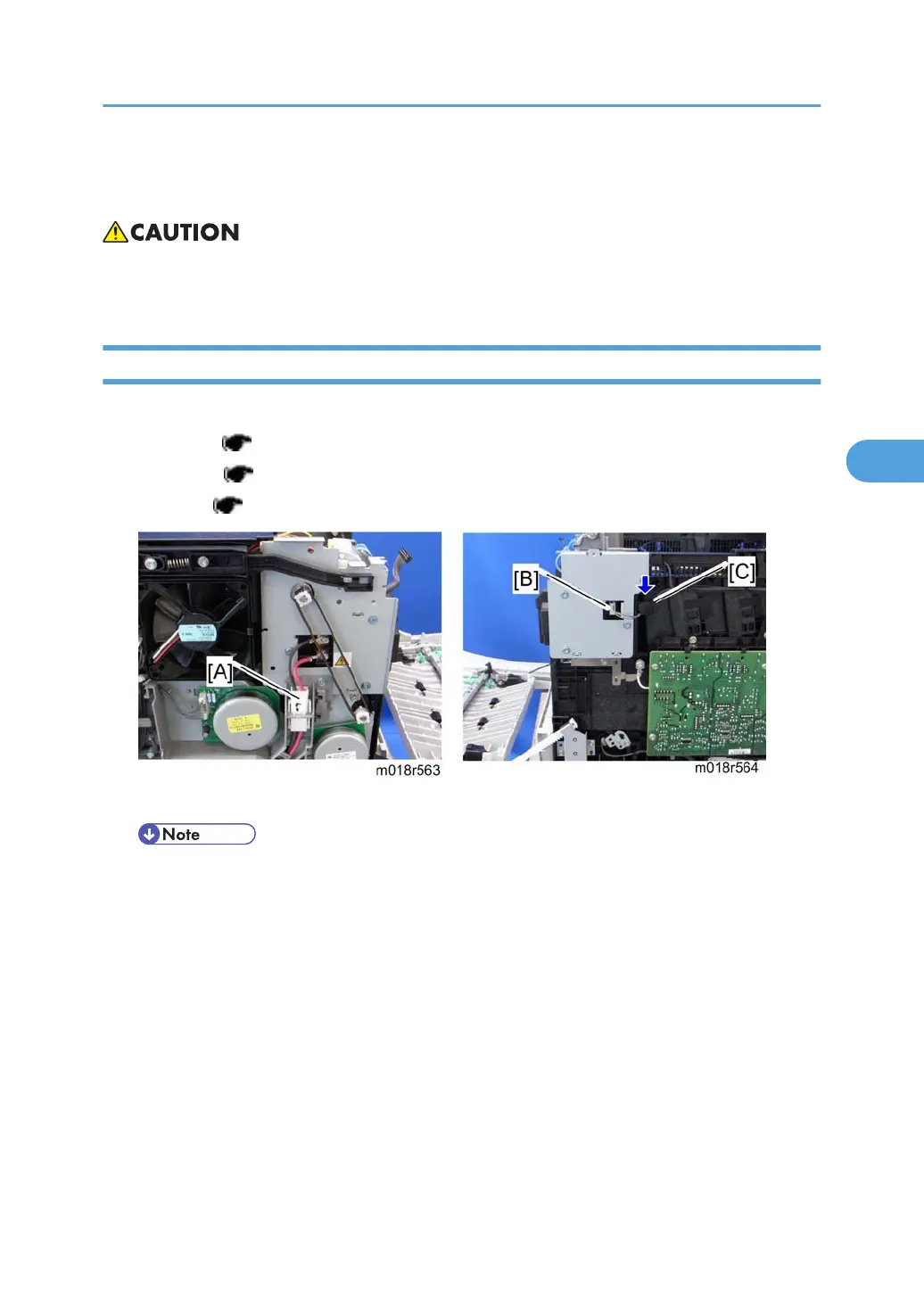

Fusing Unit
1. Open the front cover.
2. Rear cover ( p.23)
3. Right cover ( p.25)
4. Left cover ( p.25)
5. Disconnect the connectors [A] [B] (hook).
• The sponge [C] clamps the harness. Install this sponge in the same position after reinstalling the
fusing unit.
Image Fusing
53
4
