Ricoh Aficio SP C231N User Manual

Image Transfer

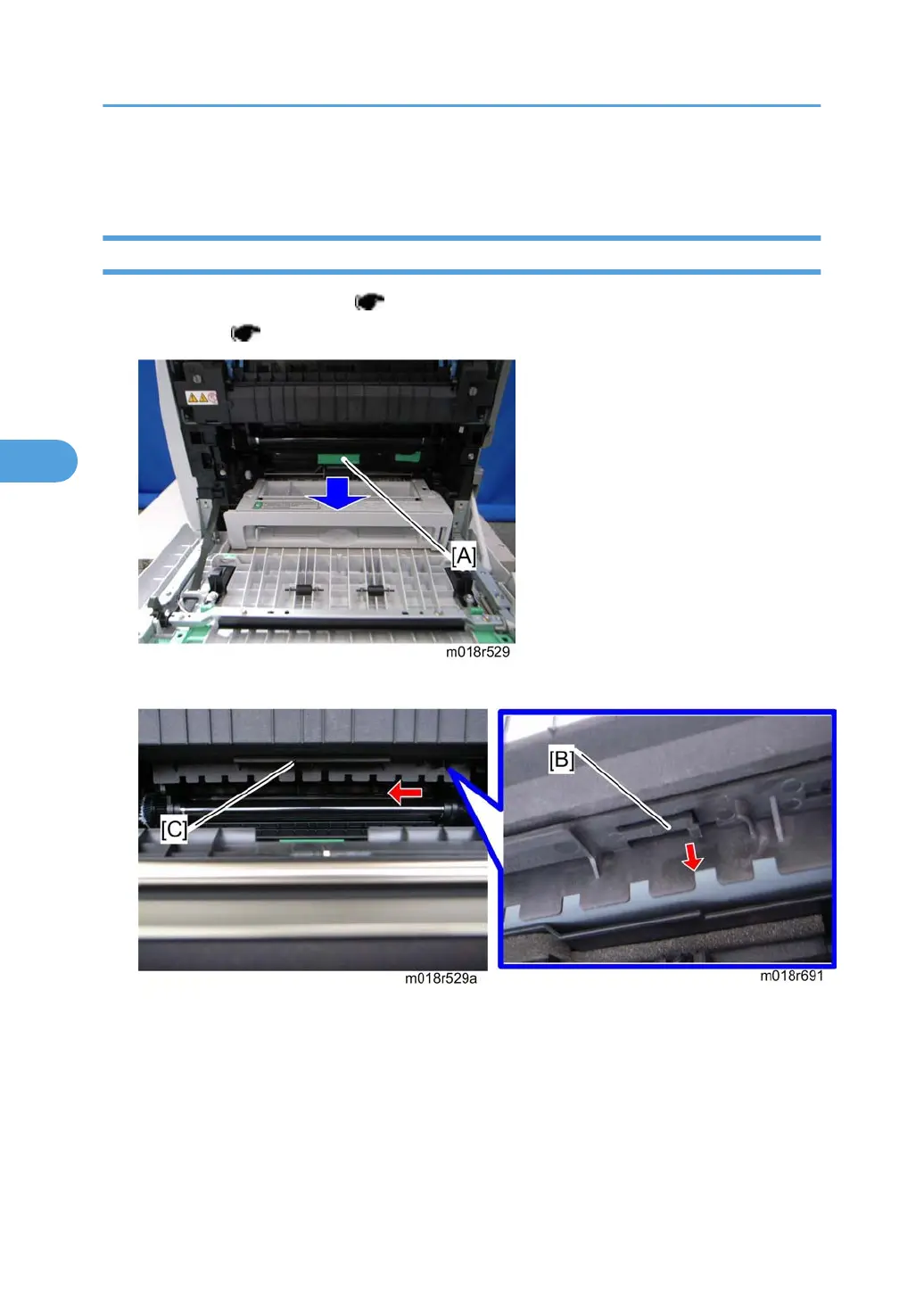

Image Transfer Belt Unit
1. Remove all the AIO cartridges ( p.33).
2. Transfer unit ( p.48)
3. Pull out the waste toner bottle [A].
4. Release the hook [B] under the guide plate.
5. Move the guide plate [C] underneath the fusing unit to the left, and then remove it.
4. Replacement and Adjustment
38
4
