4.

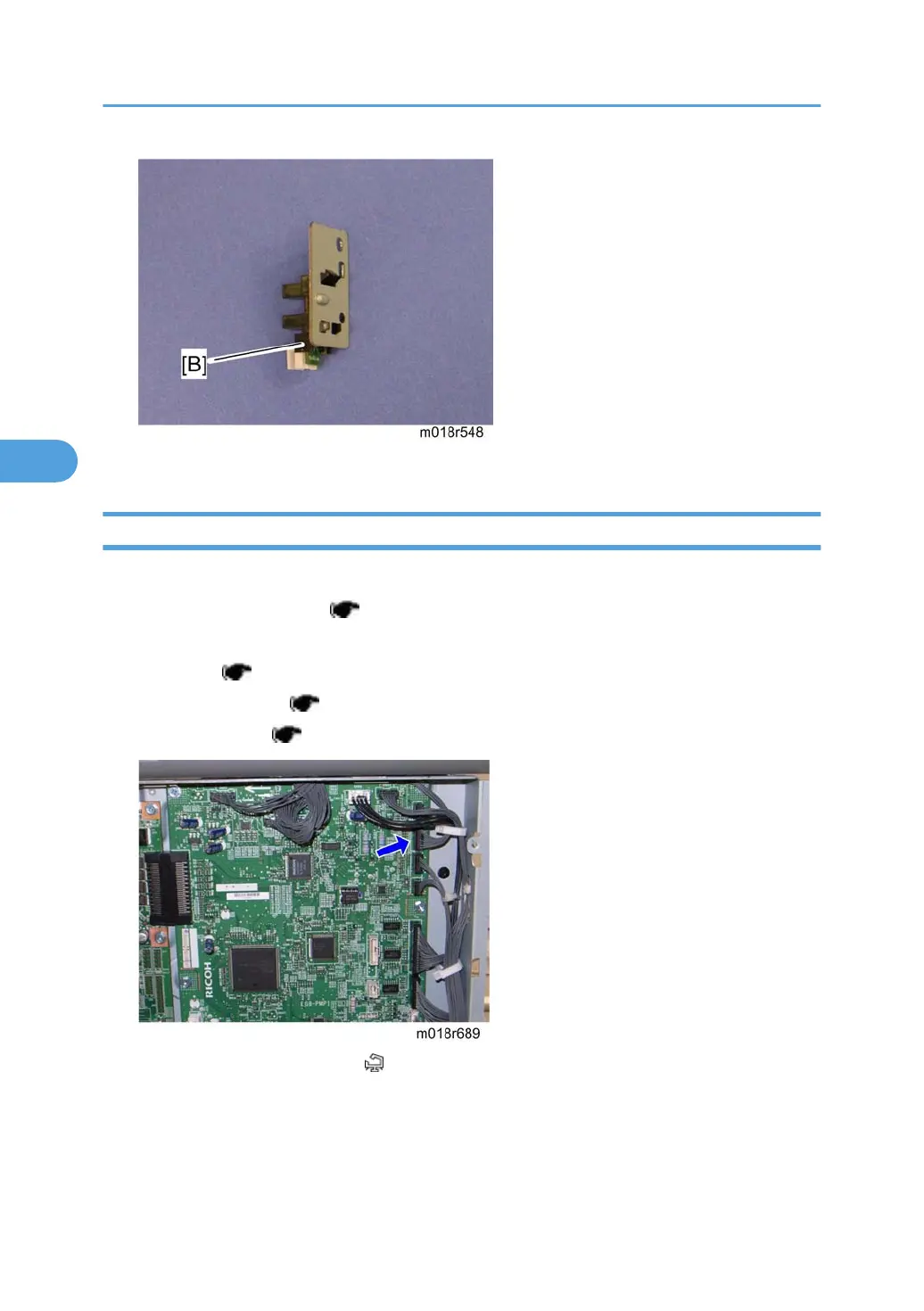

ITB contact sensor [B] (hooks)
TM (Toner Mark) Sensor Base
1.
Open the top cover.
2.
Remove all AIO cartridges (
p.33).
3.
Slide the ITB unit to the front side or remove it.
4.
Rear cover (
p.25)
5.
Controller box cover (
p.64)
6.
Controller bracket (
p.65)
7.
Disconnect CN306 on the EGB (
x 1).
4. Replacement and Adjustment
44
4
45
47
Table of Contents
Default Chapter
3
Safety Notices
3
Important Safety Notices
3
Laser Safety
4
Symbols, Abbreviations and Trademarks
5
Trademarks
5
Table of Contents
6
1 Product Information
9
Specifications
9
Machine Overview
10
Component Layout
10
Paper Path
11
Drive Layout
12
Machine Configuration
14
Guidance for those Who Are Familiar with Predecessor Products
15
2 Installation
17
Installation Requirements
17
Environment
17
Machine Level
18
Machine Space Requirement
18
Power Requirements
18
Installation Procedure
19
3 Preventive Maintenance
21
4 Replacement and Adjustment
23
Before You Start
23
Special Tools
24
Exterior Covers
25
Rear Cover
25
Operation Panel
26
Right Cover
27
Left Cover
27
Front Cover Unit
28
Laser Optics
30
Caution Decal Location
30
Laser Optics Housing Unit
30
AIO Cartridge
35
AIO Cartridge (All in One Cartridge)
35
Black AIO Motor
35
Color AIO Motor
38
Image Transfer
40
Image Transfer Belt Unit
40
ITB (Image Transfer Belt) Cleaning Unit
41
Agitator Motor
42
ITB (Image Transfer Belt) Contact Motor
44
ITB (Image Transfer Belt) Contact Sensor
45
TM (Toner Mark) Sensor Base
46
Waste Toner Bottle Set Sensor
47
Waste Toner Overflow Sensor
48
Paper Transfer
50
Transfer Unit
50
Transfer Roller
50
Registration Roller
52
Registration Sensor
53
Registration Clutch
53
Image Fusing
55
Fusing Unit
55
Fusing Lamp
56
Transport/Fusing Motor
57
Paper Feed
59
Paper Feed Clutch
59
Paper Feed Roller
59
Separation Pad
60
Paper End Sensor
61
Paper Exit
63
Paper Exit Roller
63
Paper Exit Sensor
64
Electrical Components
66
Controller Board
66
EGB (Engine Board)
67
Interlock Switches
69
Fusing Fan Motor
69
LSU Fan Motor
70
ID Chip Board
71
Psu
72
High Voltage Power Supply Board
74
Temperature/Humidity Sensor
75
Duplex Motor (M036 Only)
75
Eeprom
76
5 System Maintenance Reference
79
Service Program
79
Overview
79
Configuration and Test Page Information
80
Overview
80
Error Log
81
Counter and Coverage
82
Firmware Updating
84
Printer Model
84
Boot Loader Firmware
88
6 Troubleshooting
89
Troubleshooting Guide
89
Image Problems
90
Overview
90
Checking a Sample Printout
90
Index
93
Appendix: Specifications
97
Appendix: Preventive Maintenance
103
Appendix: Troubleshooting Guide
105
Appendix: SP Mode Tables
119
Appendix: Machine Swap
149
