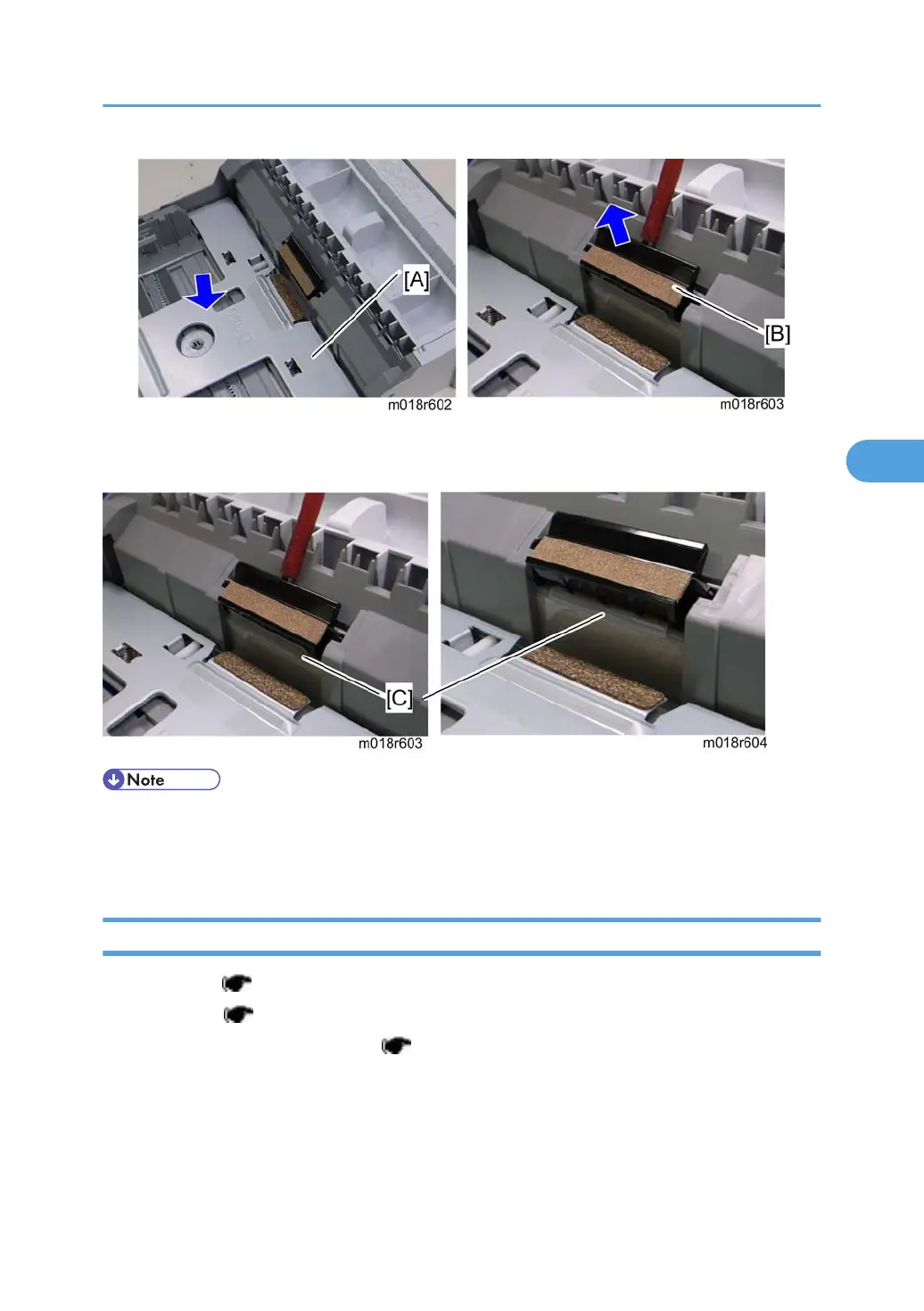

2. Push down the bottom plate [A].
3. Separation pad [B] (hooks, spring x 1)
• When reinstalling the separation pad, make sure that the mylar [C] is not placed under the separation
pad. The right side image above shows incorrect installation.
Paper End Sensor
1. Rear cover ( p.23)
2. Right cover ( p.25)
3. High voltage power supply board ( p.72)
Paper Feed
59
