LASER UNIT
SM 3-13 G065
Replacement
and
Adjustment

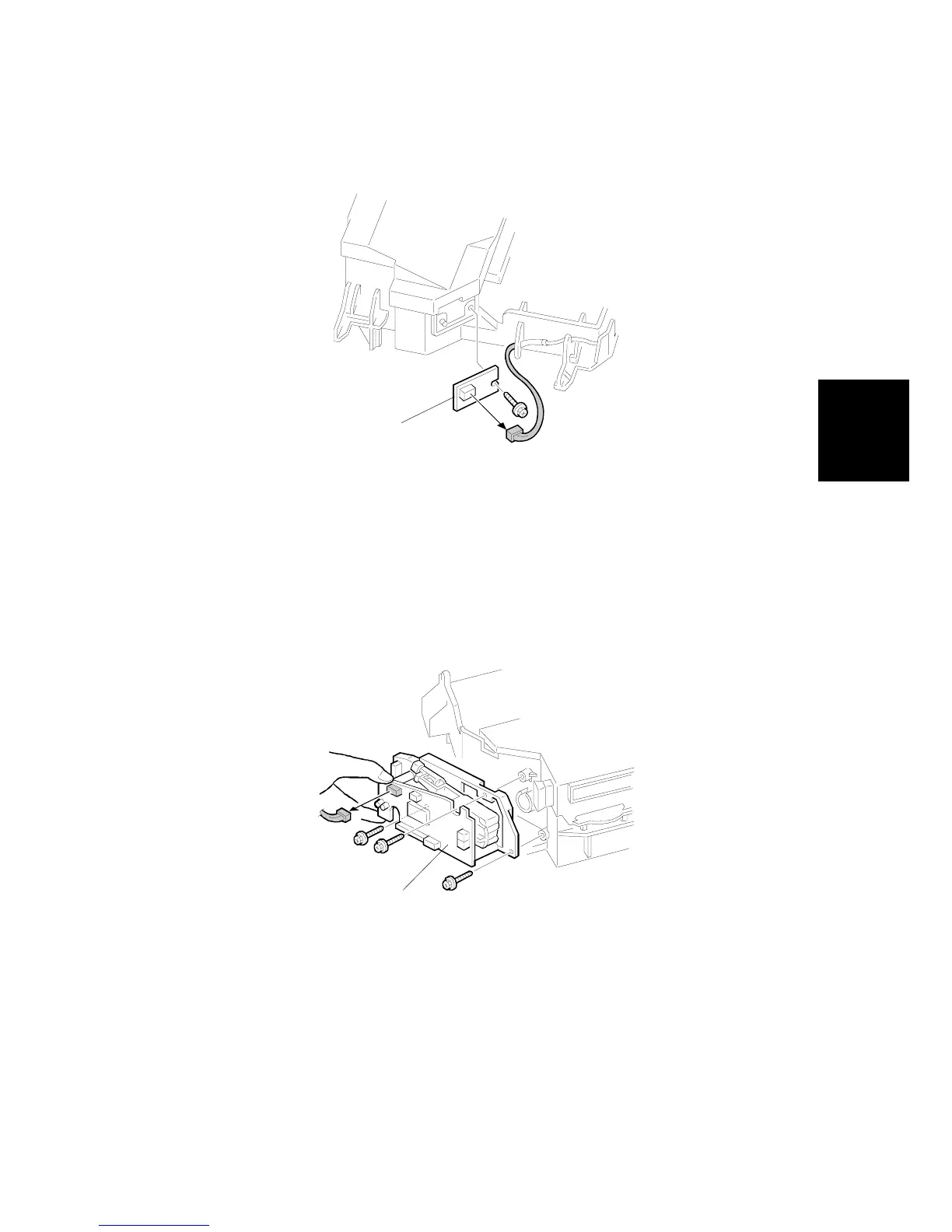

3.1.4 LASER SYNCHRONIZATION DETECTOR
1. Laser unit (☛ 3.9.2)
2. Laser synchronization detector [A] (! x 1, " x 1).
3.1.5 LD UNIT
1. Laser unit (☛ 3.9.2)
2. LD unit [A] (! x 3, " x 1)
NOTE: To avoid damaging the LD board, hold it securely when disconnecting
the connectors. Hold the laser unit casing.
3. After replacing the LD board, perform SP2109 to adjust the laser beam pitch
(described on the next page).
G065R206.WMF
G065R513.WMF
[A]
[A]
