PCDU
G065 3-18 SM
3.10.4 CHARGE ROLLER AND CLEANING ROLLER
1. Remove the drum. (☛ 3.10.2)
2. Two snap rings [A] (# x 2)
3. Charge roller holder [B]
4. Charge roller [C]
NOTE: Do not touch the charge roller.
5. Cleaning roller [D].
6. SP Adjustment:
Charge Roller Bias Adjustment
2001-01
Set to the standard value
(–1,480 V) to ensure
carrier is not attracted to
the drum.
Image Transfer Current - Image Face 2301 01
Image Transfer Current - Image Back 2301 02
Image Transfer Current - Lead Edge Face 2301 03
Image Transfer Current - Image Face By-pass 2301 04
Set to the default
settings.

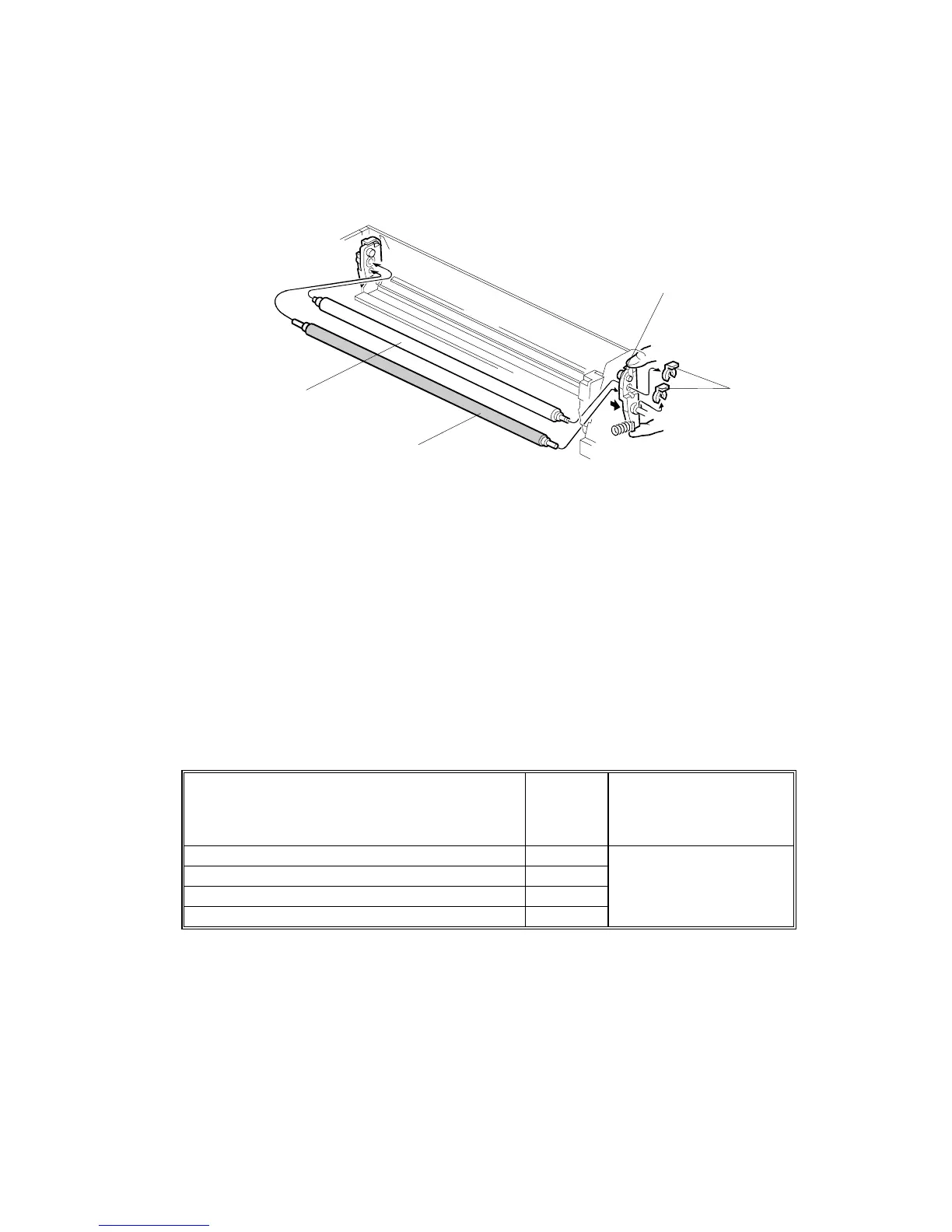

G065R500.WMF
[B]
[C]
[D]
[A]
