Parallel Cable Connection
The type of cable required varies depending on the computer you are using. Make sure to use the interface
cable compliant with your computer.
• For users outside the United States of America: properly shielded and grounded cables and
connectors must be used for connections to a host computer (and/or peripheral) in order to meet
emission limits.
• For users in the United States of America: properly shielded and grounded cables and connectors
must be used for connections to a host computer (and/or peripheral) in order to meet FCC emission
limits.
• The parallel interface cable is not supplied with the printer.
• The printer's parallel connection is a standard bidirectional interface that requires an IEEE 1284-
compliant half pitch 36-pin parallel cable and host computer parallel port.
• Use shielded interface cable. Unshielded cables create electromagnetic interference.
1. Turn off the printer and computer.

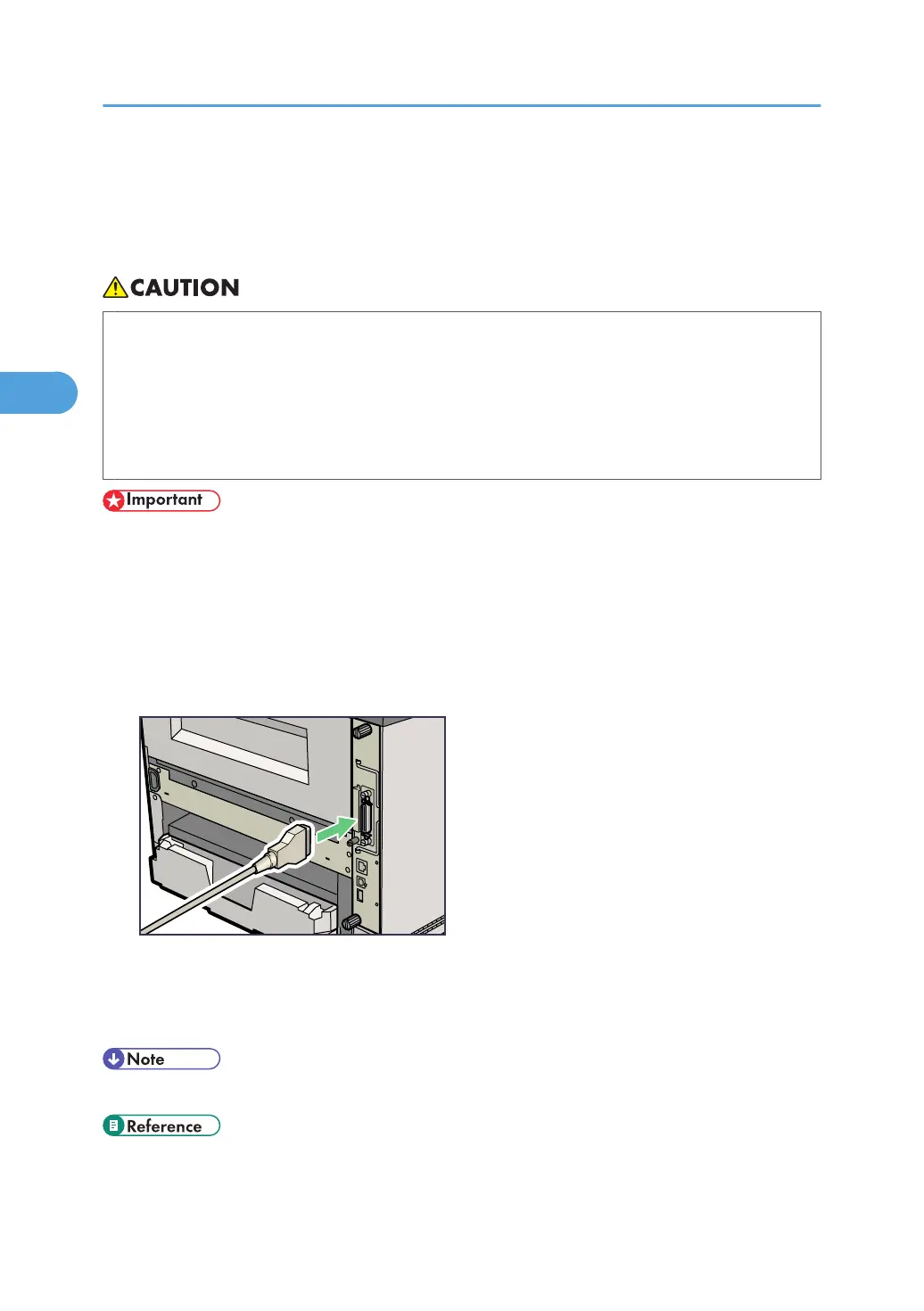

2. Connect the interface cable to the IEEE 1284 interface board.
3. Connect the other end of the interface cable to your computer, and then secure the cable.
The printer is now connected to the computer. Install the printer driver. For details, see "Preparation
for Printing", Software Guide.
• For details about attaching the 1284 interface board, see "Installing the IEEE 1284 Interface Board".
• "Printing with Parallel Connection", Software Guide.
• p.43 "Installing the Interface Units"
3. Connecting the Printer Cables
62
