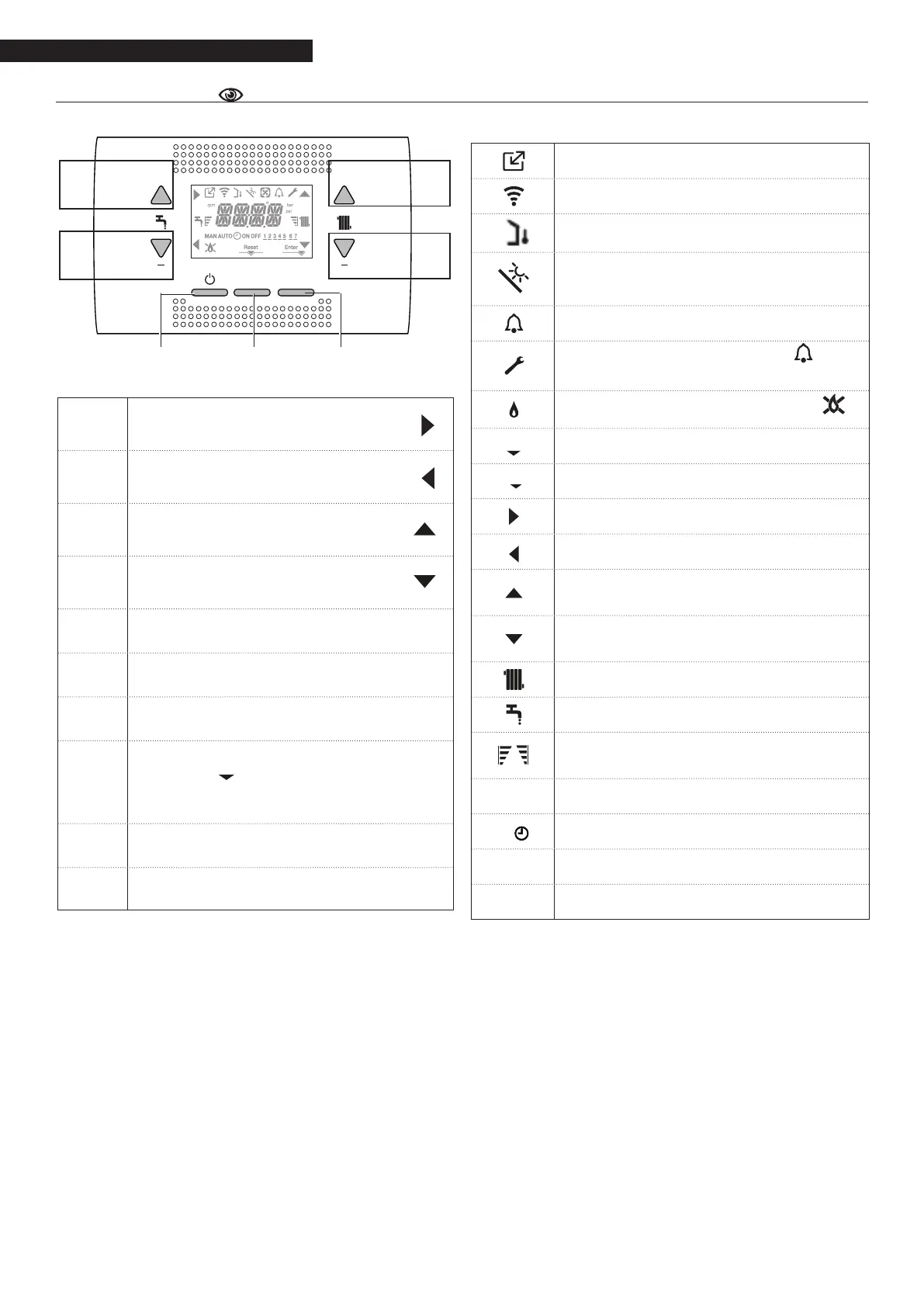

1.12 Control panel
A
Normally used to increase the DHW
temperature value, but when the arrow is
highlighted it acts as a conrmation button
B
Normally used to decrease the DHW
temperature value, but when the arrow is
highlighted it acts as a back/annul button
C
Normally used to increase the heating water
temperature value, but when the arrow is
highlighted it allows you to navigate menu P1
D
Normally used to decrease the heating water
temperature value, but when the arrow is
highlighted it allows you to navigate menu P1
A+C
Acces s to the clock setting menu (see paragraph
“3.2 Programming the boiler”)
1
Used to modify the boiler operating status
(OFF, SUMMER and WINTER)
2
Used to reset the alarm status, or to interrupt
the venting cycle
3
Used to access the INFO menus and menu P1.
When the
Enter
icon appears on the display,
this button has an ENTER function and is used
to conrm the value set while programming a
technical parameter
1+3
Button lock and release
2+3
Used when the boiler is OFF, to activate the
ue gas analysis function (CO)
Indicates the connection to a remote device
(OT or RS485)
lndicates the connection to a wi- device
Indicates the presence of an outdoor tem-
perature sensor
Indicates the activation of special DHW
functions, or the presence of a solar thermal
management system
Lights up if an alarm is triggered
Lights up along with the icon in the
event of a fault (apart from ame and wa-
ter alarms)
Indicates the presence of a ame ( in
the event of a ame lockout)
Reset
Lights up f or alarms requiring a manual reset
by the operator
Enter
Lights up when conrmation is required
When this icon is active, the “conrm”
function of button A is active
When this icon is active, the “back/annul”
function of button B is active
When this icon is active, the user can
navigate the menu or increase the value of
the selected parameter
When this icon is active, the user can
navigate the menu or decrease the value of
the selected parameter
Lights up if heating mode is active; ashes
with a heating request in progress
Lights up if DHW mode is active; ashes
with a DHW request in progress
Indicate the setpoint dened (1
notch=minimum value, 4 notches=maximum
value)
1 2 3 4 5 6 7
Indicate the days of the week
AUTO ON
NOT AVAILABLE ON THIS MODEL
MAN ON NOT AVAILABLE ON THIS MODEL
MAN OFF NOT AVAILABLE ON THIS MODEL
+ +
RESET MENU
A C
1 2 3
B
D
9
The DHW function is only shown on the display in cases B and C (see paragraph “1.3 Boiler description”).
The control panel acts as a machine interface, displaying the system settings and providing access to the parame-
ters.
The conguration MENU is organised with a multi-level tree structure. An access level has been xed for each sub-
menu: USER level always available; TECHNICAL level protected by means of a password.
Below is a summary of the SETTINGS MENU tree structure.
Some of the information might not be available depending on the access level, machine
status or system conguration.
