COMMISSIONING
45

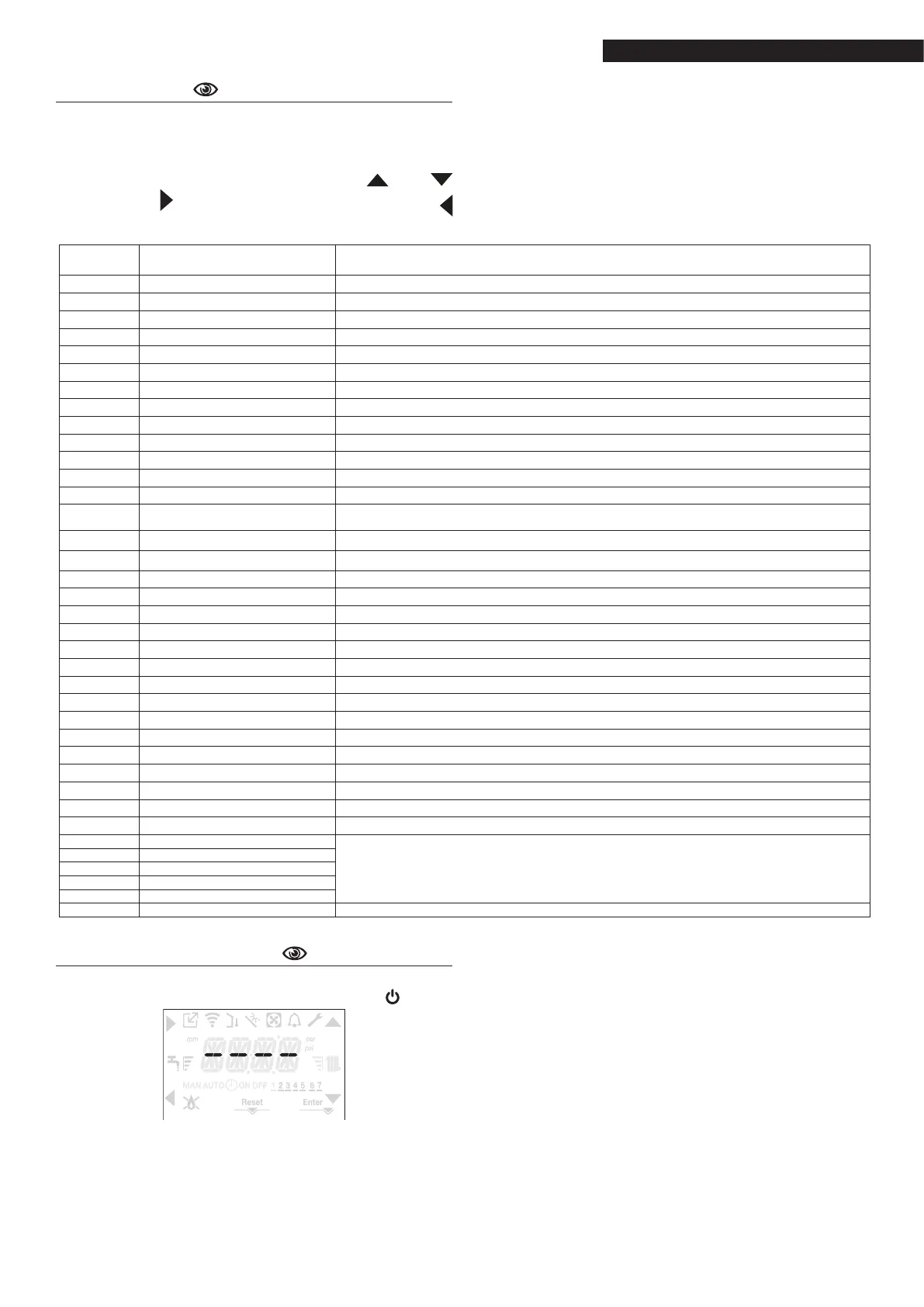

3.20 INFO menu
Press button 3 from the initial display screen to see a
series of information items relating to boiler operation,
listed according to the parameter name and value.
To switch between parameters, press the and
buttons. Press to see the selected parameter; press
to return to the main screen.
3.21 Temporary switch-off
In the event of temporary absences (weekends, short
breaks, etc.) set the status of the boiler to OFF .
The electricity supply and fuel supply remain active, so
the system is protected by:
heating anti-freeze: this function is activated if the
temperature measured by the ow sensor drops be-
low 5°C. A heat request is generated in this phase,
with burner ignition at minimum output and main-
tained at this level until the delivery water tempera-
ture reaches 35°C;
DHW anti-freeze (if water tank with probe): this
function is activated if the temperature measured by
the water tank probe drops below 5°C. A heat request
is generated in this phase, with burner ignition at
minimum output and maintained at this level until
the delivery water temperature reaches 55°C.
9
The activation of the ANTI-FREEZE function is sig-
nalled by a sliding message on the interface dis-
play: AF1 (DHW ANTI-FREEZE IN PROGRESS) or AF2
(HEATING ANTI-FREEZE IN PROGRESS), depending on
the situation.
circulator anti-blocking: the circulator activates every
24 hours of stoppage for 30 seconds.
PARAMETER
NAME
DESCRIPTION
I001 Screed heater hours Number of hours of screed heater operation (when function in progress)
I002 Flow sensor Boiler fl ow sensor value
I003 Return probe Boiler return temperature sensor value
I004 Domestic hot water probe Value of high storage tank probe
I006 Low storage tank probe Value of low storage tank probe (if a solar storage cylinder is installed)
I007
Collector temp
Solar collector probe value (case C and solar system present)
I008 Flue gas probe Flue gas probe value
I009 Outdoor temperature sensor Instantaneous outdoor temperature sensor value
I010
External temp. for temperature control Filtered outdoor temperature sensor value used in the temperature control algorithm to calculate the heating setpoint
I011 DHW fl ow rate DHW setpoint only with OT+ connection
I012 Fan rotations Number of fan rotations (rpm)
I013 Flow sensor (main zone) Main zone fl ow sensor value (when P4.12 = 1)
I014 Flow sensor (zone 1) Zone 1 fl ow sensor value (when 1 P4.23 = 1)
I015 Flue gas probe meter
Number of operating hours of the heat exchanger in “condensing mode” (the values, in thousands, are
visualised/100
I016 Delivery setpoint (main zone) Main zone delivery setpoint
I017 OT+ heating setpoint Heating setpoint sent to the boiler from the OT+ remote control
I018 System pressure System pressure
I019
DHW hours This counter measures the burner “ON” time (fl ame presence) in DHW mode, value expressed in seconds
I020
CH hours Hours burner on in heating
I021
% DHW modulation This counter measures the average modulation percentage (ID17) when burner on in DHW
I022
% CH modulation Average percentage value of modulation with burner on in heating
I023
Average heating fl ow probe Average fl ow probe values with burner on in heating mode
I024 Average DHW fl ow probe Not used if parameter P3.01 = 0
I025
Average heating return probe Average return probe values with burner on in heating mode
I026 Average DHW return probe Not used if parameter P3.01 = 0
I027
Number cycles ON EVG Number of gas valve ON cycles
I028 Ionisation current Instantaneous ionisation current detected by the detection electrode
I029 High effi ciency mode Indicates when the high effi ciency mode is running
I033 Board ID Electronic board identifi cation
I034 Board fw rev Firmware revision of the electronic board
I035 Interface fw rev Firmware revision of the interface
I039 Alarm log 1 (oldest)
List of the last 5 alarms recorded
I040 Alarm log 2
I041 Alarm log 3
I042 Alarm log 4
I043 Alarm log 5 (most recent)
I044 No. of days for CFS Number of days that have elapsed since the CFS signal was activated (i.e. since EXPIRE P7.07 = 0)
