Rigol DS1000B Series Service Guide

RIGOL Chapter 3 Performance Test
DS1000B Service Guide
3-4
USB Device Interface Test
Purpose: Test whether the USB Device interface works normally using the PC
software.
Tools:
 A set of DS1000B series digital oscilloscope
 A PC with USB interface
 A standard USB cable (Type AB)
 Ultrascope for DS1000B series
Steps:
1. Install Ultrascope for DS1000B series
on the PC.
2. Connect the oscilloscope with PC using an USB cable and install the driver
program according to the directions.

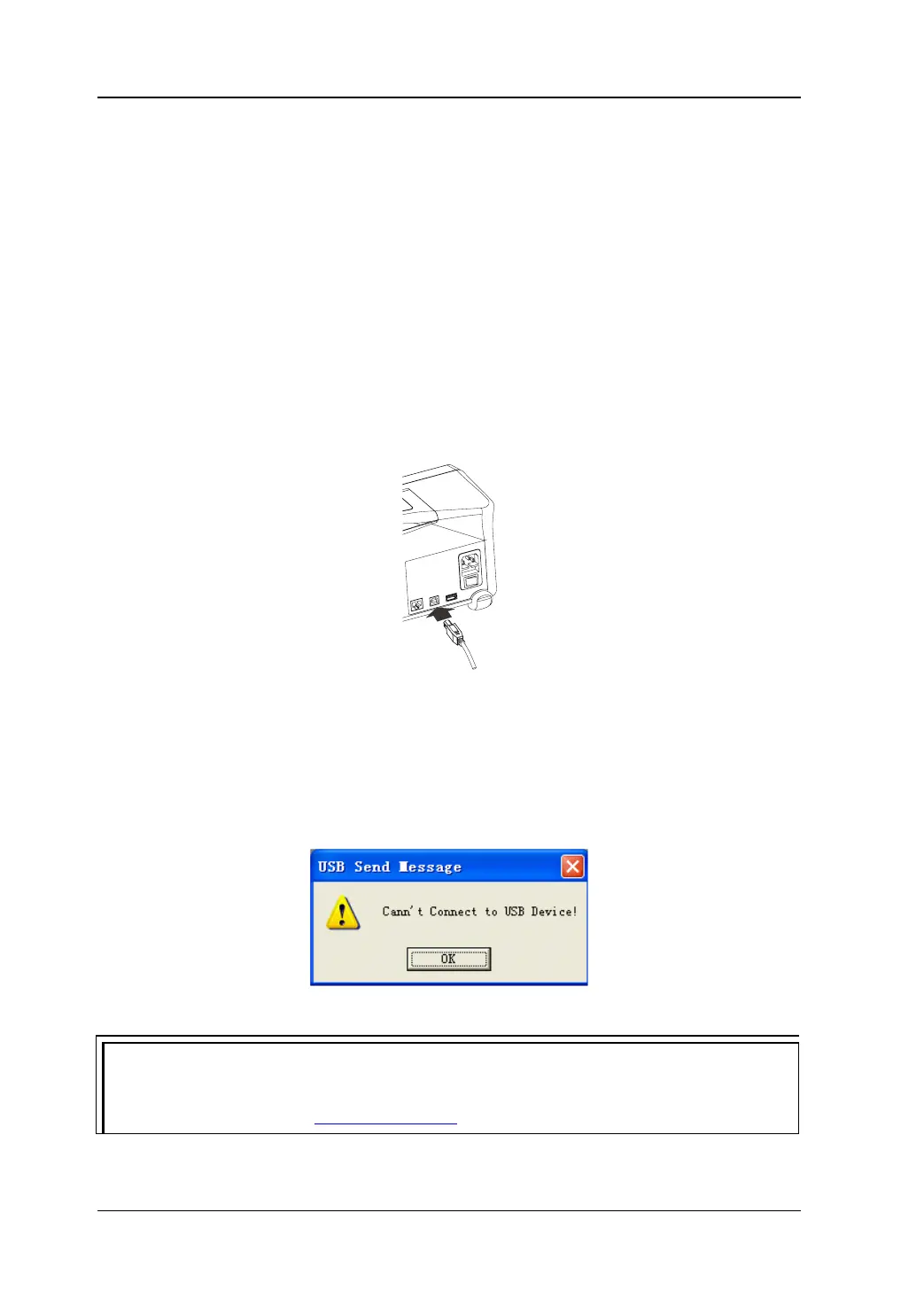

Figure 3-4 USB Device Interface Connection
3. Click Tools  Connect to Oscilloscope. If the connection succeeds, the
corresponding connection status indicator at the upper right corner of the
software will change from red to blue indicating that the USB Device interface
works normally. If the connection fails, the prompt message as shown in the
figure below will be displayed; at this point, you need to check or repair the
interface.
Figure 3-5 USB Device Interface Connection Fails
Tip
For the newest version of Ultrascope for DS1000B Series, please download it from
RIGOL official website (
www.rigolna.com).
