RIGOL Chapter 5 Disassemble and Assemble
DS1000B Service Guide
To Disassemble and Assemble the Rear Metal
Cover and Power Board

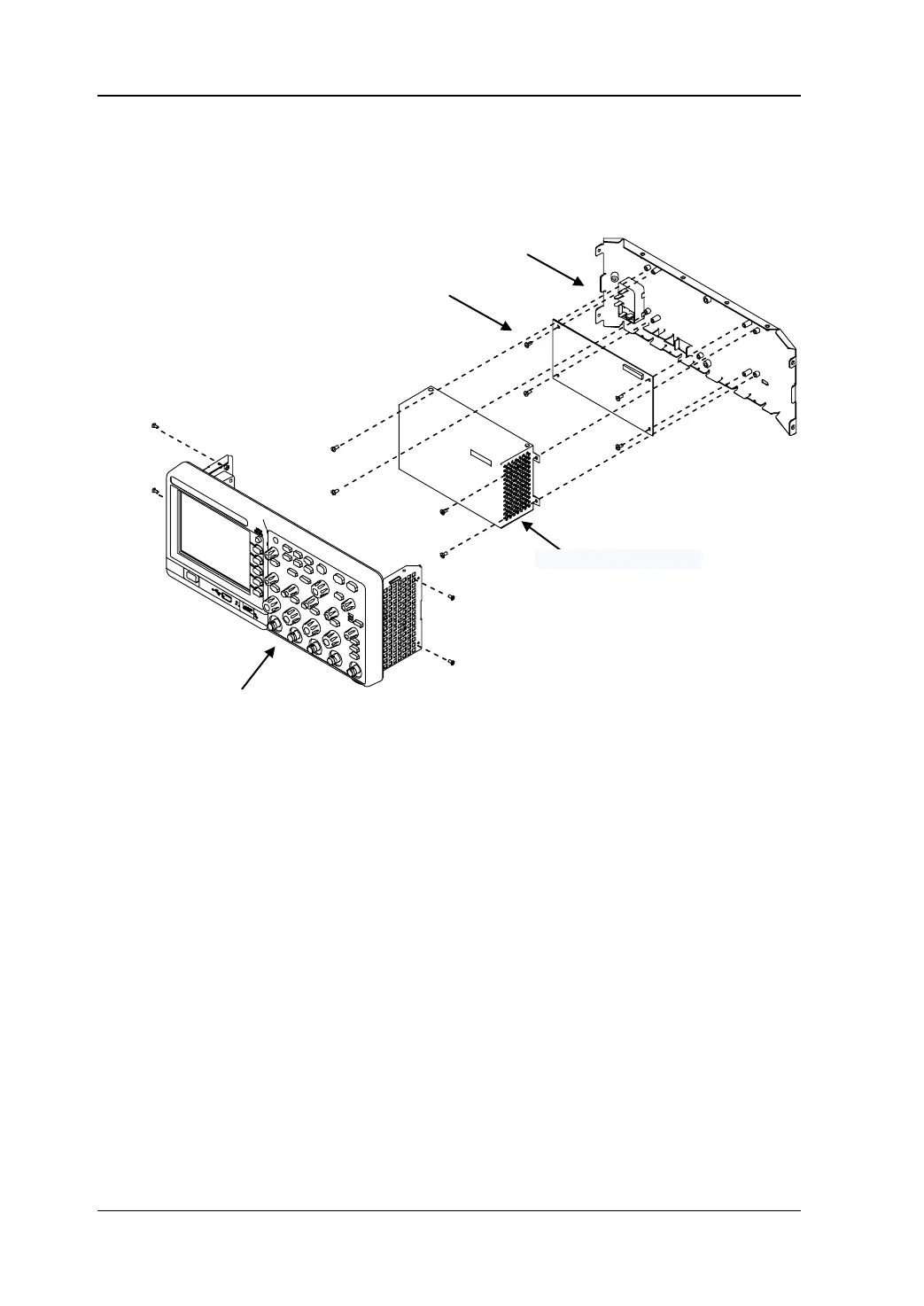

Figure 5-4 To Disassemble and Assemble the Rear Metal Cover and Power Board
Part Explanations:
④ 4 screws (M3*6 countersunk head torx machine screw) fixing the rear cover and
chassis.
⑤ 5 screws (M3*6 pan head torx composite machine screw with plain washer) fixing
the power shield cover and rear cover (the positions of the screws are not marked
out in the figure above and please remove them according to their actual
positions).
⑥ 4 screws (M3*6 pan head torx composite machine screw with plain washer) fixing
the power board and rear cover.
Disassemble steps:
1. Remove the 12-pin power cable from the main board.
2. Remove the 4 screws (④) using the screwdriver (T10). Then, remove the rear
cover.
3. Remove the 5 screws (⑤) using the screwdriver (T10). Then, remove the power
shield cover.
