RIGOL Chapter 3 Performance Test
DS1000B Service Guide
3-6
Specification Test
DS1000B series digital oscilloscope includes 3 models (DS1074B, DS1104B and
DS1204B). In this manual, DS1204B is taken as an example to illustrate the
specification test methods. Unless otherwise noted, the introductions are applicable to
the other models.
Purpose: Test whether all the specifications of the oscilloscope are within the
specified range.
Tools:
 A set of DS1000B series oscilloscope
 A set of FLUKE 9500B oscilloscope calibrator and the corresponding accessories

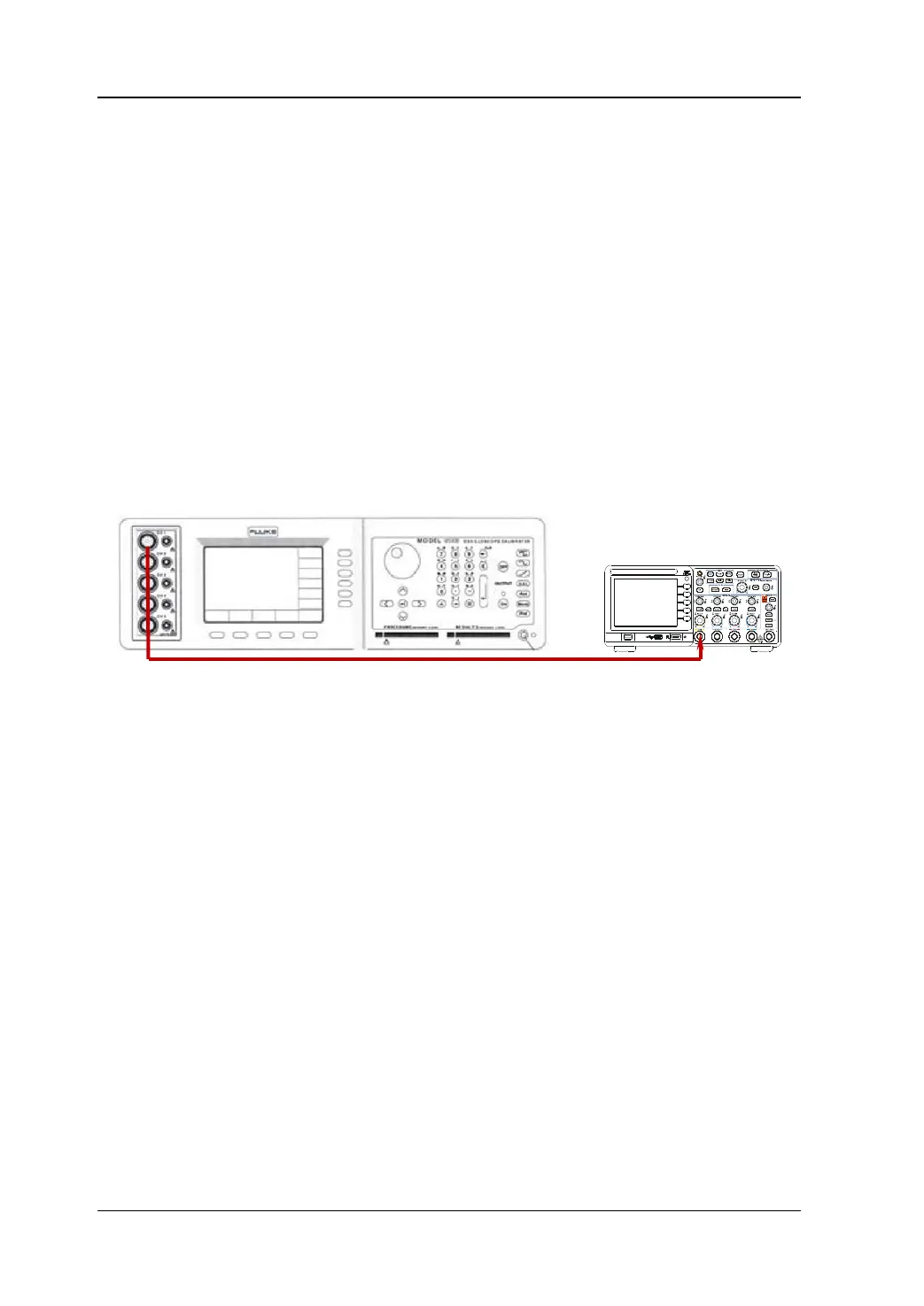

Test Connection Diagram:
Figure 3-8 To Connect the Test Devices
Note:
1. Before performing the specification tests, make sure that the oscilloscope has
passed the self-test and the self-calibration is performed.
2. Before performing any of the following tests, make sure that the oscilloscope has
been warmed up for at least 30 minutes.
3. Before or after performing any of the following tests, restore the instrument to
the factory setting.
Fluke 9500B
DS1000B
