RIGOL Chapter 5 Disassemble and Assemble
DS1000B Service Guide
To Disassemble and Assemble the Interface
Board and Fan

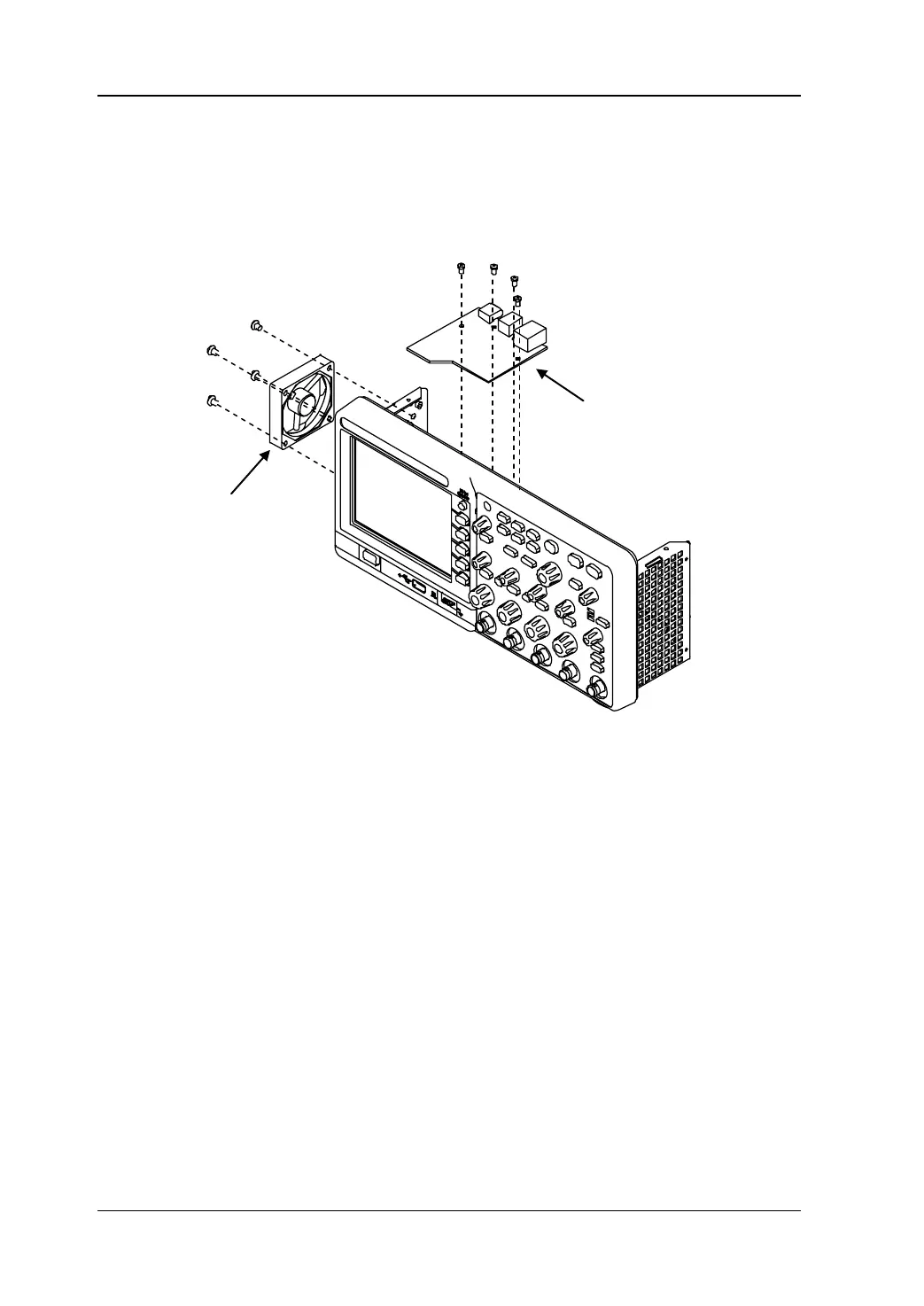

Figure 5-5 To Disassemble and Assemble the Interface Board and Fan
Part Explanations:
⑦ 4 screws (M5*10 countersunk head torx cutting self-tapping screw) fixing the fan.
⑧ 4 screws (M3*6 pan head torx composite machine screw with plain washer) fixing
the interface board.
Disassemble steps:
1. Remove the fan cable from the corresponding port.
2. Remove the 4 screws (⑦) fixing the fan using the screwdriver (T10). Then,
remove the fan.
3. Remove the interface board cable connected to the main board.
4. Remove the 4 screws (⑧) fixing the interface board using the screwdriver (T10).
Then, remove the interface board.
