Rockwell Automation Allen-Bradley Ultra3000 Integration Manual

Publication 2098-IN005C-EN-P — March 2008
Interconnect Diagrams 119

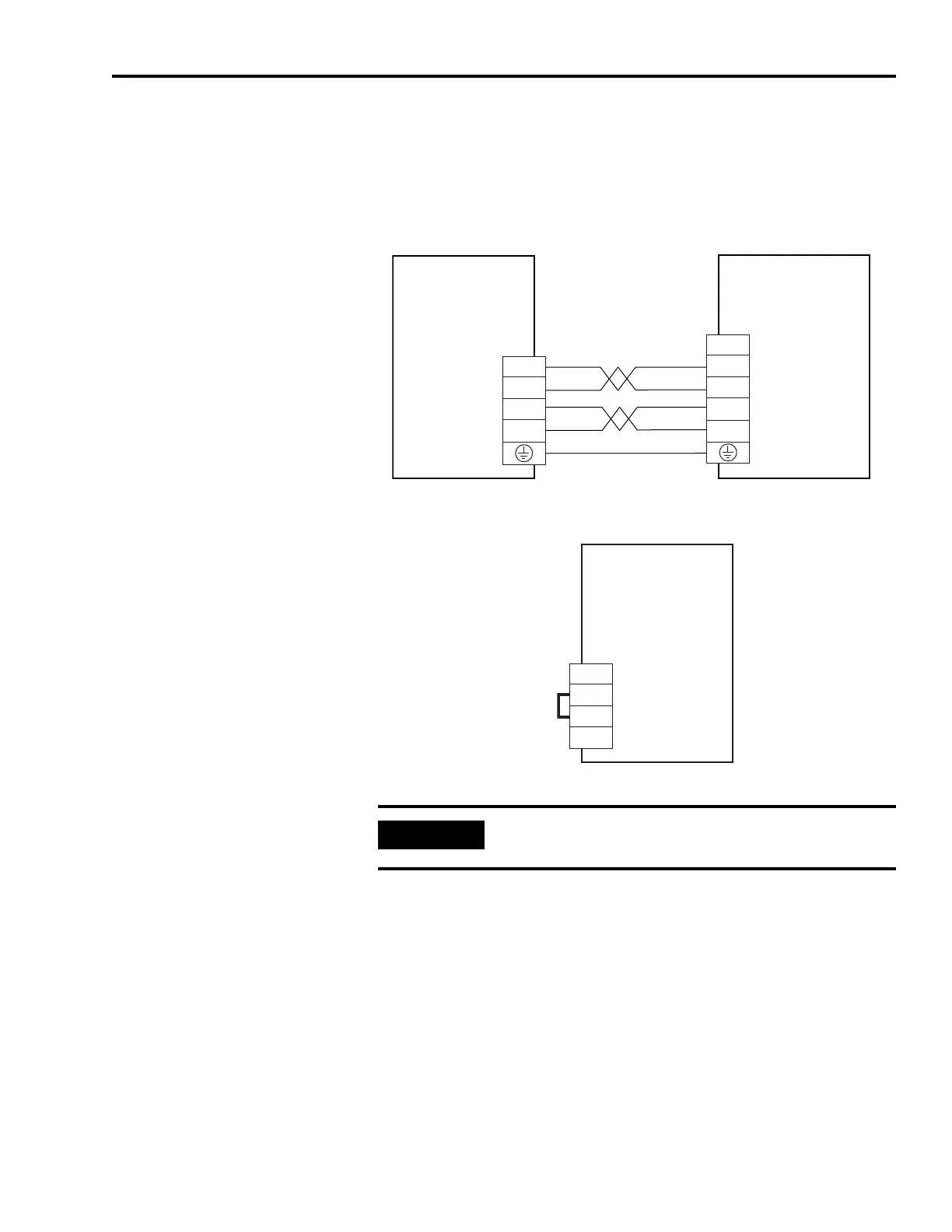

Shunt Module Interconnect Diagrams
This section contains the interconnect diagrams for Ultra3000 drives
with active and passive shunt modules.
External Active Shunt Module Interconnect Diagram
Internal Passive Shunt Interconnect Diagram (default configuration)
TB1
DC+
DC-
L1
L2/N
DC+
DC-
L1
L2/N
2098-DSD-005x-xx,
2098-DSD-010x-xx, and
2098-DSD-020x-xx
Ultra3000
Digital Servo Drives
2090-UCSR-A300
External Active
Shunt Module
DC Bus Connections
for Active Shunt Module
AC Input Power
Connections
TB2
1
2
3
2098-DSD-030x-xx,
2098-DSD-075x-xx,
2098-DSD-150x-xx,
2098-DSD-HVxxx-xx, and
2098-DSD-HVxxxX-xx
Ultra3000
Digital Servo Drives
Internal Passive Shunt
Resistor Connections
IMPORTANT
Internal shunt operation is only present on the drives listed in
the figure above.
