Publication 2098-IN005C-EN-P — March 2008
72 Commissioning Your Ultra3000 Drive
Configuring Your Logix SERCOS interface Module
This procedure assumes that you have configured the Ultra3000-SE
communication rate.
For help using RSLogix 5000 software as it applies to configuring the
ControlLogix, CompactLogix, or SoftLogix SERCOS modules, refer to
Additional Resources on page 8.
Configure Your Logix Controller
Follow these steps to configure your Logix controller.
1. Apply power to your Logix chassis containing the SERCOS
interface module and open your RSLogix 5000 software.
2. From the File menu, choose New.

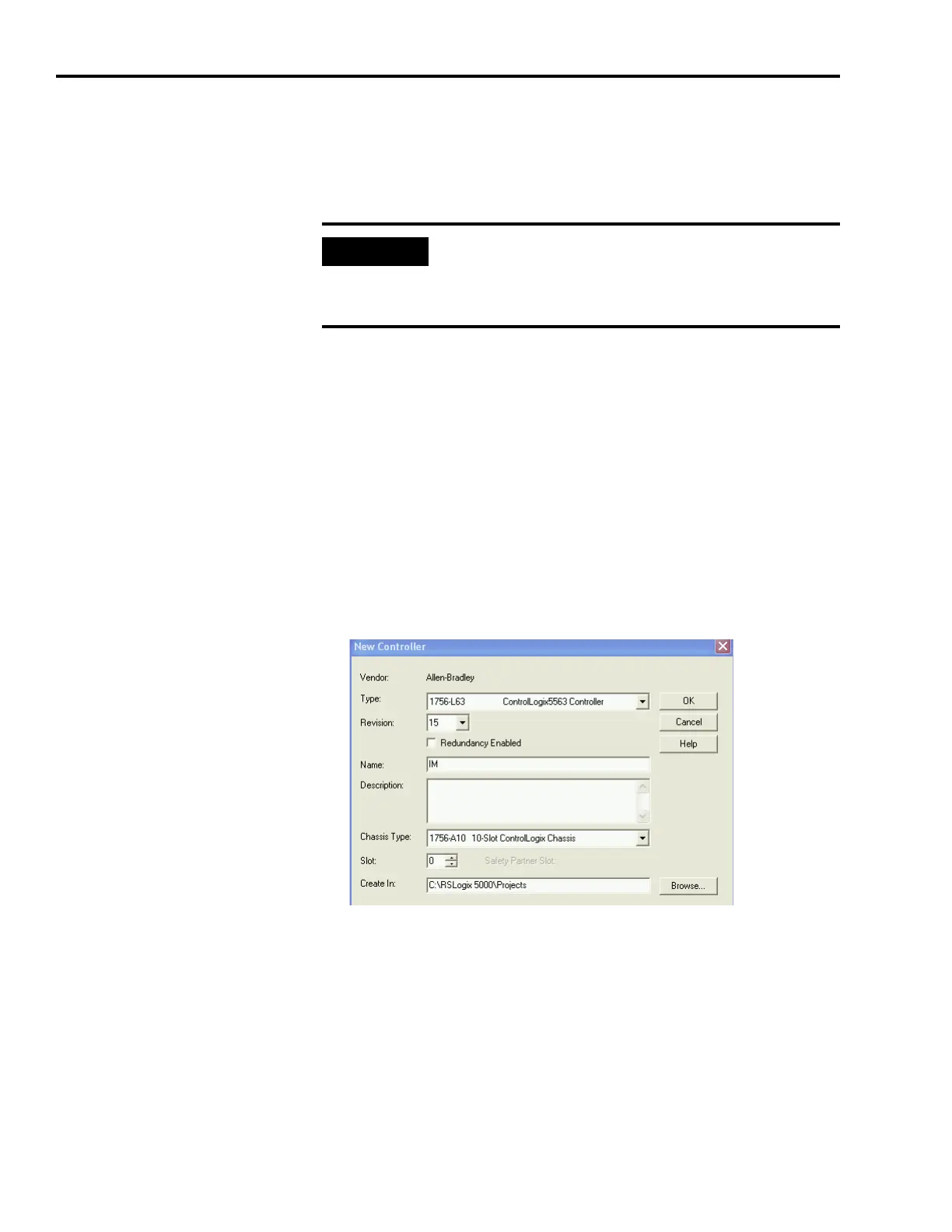

The New Controller dialog opens.
3. Configure the new controller.
a. From the Type pull-down menu, choose your controller.
b. From the Revision pull-down menu, choose your
RSLogix 5000 software version.
c. In the Name box, name your file.
d. From the Chassis Type pull-down menu, choose your Logix
chassis.
e. Enter the Logix processor slot.
In order for the Ultra3000 drive to communicate with the
SERCOS interface module (indicated by the three status
indicators on the module going solid green), your RSLogix 5000
software must be version 11.0 or later.
