Publication 2098-IN005C-EN-P — March 2008
52 Commissioning Your Ultra3000 Drive
Configuring Your Ultra3000
Drive with RSLogix 5000
Software
In this section you will configure your Ultra3000 drive by using
Ultraware software, configure the Logix analog motion module by
using RSLogix 5000 software, and test/tune your axis.
Configure Your Ultra3000 Drive
Follow these steps to configure your Ultra3000 drive.
1. Apply power to your Ultra3000 drive
Refer to the section Apply Power To Your Ultra3000 Drive.
2. Start your Ultraware software and make sure your Ultra3000 drive
is detected.
Refer to the section Detect Your Ultra3000 Drive.
3. Select a motor.
Refer to the section Select a Motor.

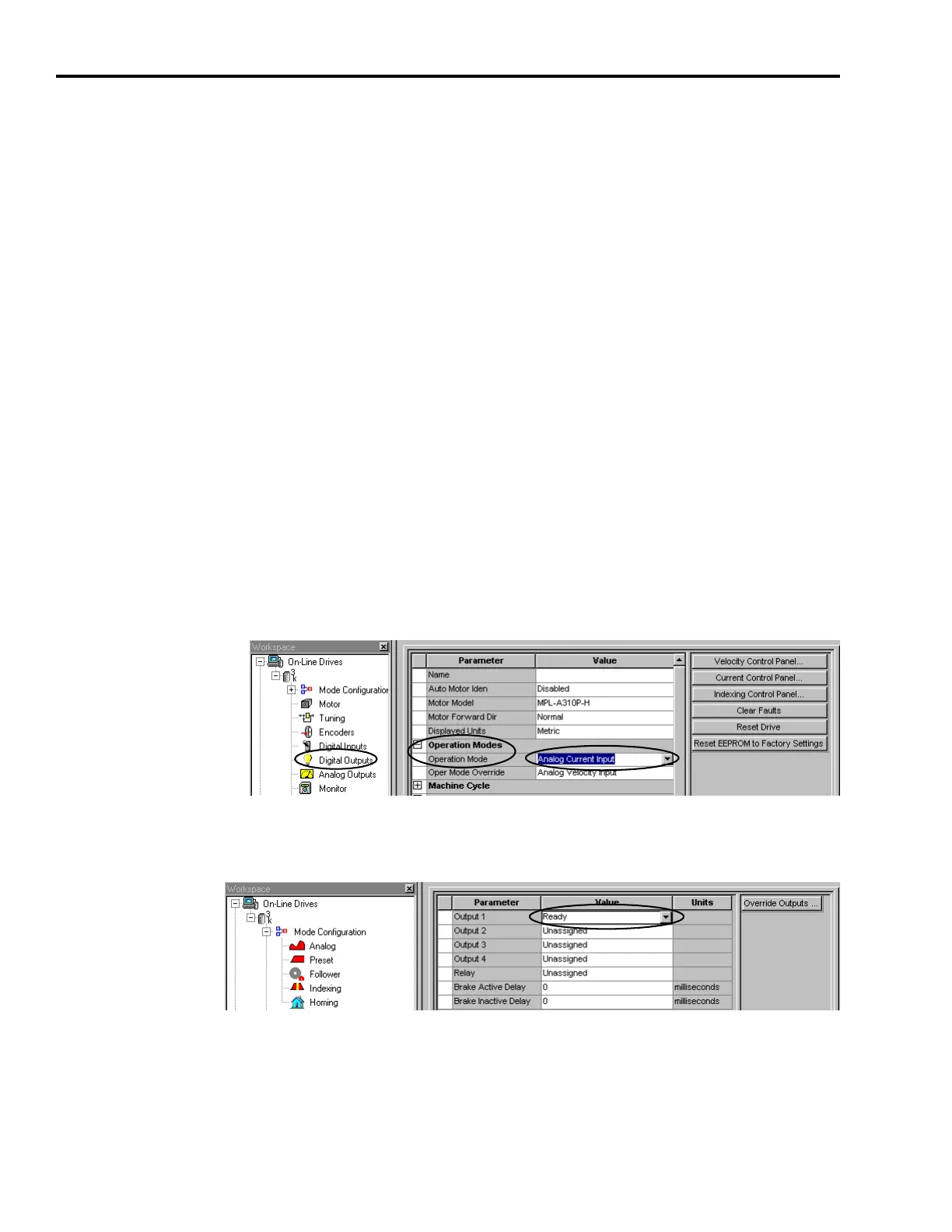

4. Expand Operation Modes in the Drive properties dialog.
5. From the Operation Mode pull-down menu, choose Analog
Current Input.
6. Double-click Digital Outputs.
The Digital Output properties dialog opens.
7. From the Output 1 pull-down menu, choose Ready.
