Incremental Indexing (indexing move)
This procedure assumes you have applied power to your indexing
drive, the Ultraware software is running, the drive is detected, and you
have tested a motor. In this procedure you will run the drive in
Incremental Indexing mode.
Refer to the Ultraware User Manual, publication 2098-UM001
, for
more information on incremental indexing moves.
Follow these steps to set parameters for an incremental indexing
move.

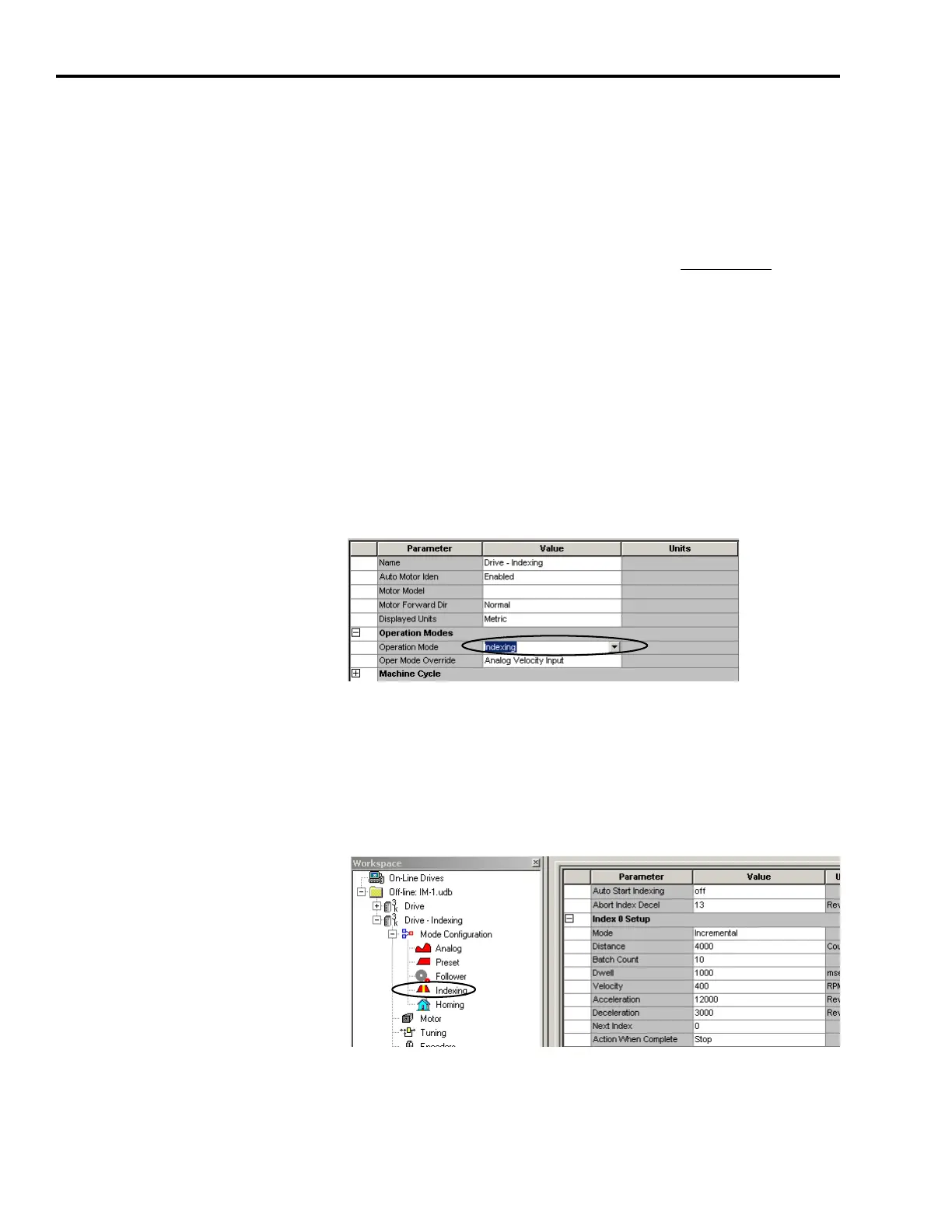

1. Double-click the U3k icon.
The drive properties dialog opens.
2. Expand the Operation Modes parameter.
3. Click the current setting and use the pull-down menu to change
the Operation Mode to Indexing.
4. Close the Drive Branch dialog.
5. Expand the Mode Configuration branch.
6. Double-click Indexing.
7. Enter the Index 0 parameter values.
8. Close the Indexing Parameters dialog.
9. Double-click the Digital Inputs branch.
To Next Page
