Audio Operations

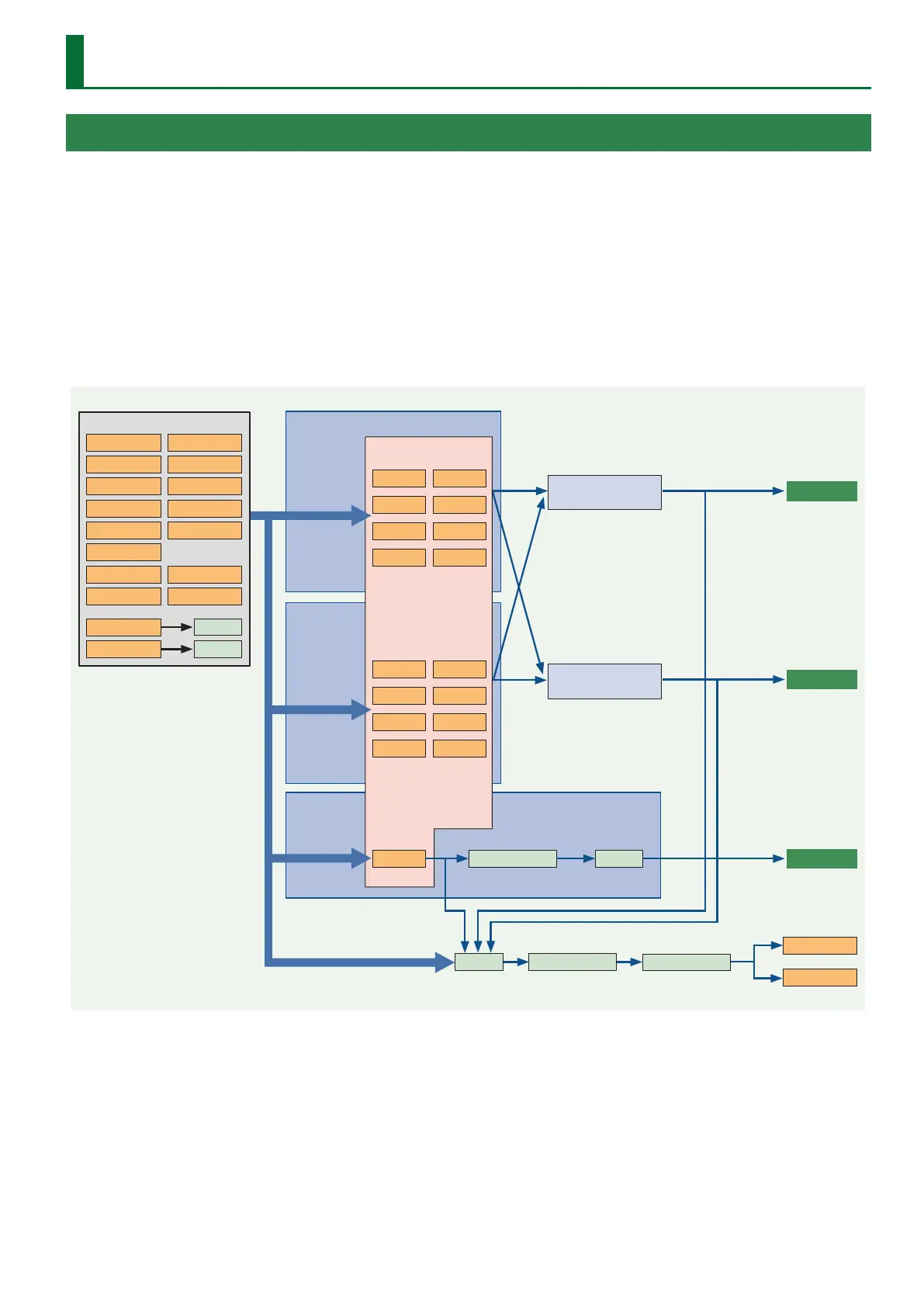

How the Audio Is Congured
On this unit, you can freely assign the audio input from the 12G-SDI IN, HDMI 4K IN, STREAMING, LINE IN and AUDIO IN/OUT to each processing
system, adjust the delay settings and volume and output the audio to 12G-SDI OUT, HDMI 4K OUT, STREAMING, LINE OUT and AUDIO IN/OUT.
The equalizer and mastering eects can be applied to both analog and USB streaming output.
As with the video settings, the audio settings are controlled in “channels,” and you can switch between audio channels at the same time as you
switch video channels.
The input source for audio assigned to each processing system for channels 1–8 are selected in the channel settings (“Channel” 0 ”CH. 1” 0 “CH. 8”
0 “Main Processing” 0 “USB Streaming” 0 “Audio”). When making these assignments, you can also congure the delay and volume.
The output jacks for audio follow the settings in “Output” 0 “SDI” or “HDMI” 0 “Source Processing.”
* If the output destination is “HDMI,” up to eight channels are available.
SDI CH. 1/2
SDI CH. 3/4
SDI CH. 5/6
SDI CH. 7/8
SDI CH. 9/10
SDI CH. 11/12
SDI CH. 13/14
SDI CH. 15/16
HDMI CH. 1/2
HDMI CH. 3/4
HDMI CH. 5/6
HDMI CH. 7/8
HDMI 2CH MIX
TEST TONE
USB CH. 1/2
Analog CH. 1/2
LEVEL
Analog CH. 3/4
LEVEL
Audio Input
Main
Processing
Sub
Processing
Analog CH. 1/2
Analog CH. 3/4
ASSIGN LEVEL, DELAY
USB 2 CH
SDI 16 CH
HDMI 8 CH
Output0SDI0
Source Processing
Output0HDMI0
Source Processing
USB
Streaming
EQ, MASTERING
LEVEL
Channel
CH. 1/2
CH. 3/4
CH. 9/10
CH. 11/12
CH. 5/6
CH. 7/8
CH. 13/14
CH. 15/16
CH. 1/2
CH. 3/4
CH. 9/10
CH. 11/12
CH. 5/6
CH. 7/8
CH. 13/14
CH. 15/16
CH. 1/2
EQ, MASTERING
To Next Page
