26

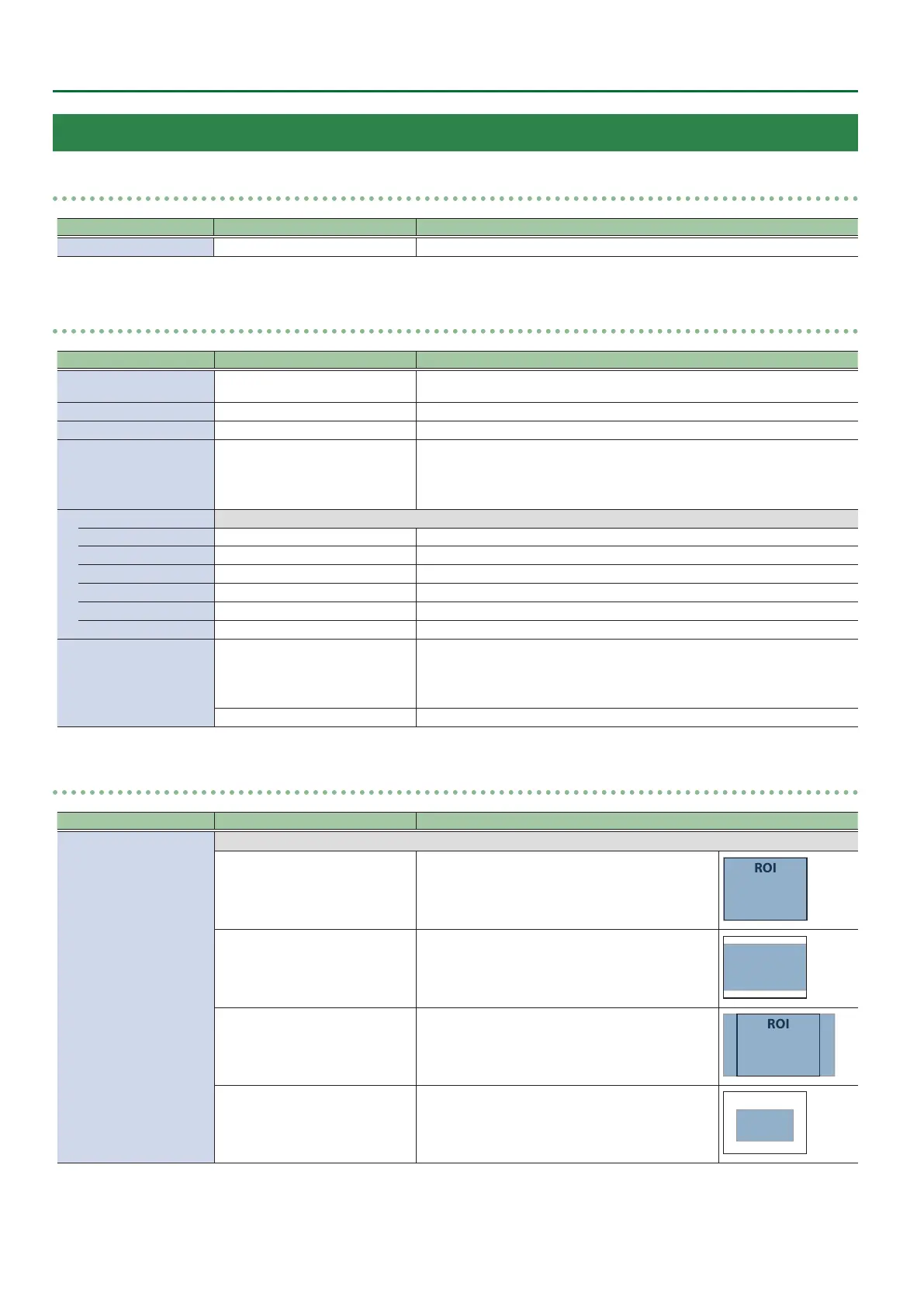

Setup Menu List
Channel
CH. 1–8
0
Source
Menu item (Parameter) Value (Bold: default) Explanation
Source
SDI, HDMI, Pattern Generator Selects the input source.
CH. 1–8
0
Main Processing, Sub Processing
0
Eects
Menu item (Parameter) Value (Bold: default) Explanation
Dynamic Range
Correction
-64–0–+63 Calibrates the dynamic range.
Gamma Correction
-0.30–1.00–3.30 Adjusts the gamma value.
Upscale Interpolation
Nearest-neighbor, Bilinear, Bicubic Sets the method of interpolation when the video is enlarged.
Edge Enhancer
0–15
Adjusts how much the edges of objects in the image are emphasized.
This produces good results when you are sitting back a certain distance from
your LED display.
* The eect diers depending on the “Upscale Interpolation” setting.
Color Correction
Calibrates the color.
Brightness
-128–0–+127 Adjusts the brightness.
Contrast
-128–0–+127 Adjusts the saturation.
Saturation
-128–0–+127 Adjusts the contrast.
Red
-128–0–+127 Adjusts the red level.
Green
-128–0–+127 Adjusts the green level.
Blue
-128–0–+127 Adjusts the blue level.
Copy Settings from
Previous, Initial, Main Proc.,
Sub Proc., USB Streaming,
Channel 1–8
Copies the parameter settings in “Eects” from another channel or other
source.
Previous: The last value set
Initial: The default value
(Execute) Press the [PAGE/CURSOR] knob to copy the settings.
CH. 1–8
0
Main Processing, Sub Processing
0
Scaling
Menu item (Parameter) Value (Bold: default) Explanation
Type
This sets how the input video is enlarged or reduced (the scaling type).
Fill
Always displays the picture expanded to full screen,
irrespective of the aspect ratio of the input video.
ROI
Letter-box
Enlarges or reduces the incoming video to a
full-screen view while keeping the aspect ratio
unchanged.
ROI
Crop
Enlarges or reduces the incoming video so that the
output picture has no blank margins while keeping
the aspect ratio unchanged.
ROI
Dot by Dot Displays at the input resolution, ignoring the scaling.
ROI
To Next Page
