Reverse Side
The color and shape of parts may differ from what is shown. Specifications are
subject to change without notice to improve quality.
DCE, DCE-M, DCE-H models are only supported.
RS232C IN RGB IN RJ45ANT IN
IR IN
DVI IN /
MAGICINFO IN
AUDIO OUT
HDMI IN 1
HDMI IN 2
AUDIO IN
COMPONENT IN
USB
(5V, 1.5A)

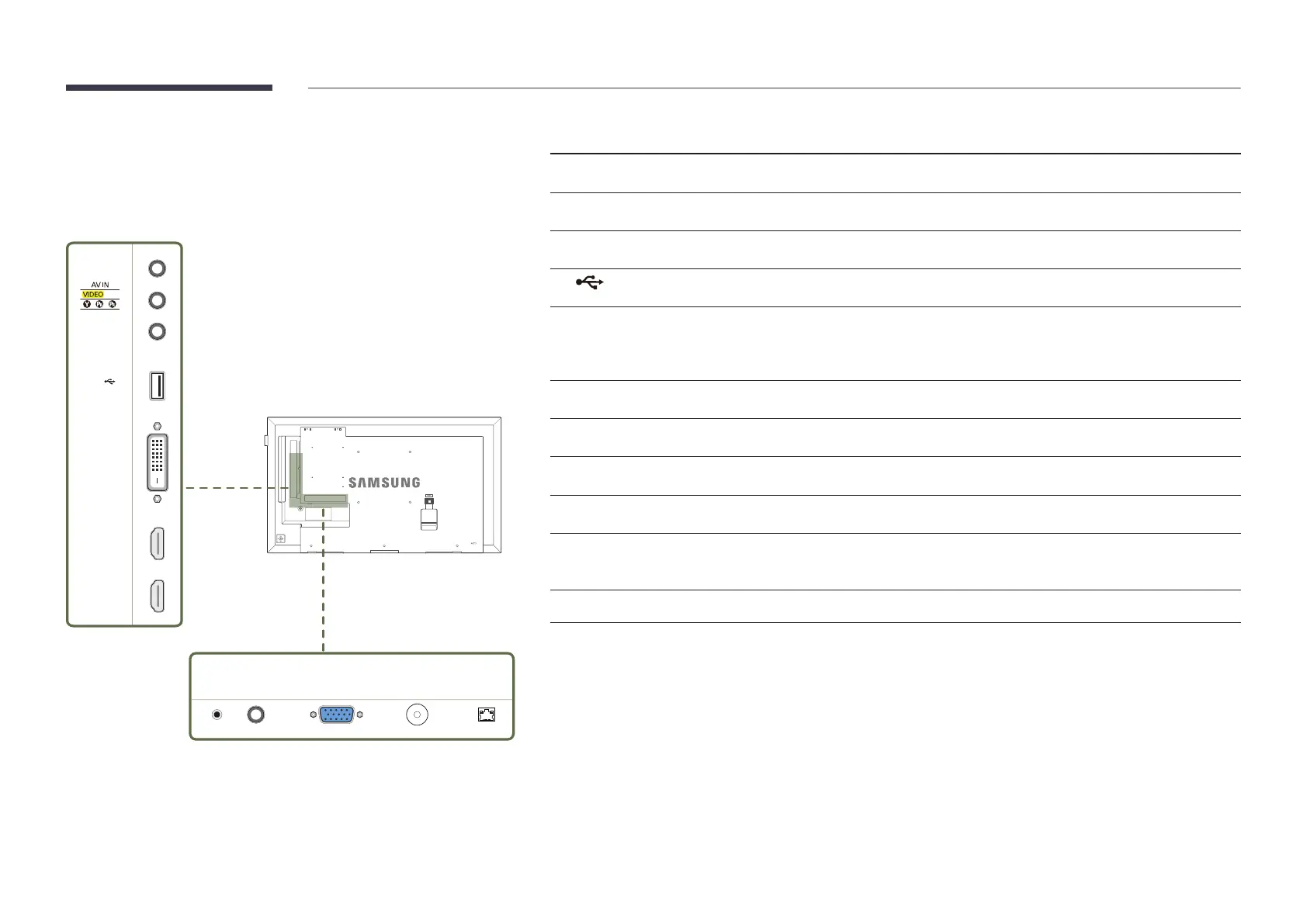

Port Description
AUDIO OUT
Connects to the audio of a source device.
AV IN / COMPONENT IN
Connects to a source device using the AV/Component adapter.
AUDIO IN
Receives sound from a PC via an audio cable.
USB (5V, 1.5A)
Connect to a USB memory device.
DVI IN / MAGICINFO IN
DVI IN: Connects to a source device using a DVI cable or HDMI-DVI cable.
MAGICINFO IN: Use the (dedicated) DP-DVI cable when connecting a network box
(sold separately).
HDMI IN 1, HDMI IN 2
Connects to a source device using an HDMI cable.
IR IN
Supplies power to the external sensor board or receives the light sensor signal.
RS232C IN
Connects to MDC using an RS232C adapter.
RGB IN
Connects to a source device using a D-SUB cable.
ANT IN
Connect to an antenna cable.
The DCE-H models are not supported.
RJ45
Connects to MDC using a LAN cable.
