Sanyo PLV-Z5 Service Manual

- 13 -
Be sure to reset the lamp replacement counter after the lamp is replaced. When the lamp replacement counter is reset, the
LAMP REPLACE indicator stops lighting.
Turn the projector on and press the MENU button to display
the On-Screen Menu. Select the Setting Menu with the
Point
ed buttons. Press the Point 8 button to access the
sub-menu items.
Select Lamp counter reset and then press the the OK or
Point
8 buttons. “Lamp replacement counter reset?” will
appear. Select [Yes] and then press the OK or Point
8
buttons.
1
2
Another confirmation dialog box appears, and select [Yes] to
reset the Lamp replacement counter.
3
Lamp Replacement Counter
✔Note:
• Do not reset the Lamp replacement counter without implementing lamp
replacement. Be sure to reset the Lamp replacement counter only after
replacing the lamp.

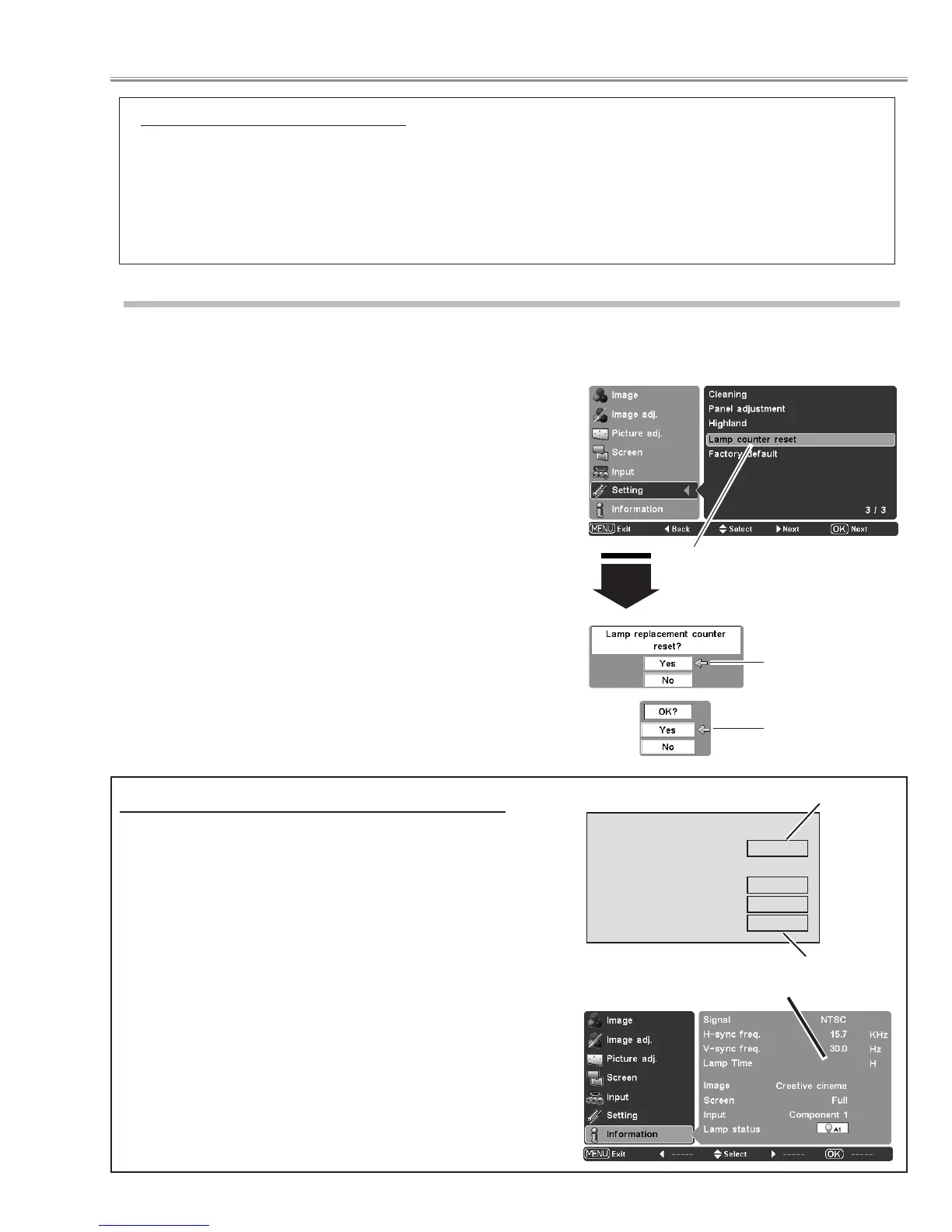

Lamp counter reset
Select Lamp counter reset
and press the OK or Point 8
buttons. “Lamp replacement
counter reset” will appear.
Select [Yes] and press
the OK or Point 8
buttons, then another
confirmation box will
appear.
Select [Yes] again to
reset the lamp counter.
ORDER REPLACEMENT LAMP
Replacement lamp can be ordered through your dealer. When ordering a projection lamp, give the following information
to the dealer.
● Model No. of your projector : PLV-Z5 / PLV-Z5BK
● Replacement Lamp Type No. : POA-LMP94
(Service Parts No. 610 323 5998)
The LAMP REPLACE indicator will light when the total
lamp used time reaches 3,000 hours. This is to indi-
cate that lamp replacement is required.
The total lamp used time is calculated by using the
below expression;
Total lamp used time = Teco + Tnormal x (1.5)
Teco: used time in Eco mode
Tnormal: used time in Normal/Auto1/Auto2 mode
You can check the lamp counter following procedure.
1 Press and hold the POWER ON/STAND-BY button
on the projector or the remote control unit for more
than 20 seconds.
2 The projector used time and lamp used time will be
displayed on the screen briefly.
You can also check "Lamp Time" in the "Information
Menu". This value is actual lamp used time.
"Lamp Time" = Teco + Tnormal
How to check lamp used time
Counter
Projector 475H
Lamp
Normal 100H
Eco 375H
Corresponding value 525H
Total lamp used time
Information Menu
Lamp Counter Display
Projector used time
Total lamp used time (actual)
475
Lamp Replacement

Sanyo PLV-Z5 Specifications

General

Number of colors	1.073 billion colors
Vertical scan range	50 - 100 Hz
Horizontal scan range	15 - 80 kHz
Projection technology	LCD
Contrast ratio (typical)	-
Screen size compatibility	40 - 300 \
Projector native resolution	1280x720
Keystone correction, vertical	± 20 °
Digital zoom	2 x
Zoom capability	Yes
Focal length range	21.3 - 42.6 mm
RS-232 ports	1
Compatibility	WXGA/SXGA/XGA/SVGA/VGA/MAC
Dimensions (WxDxH)	382 x 304.3 x 126.8 mm
Power requirements	100 - 240 V
Horizontal resolution	420 lines
Lamp type	UHP
Lamp power	145 W
Light source type	Lamp
Service life of light source	3000 h
Dot clock scanning frequency	100 MHz
Serial interface type	RS-232
Display diagonal	0.7 \
Power consumption (typical)	185 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C

Weight and Dimensions

Weight	5000 g
