Sanyo PLV-Z5 Service Manual

- 50 -
SCREW-A
C
REW-C
SLOT-B
O
T-D
Slot-H
Slot-G
Screw-D
Screw-C
White
CYAN
MAGENTA
White
CYAN
MAGENTA
a
a
White
CYAN
MAGENT
A
White
CYAN
MAGENTA
b
b

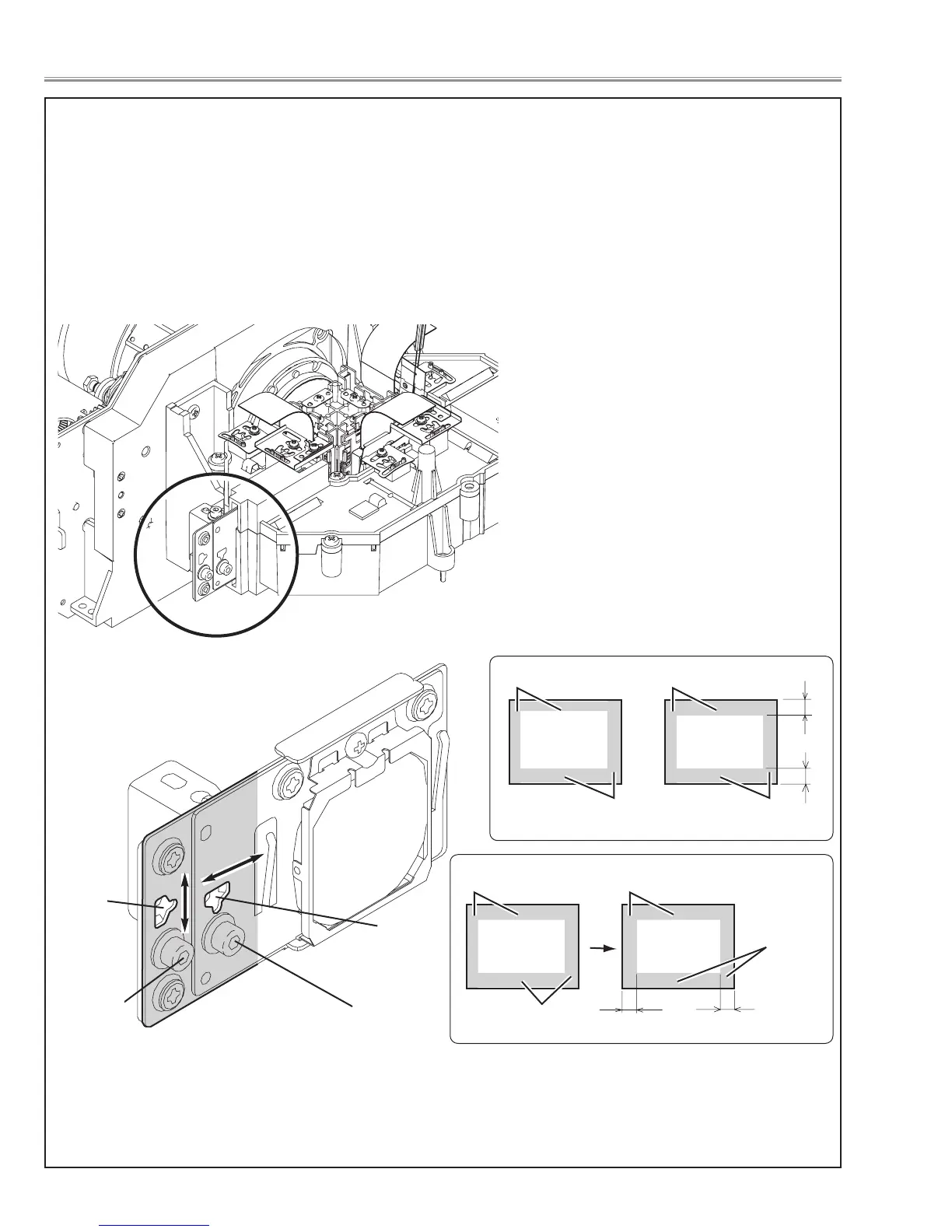

2.Relay lens adjustment
1. Adjust the slot G.
It is adjusted that cyan and the magenta in the top and bottom part become the same width.
2. Adjust the slot H.
It is adjusted that cyan and the magenta in the right and left part become the same width.
3. Tighten screw C and screw D to fix the relay lens unit.
Optical adjustment

Sanyo PLV-Z5 Specifications

General

Number of colors	1.073 billion colors
Vertical scan range	50 - 100 Hz
Horizontal scan range	15 - 80 kHz
Projection technology	LCD
Contrast ratio (typical)	-
Screen size compatibility	40 - 300 \
Projector native resolution	1280x720
Keystone correction, vertical	± 20 °
Digital zoom	2 x
Zoom capability	Yes
Focal length range	21.3 - 42.6 mm
RS-232 ports	1
Compatibility	WXGA/SXGA/XGA/SVGA/VGA/MAC
Dimensions (WxDxH)	382 x 304.3 x 126.8 mm
Power requirements	100 - 240 V
Horizontal resolution	420 lines
Lamp type	UHP
Lamp power	145 W
Light source type	Lamp
Service life of light source	3000 h
Dot clock scanning frequency	100 MHz
Serial interface type	RS-232
Display diagonal	0.7 \
Power consumption (typical)	185 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C

Weight and Dimensions

Weight	5000 g
