Sanyo PLV-Z5 Service Manual

- 35 -
23

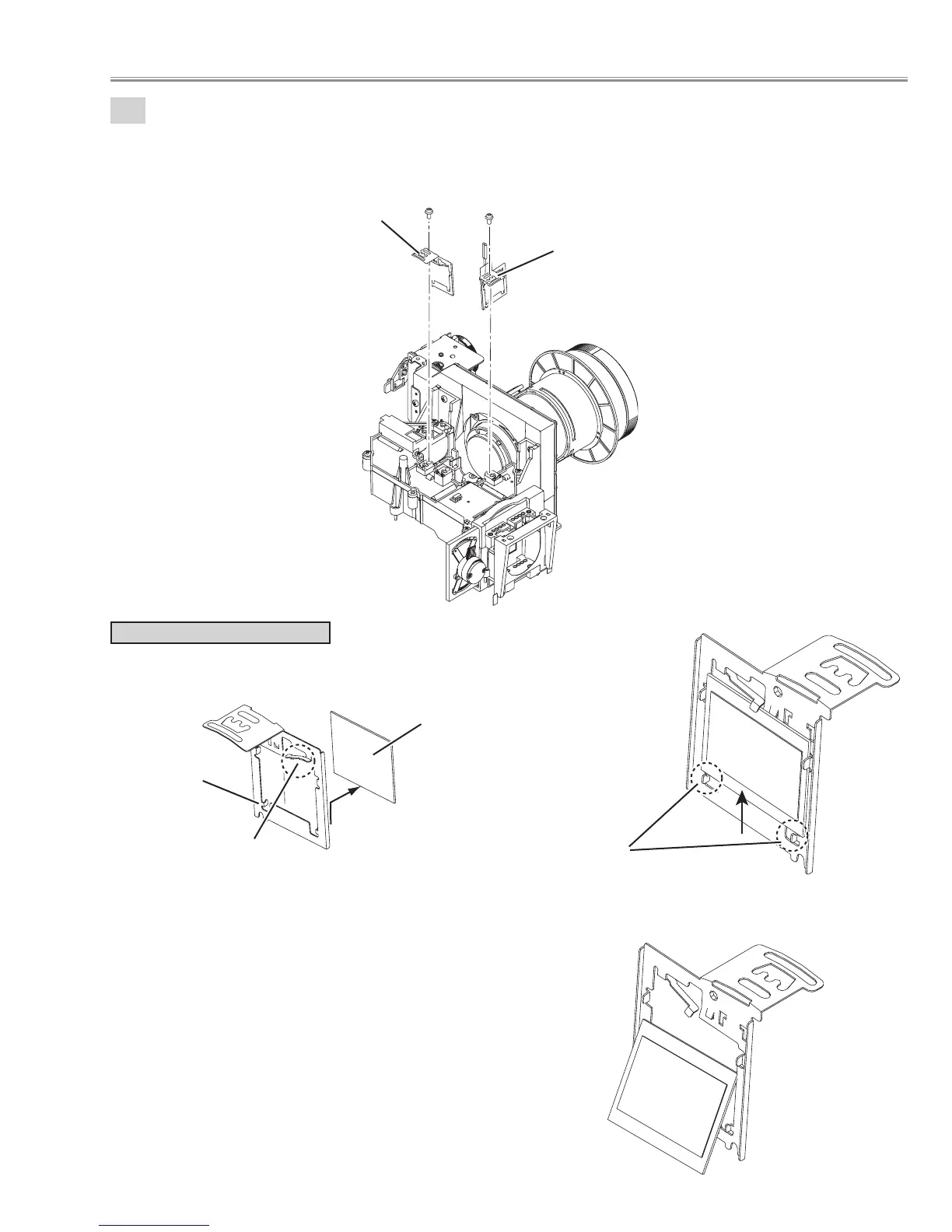

Polarized glasses removal.
1.Remove the screw-A(M2x5) and remove the Polarized glass ass'y (IN-G).
2.Remove the screw-B(M2x5) and remove the Polarized glass ass'y (IN-B).
A
B
Fig. 23-a
Polarized glass ass'y(IN-G)
Polarized glass ass'y(IN-B)
Fig. 23-b
Polarized Glass ass'y (IN-G)
Holder
Polarized Glass(IN-G)
Stopper
Push the Polarized glass upward, unhook the holder and
remove the Polarized glass.
Hook
Optical disassemblies

Sanyo PLV-Z5 Specifications

General

Number of colors	1.073 billion colors
Vertical scan range	50 - 100 Hz
Horizontal scan range	15 - 80 kHz
Projection technology	LCD
Contrast ratio (typical)	-
Screen size compatibility	40 - 300 \
Projector native resolution	1280x720
Keystone correction, vertical	± 20 °
Digital zoom	2 x
Zoom capability	Yes
Focal length range	21.3 - 42.6 mm
RS-232 ports	1
Compatibility	WXGA/SXGA/XGA/SVGA/VGA/MAC
Dimensions (WxDxH)	382 x 304.3 x 126.8 mm
Power requirements	100 - 240 V
Horizontal resolution	420 lines
Lamp type	UHP
Lamp power	145 W
Light source type	Lamp
Service life of light source	3000 h
Dot clock scanning frequency	100 MHz
Serial interface type	RS-232
Display diagonal	0.7 \
Power consumption (typical)	185 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C

Weight and Dimensions

Weight	5000 g
