Sanyo PLV-Z5 Service Manual

- 40 -

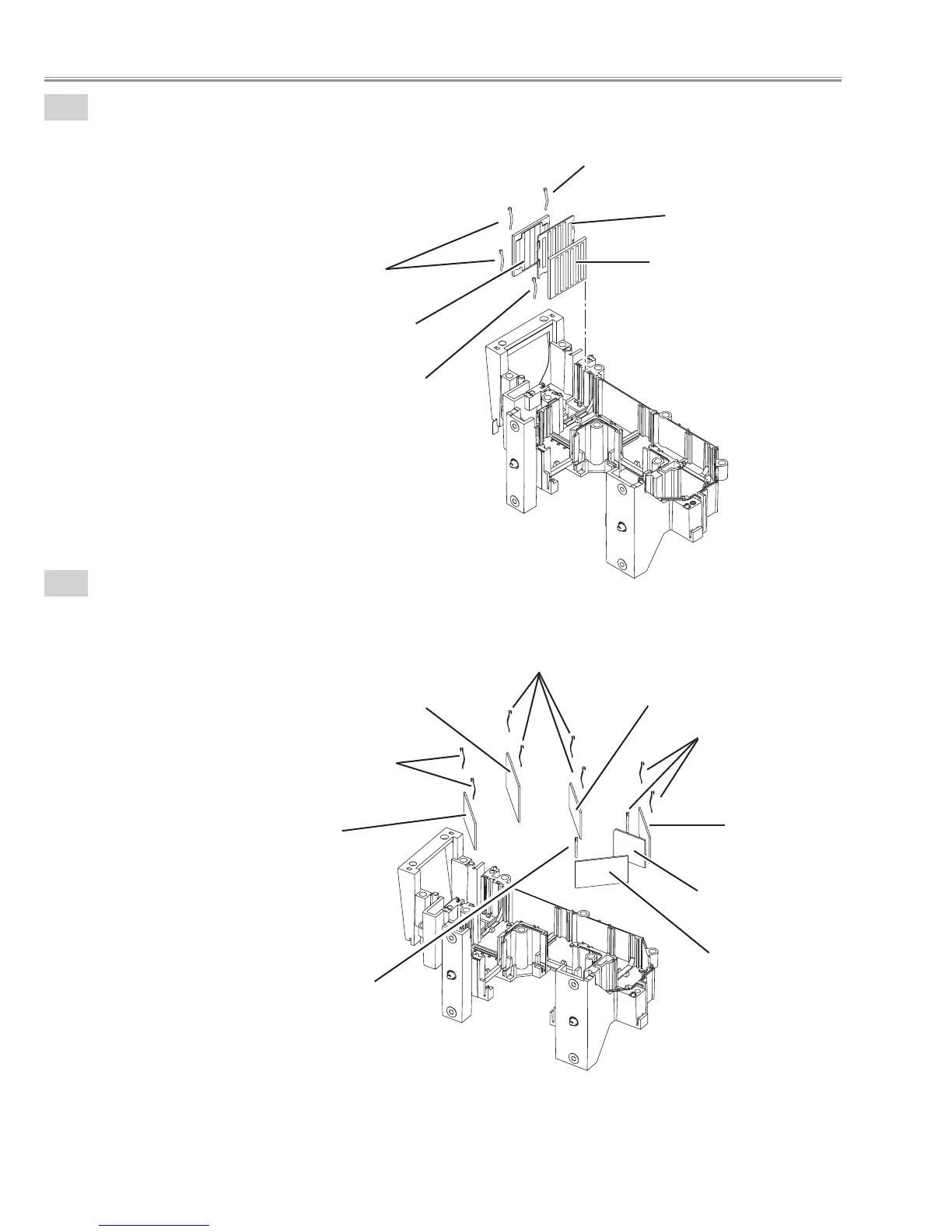

28-2
PBS and Integratoe lens (OUT) removal.
1.Remove the 3 stopperes and remove the
Integrator lens(OUT).
2.Remove the stopper, shield plate and remove the
PBS.
28
-3
Mirrores removal.
1.Remove the stopperes and remove the mirrores.
Fig. 28-2
Fig. 28-3
PBS
Integrator lens(OUT)
Shield plate
Stopper
Stopper
Stopper
Stopper
Stopper
Stopper
Stopper
Mirror(R)
Mirror(R)
Mirror(B)
Dicroic Mirror(B)
Dicroic Mirror(G)
Optical Filter(R)
Optical disassemblies

Sanyo PLV-Z5 Specifications

General

Number of colors	1.073 billion colors
Vertical scan range	50 - 100 Hz
Horizontal scan range	15 - 80 kHz
Projection technology	LCD
Contrast ratio (typical)	-
Screen size compatibility	40 - 300 \
Projector native resolution	1280x720
Keystone correction, vertical	± 20 °
Digital zoom	2 x
Zoom capability	Yes
Focal length range	21.3 - 42.6 mm
RS-232 ports	1
Compatibility	WXGA/SXGA/XGA/SVGA/VGA/MAC
Dimensions (WxDxH)	382 x 304.3 x 126.8 mm
Power requirements	100 - 240 V
Horizontal resolution	420 lines
Lamp type	UHP
Lamp power	145 W
Light source type	Lamp
Service life of light source	3000 h
Dot clock scanning frequency	100 MHz
Serial interface type	RS-232
Display diagonal	0.7 \
Power consumption (typical)	185 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C

Weight and Dimensions

Weight	5000 g
