Sanyo PLV-Z5 Service Manual

-73-

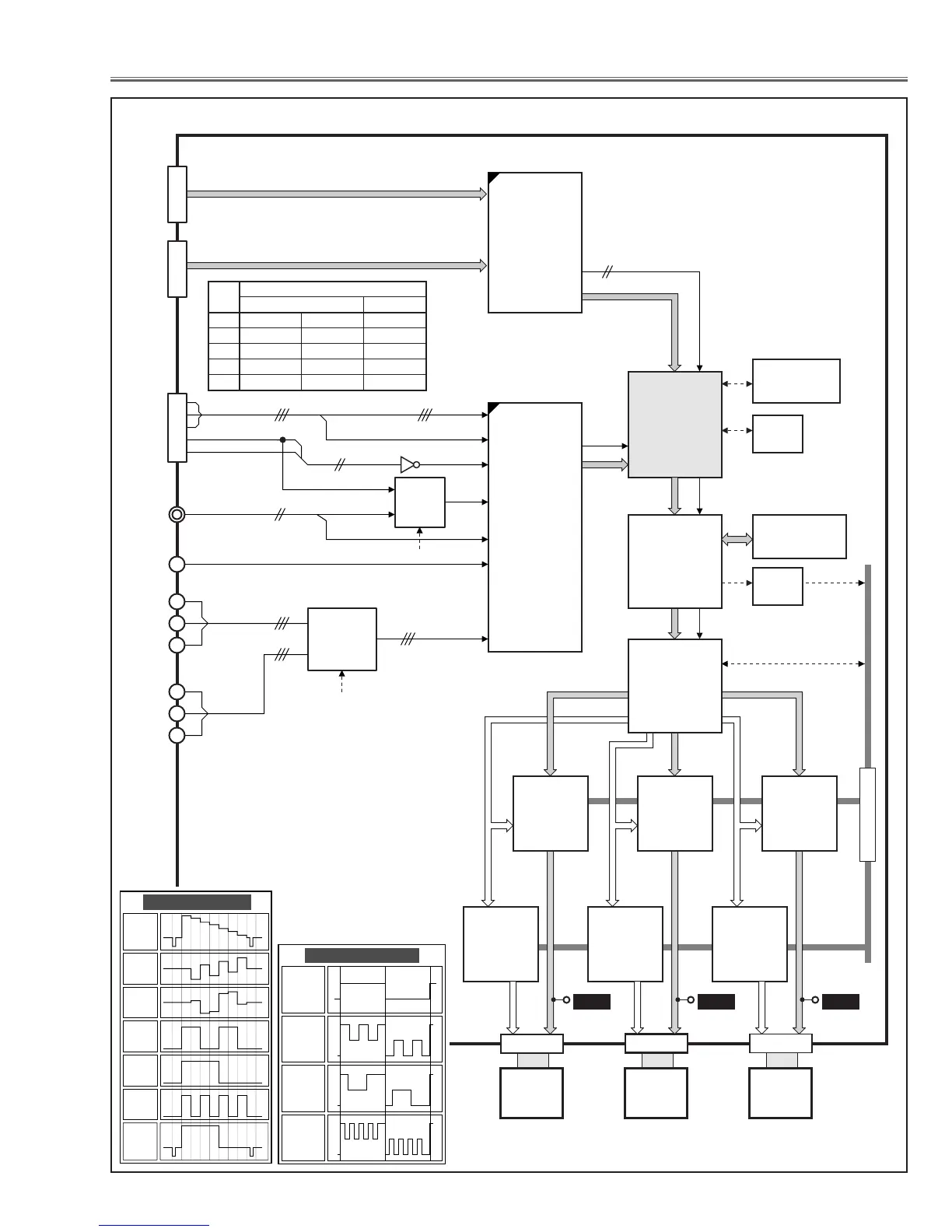

Chassis Block Diagrams
IC301
SCAN
CONVERTER,
SYSTEM
CONTROL
<PW386>
IC2501
LEVEL
SHIFT
<L3E01060>
IC2531
LEVEL
SHIFT
<L3E01060>
IC2561
LEVEL
SHIFT
<L3E01060>
B-LCD
PANEL
G-LCD
PANEL
R-LCD
PANEL
SCS/SCLK/SDATA
K35R K35G K35B
DR_1/2 DB_1/2
DG_1/2
TP35BTP35GTP35R
IC8201
VIDEO
DECODER
&
A/D
<ADV7403>
IC4401
COLOR
MANAGER
<EP1S25>
IC801
FLASH ROM
<S29GL064>
IC1391
EEPROM
IC841
BUFFER
IC3401
SDRAM
<MSM56V16160>
MAIN BOARD
PW_DR
PW_DG
PW_DB
DR
DG
DB
DHS,DVS,DCLK
PW_HS,PW_VS
PW_CLK
IC8001
HDMI
RECEIVER
<SiI9023>
HDMI1
COMPONENT_1
Y/Cb/Cr
COMPONENT_2
Y/Cb/Cr
Y
Cb
Cr
Y
Cb
Cr
COMPUTER S-VIDEO VIDEO
YY/C
SOG
S_CHROMA
CV
PC_HS
PC_VS
PC_RGB
PC_H=SCART_CV
PC_RGB/SCART
ADCB
ADCR
ADY
SIGE
SIBE
IC8271PC_HS/VS
IC5201
YUV SW
<NJM2584>
YCbCr_1
YCbCr_2
YCbCr
ADHS
ADVS
HDMI1
TMDS
HDMI2 HDMI2
TMDS
SIHS/SIVS
IC5231
S/CV SW
<7W53>
COMP1/2_SW
S/CV_SW
D-SUB_15
IC401
DIGITAL
GAMMA
<L3E07110>
IC501
S&H
BLUE
<L3E06150>
IC531
S&H
GREEN
<L3E06150>
IC561
S&H
RED
<L3E06150>
1
pin
R
G
B
H_SYNC
V_SYNC
RGB
R
G-ON SYNC
B
-
-
R
G
B
CV_SYNC
-
RGB(SCART)
D-SUB_15 Input Signal
2
3
13
14
● Video signal processing circuit and LCD panel driving circuit
Timing Chart
INPUT
SIGNAL
_RED
INPUT
SIGNAL
_GREEN
INPUT
SIGNAL
_G-ON
SYNC
INPUT
SIGNAL
_BLUE
INPUT
SIGNAL
_Y
INPUT
SIGNAL
_CB
INPUT
SIGNAL
_CR
FRP
TPFRPG
Timing Chart
RED
S & H
OUTPUT
TP35R
GREEN
S & H
OUTPUT
TP35G
BLUE
S & H
OUTPUT
TP35B

Sanyo PLV-Z5 Specifications

General

Number of colors	1.073 billion colors
Vertical scan range	50 - 100 Hz
Horizontal scan range	15 - 80 kHz
Projection technology	LCD
Contrast ratio (typical)	-
Screen size compatibility	40 - 300 \
Projector native resolution	1280x720
Keystone correction, vertical	± 20 °
Digital zoom	2 x
Zoom capability	Yes
Focal length range	21.3 - 42.6 mm
RS-232 ports	1
Compatibility	WXGA/SXGA/XGA/SVGA/VGA/MAC
Dimensions (WxDxH)	382 x 304.3 x 126.8 mm
Power requirements	100 - 240 V
Horizontal resolution	420 lines
Lamp type	UHP
Lamp power	145 W
Light source type	Lamp
Service life of light source	3000 h
Dot clock scanning frequency	100 MHz
Serial interface type	RS-232
Display diagonal	0.7 \
Power consumption (typical)	185 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C

Weight and Dimensions

Weight	5000 g
