Sanyo PLV-Z5 Service Manual

- 31 -
20-1

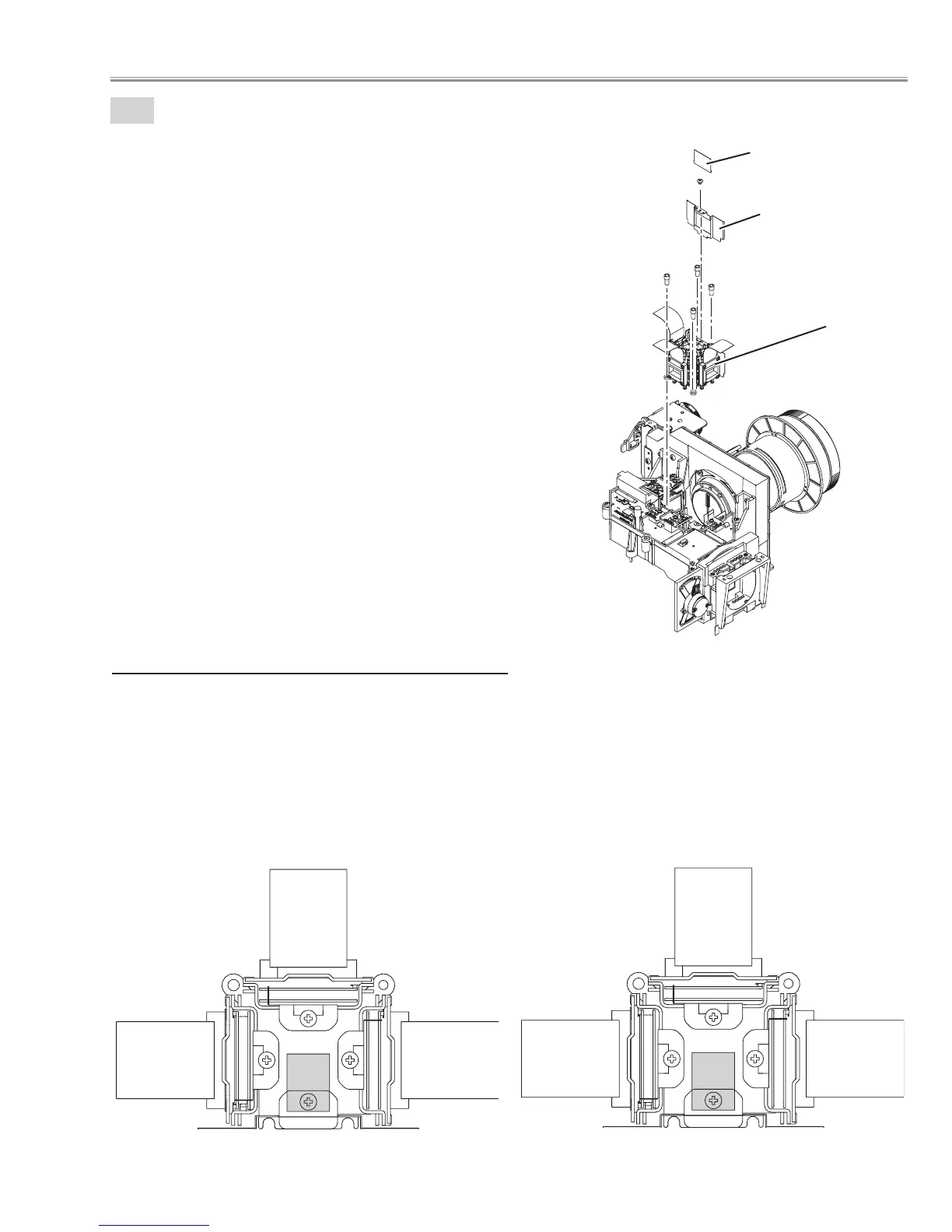

LCD panel / Prism ass'y removal.
1.Unhook the stopper and remove the Spacer.
2.Remove the screw-A(M2x3) and remove the
Shield cover.
3.Remove the 4 screws-B(M2.5x5) and remove
the LCD panel/Prism ass'y.
Optical disassemblies
B
A
B
B
B
LCD panel / Prism ass'y
Shield cover
Spacer
Fig. 20-1
R
L
LCD Panel / Prism ass'y (Type-R)
LCD Panel / Prism ass'y (Type-L)
P
anel Type Check
There are 2 types combination of the LCD Panel/Prism Ass'y and the optical unit, named Type-L and Type-R.Since
both have no compatibility, each type should be combined with the same type, and the specificparts should be used.
If not, the poor optical characteristics may degrade the quality of a projected image.
When replacing the LCD Panel/Prism Ass'y,you need to take "Panel Type Check and Setting" on the Electrical
Adjustment.
The gamma-characteristics is different between Type-L and Type-R LCD Panel/Prism Ass'y

Sanyo PLV-Z5 Specifications

General

Number of colors	1.073 billion colors
Vertical scan range	50 - 100 Hz
Horizontal scan range	15 - 80 kHz
Projection technology	LCD
Contrast ratio (typical)	-
Screen size compatibility	40 - 300 \
Projector native resolution	1280x720
Keystone correction, vertical	± 20 °
Digital zoom	2 x
Zoom capability	Yes
Focal length range	21.3 - 42.6 mm
RS-232 ports	1
Compatibility	WXGA/SXGA/XGA/SVGA/VGA/MAC
Dimensions (WxDxH)	382 x 304.3 x 126.8 mm
Power requirements	100 - 240 V
Horizontal resolution	420 lines
Lamp type	UHP
Lamp power	145 W
Light source type	Lamp
Service life of light source	3000 h
Dot clock scanning frequency	100 MHz
Serial interface type	RS-232
Display diagonal	0.7 \
Power consumption (typical)	185 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C

Weight and Dimensions

Weight	5000 g
