Accessories
4.3 Connection system
3VA molded case circuit breakers with UL and IEC certification
172 Manual, 01/2019, L1V30435333-01

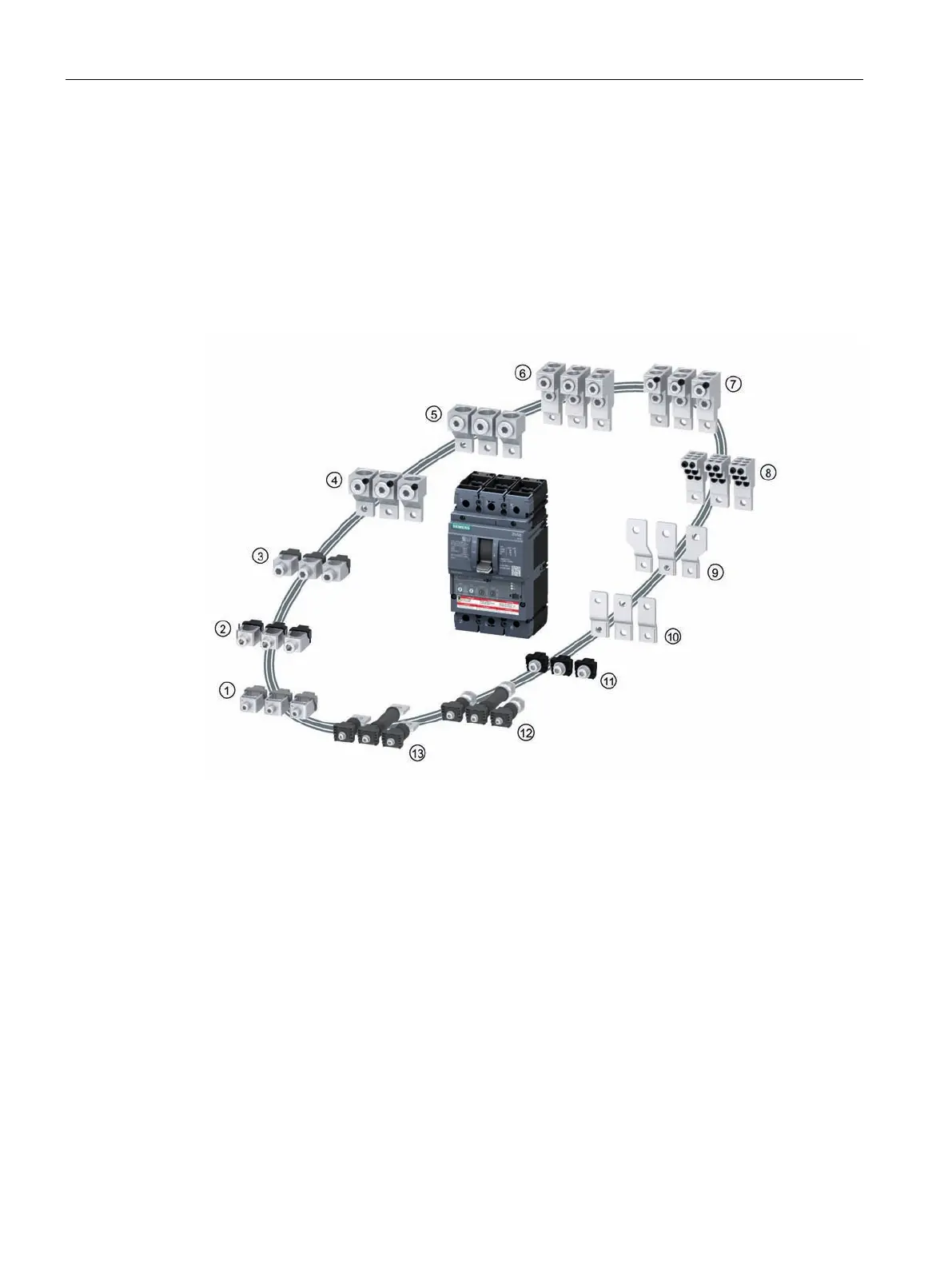

Connection portfolio for 3VA UL molded case circuit breakers
4.3.3.1
The connection technology of the 3VA UL molded case circuit breakers provides a
straightforward and convenient way to commission the molded case circuit breakers in
compliance with all installation requirements.
To meet this objective, an extensive portfolio of connection components is available.
Box terminal
Wire connector with control wire tap
Wire connector
Wire connector, large, with control wire tap
Wire connector, large
Wire connector, 2 cables
Wire connector, 2 cables, with control wire tap
Distribution wire connector, 6 cables
Front bus connectors offset
1)
Front bus connectors extended
Nut keeper kit
Rear connection stud round
Rear connection stud flat
1)
Only available for 3VA63 and 3VA64
