4.4 Plug-in and draw-out technology

3VA molded case circuit breakers with UL and IEC certification

256 Manual, 01/2019, L1V30435333-01

4.4.7.2

Overview of technical specifications

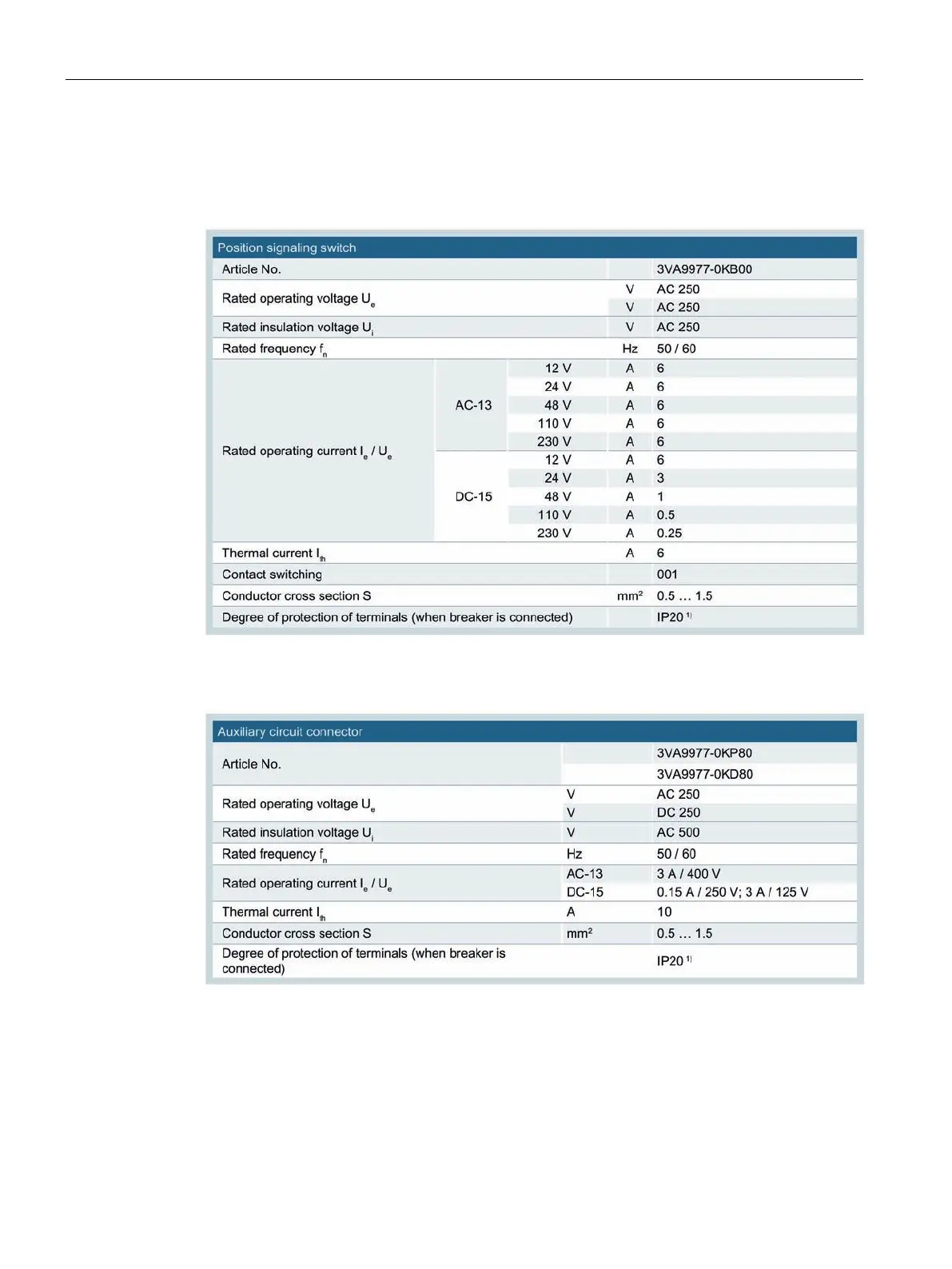

Technical specifications of the accessories for internal components of molded case circuit

breakers in plug-in and draw-out technology:

This meets NFPA 79 "Protection against electric shock" requirements

Manual, 01/2019, L1V304353333
