2.4.8
IP degrees of protection

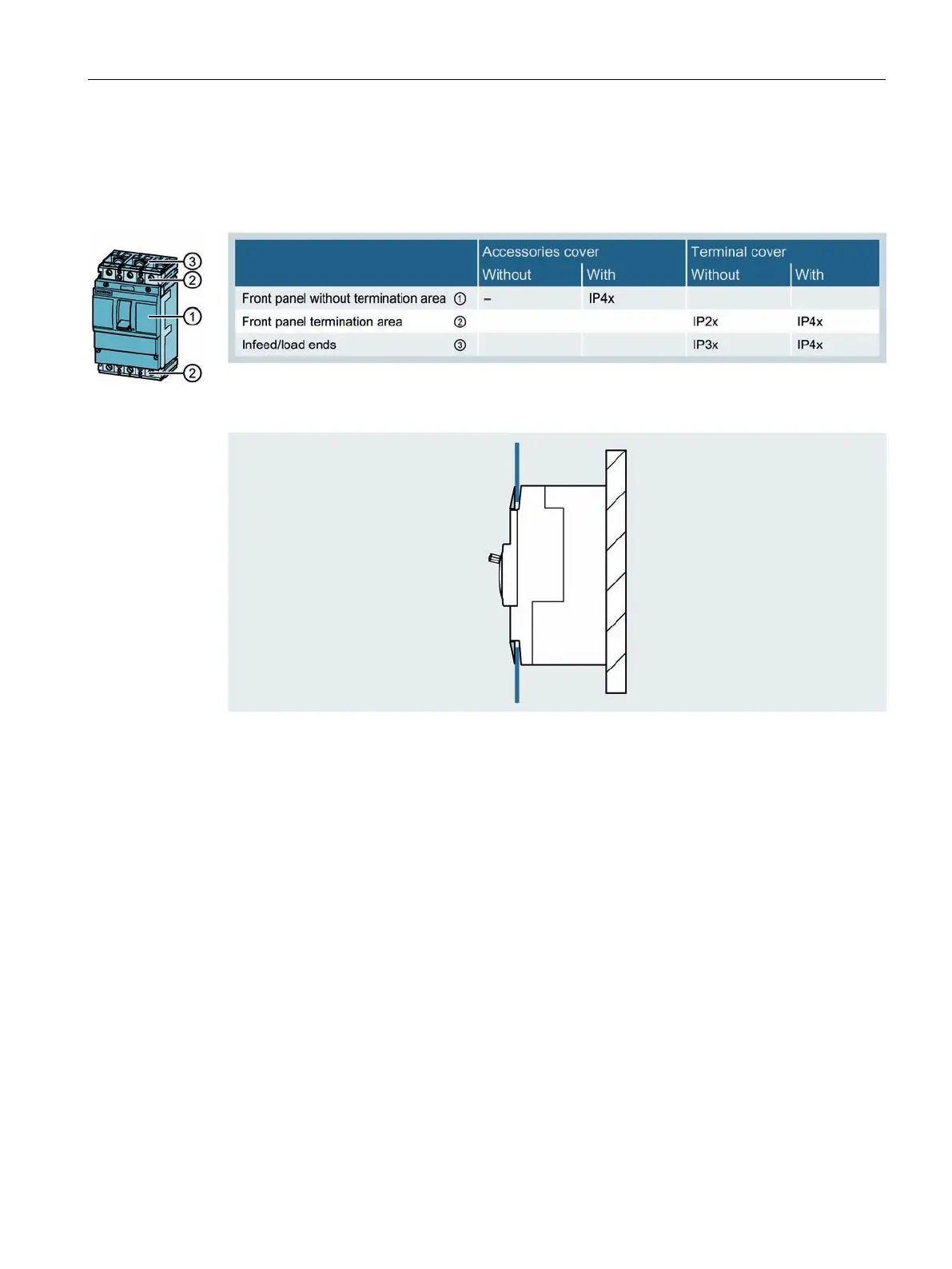

The 3VA UL molded case circuit breakers meet the following IP protection classes as
defined by IEC 60529 and IEC 60947-1, Annex C:
Degree of protection IP30 is achieved when a 3VA UL molded case circuit breaker is
installed in a switchboard with a door cutout including cover frame (see below).
Handle and release are freely accessible, the panel door closes flush with the molded case
circuit breaker.
You can achieve a higher degree of protection up to IP65 in combination with the door-
mounted rotary operator.
The IP protection system according to IEC 60529 is used for devices and enclosures or
panels. However, there is not a comparable system for electrical devices themselves in the
UL world. According to NEMA 250, there is a "type-rated system" for electrical enclosures
and panels. In NFPA79 "Electrical Standard for Industrial Machinery", in which the
NEMA 250 ratings for electrical enclosures are provided in detail, requirements for electrical
equipment without enclosure can also be found in section 6 "Protection from Electrical
Hazards". In essence, it states that the protection from electric shock is to be tested using a
jointed test finger with a diameter of 12.5 mm. The test finger described in detail here
corresponds pretty closely to the test finger that must be used according to IEC 60529 for
testing the finger safety for IP2x degree of protection, except that the IEC finger must have a
diameter of 12.0 mm
Thus, devices that meet IP2x degree of protection generally meet the requirements of the
U.S. touch-safe standards.
You can find NEMA protection types of the manual operators in chapter NEMA degree of
protection (Page 291).
