4.5 Manual operators

3VA molded case circuit breakers with UL and IEC certification

290 Manual, 01/2019, L1V30435333-01

4.5.6.5

Locking, blocking and interlocking

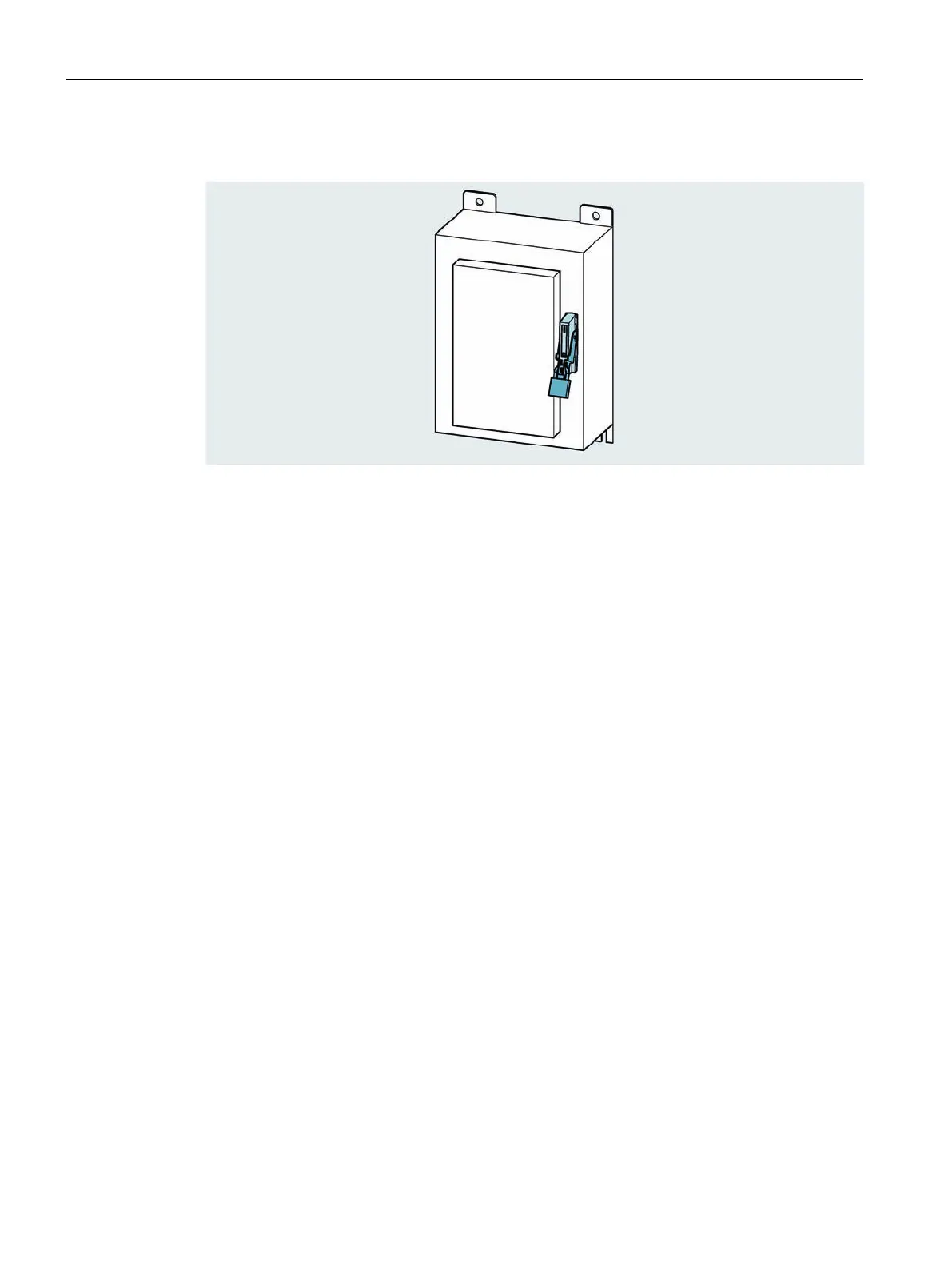

Lockable positions:

● Position OFF (O)

Locking the handle of the operator kit with Bowden cable in the OFF (O) position prevents

the molded case circuit breaker from being closed.

● Position ON (I)

The handle of the operator kit with Bowden cable can

not

be locked in the ON position.
