Technical specifications

6.1 Circuit diagrams

3VA molded case circuit breakers with UL and IEC certification

392 Manual, 01/2019, L1V30435333-01

6.1.2.2

Accessories

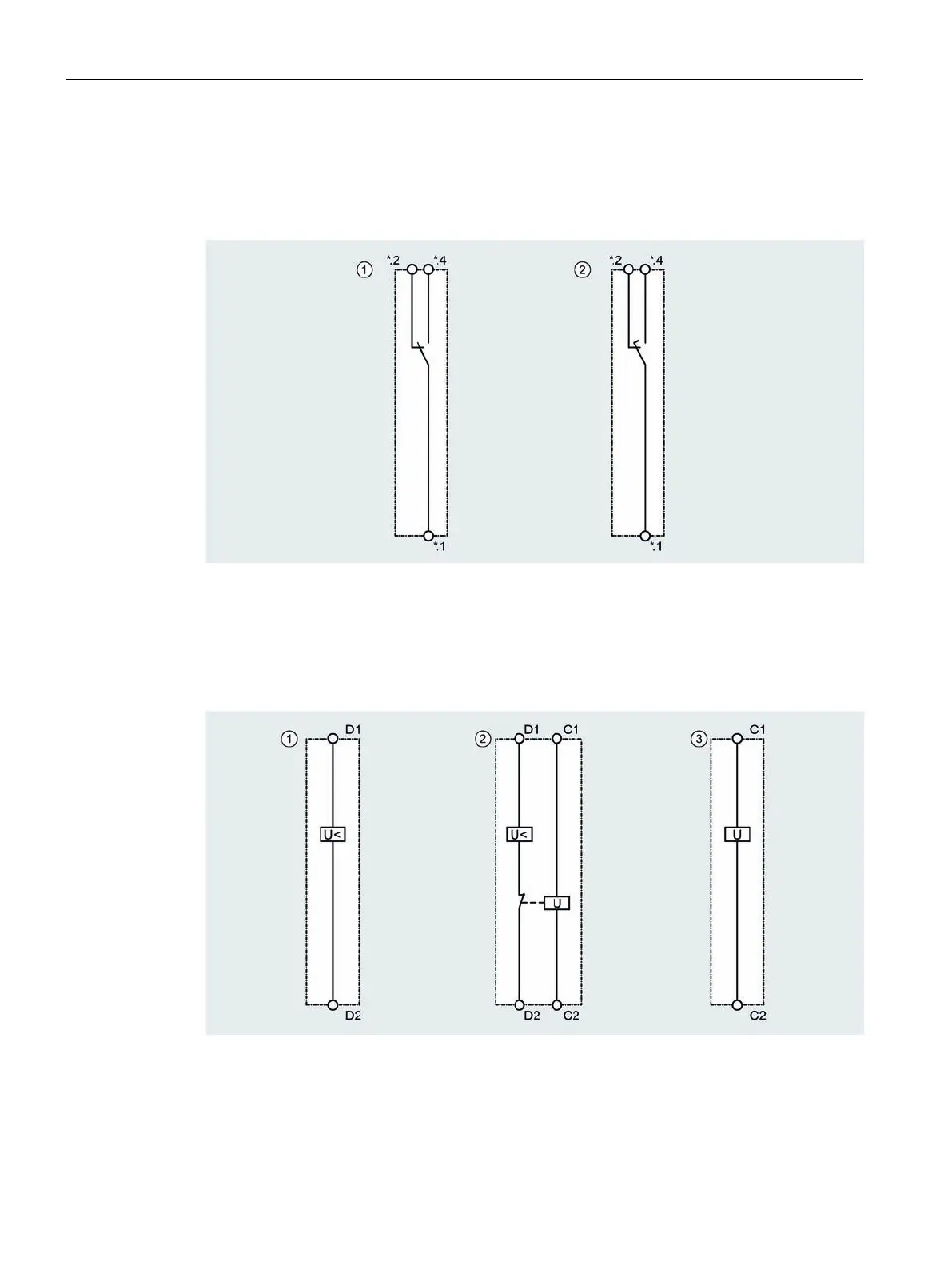

Auxiliary switches, alarm switches and position signaling contacts

①

Changeover contacts for auxiliary switches AUX, trip alarm switches TAS and electrical alarm

switches EAS, position signaling switches for plug-in and draw-out units

②

Leading changeover contacts for leading changeover switch LCS

Auxiliary releases

①

Undervoltage release UVR

②

Universal release UNI

③

Shunt trip

Manual, 01/2019, L1V304353333
