Accessories

4.5 Manual operators

3VA molded case circuit breakers with UL and IEC certification

Manual, 01/2019, L1V30435333-01

259

4.5.2

Operator control of the 3VA UL molded case circuit breakers with manual

operators

Opening and closing

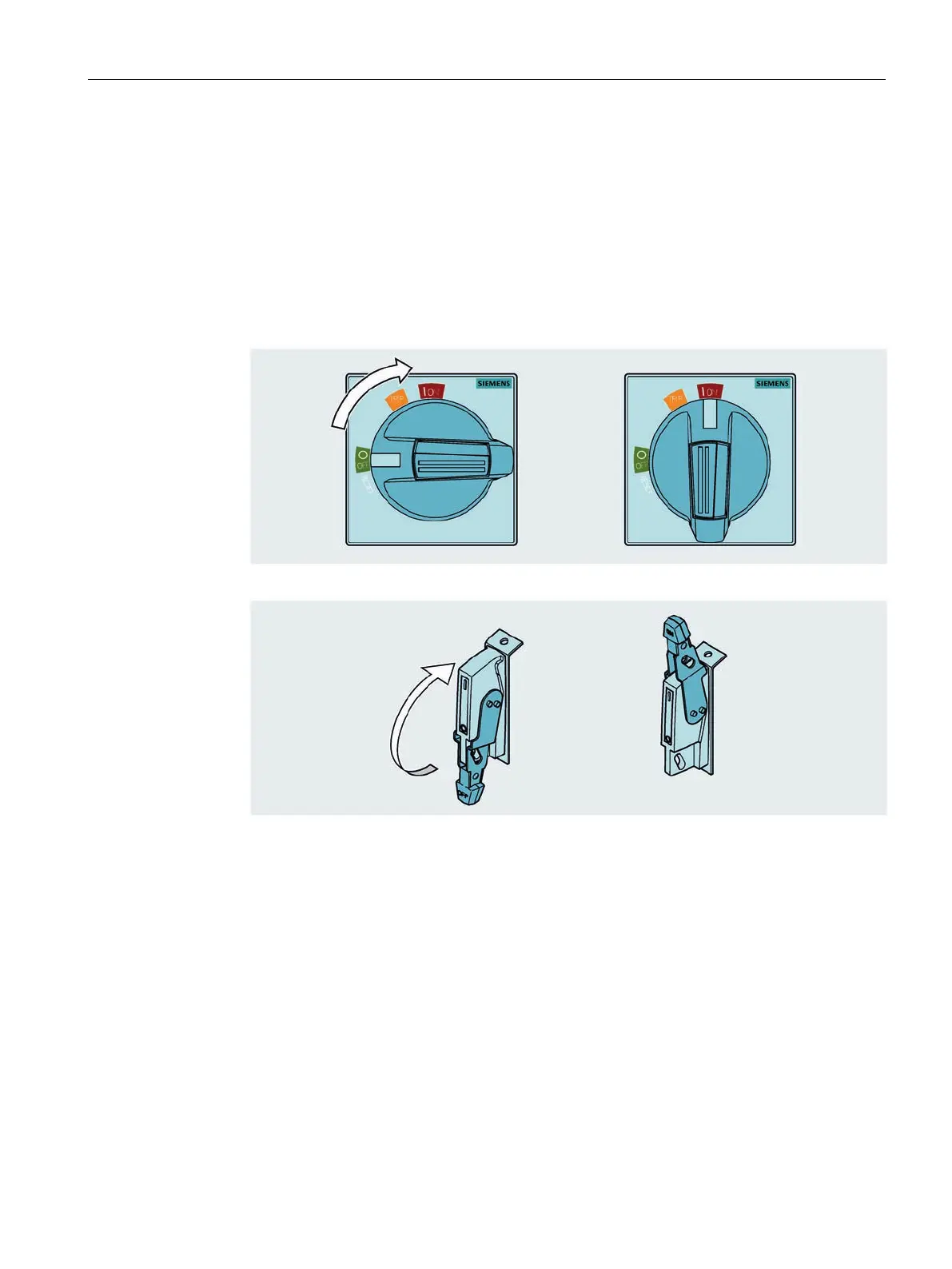

● To close the 3VA UL molded case circuit breaker:

Turn the manual operator to the ON (I) position.

Front mounted rotary operator, door mounted rotary operator, side wall mounted rotary

operator:

Handle of the operator kit with Bowden cable:

Manual, 01/2019, L1V304353333
