Accessories
4.6 Motor operator
3VA molded case circuit breakers with UL and IEC certification
296 Manual, 01/2019, L1V30435333-01

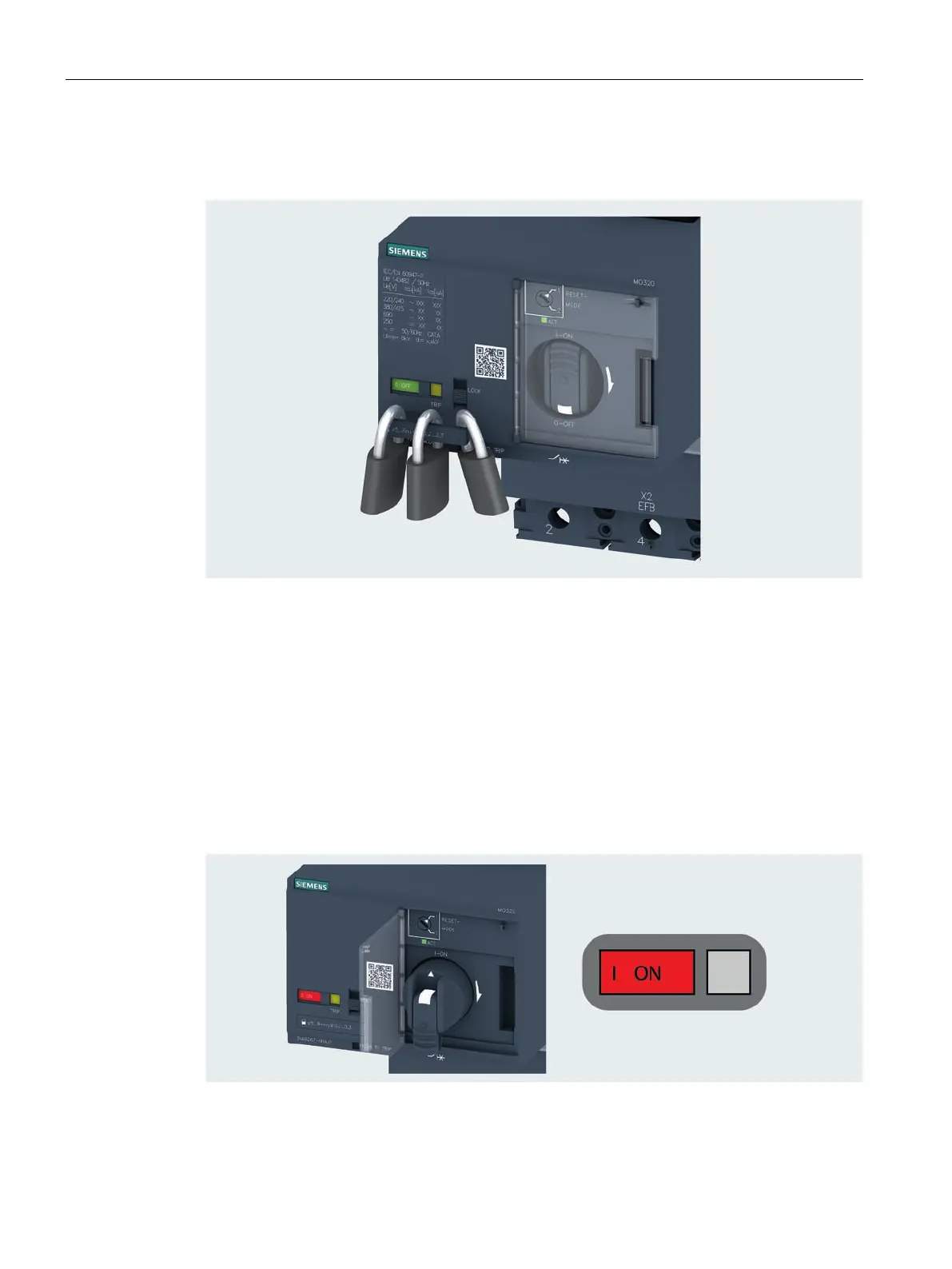

The padlock device can be locked with up to three padlocks with a diameter of 3/16" - 5/16" /
5 - 8 mm. Padlocks are not included in the scope of supply.
Operating the molded case circuit breaker with motor operator
Opening and closing in MANUAL mode
The plastic window is open, the motor operator is in MANUAL mode. The supply to the LEDs
is also disconnected, but the motor operator remains fully operational.
● Closing the 3VA UL molded case circuit breaker:
Turn the handle clockwise until the breaker status indication indicates ON (I).
The molded case circuit breaker is now closed ON (I). The main contacts are closed.
● Opening the 3VA UL molded case circuit breaker:
Turn the handle clockwise until the breaker status indication indicates OFF (O).
The molded case circuit breaker is now OFF (O). The main contacts are open.
