Accessories
4.5 Manual operators
3VA molded case circuit breakers with UL and IEC certification
264 Manual, 01/2019, L1V30435333-01
Front mounted rotary operator
4.5.3.1

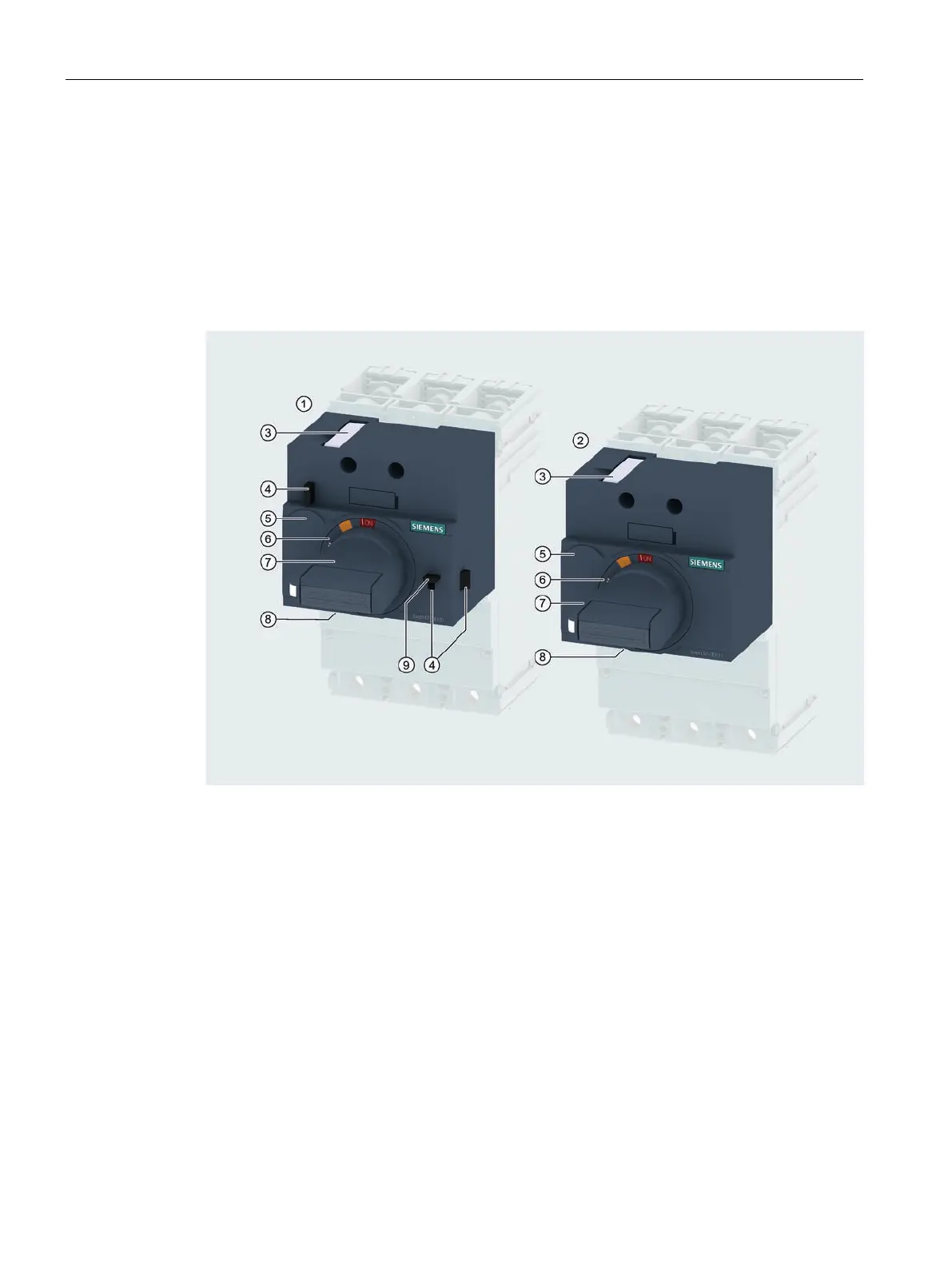

Elements of the front mounted rotary operator
The front mounted rotary operator is available in two versions:
● With door interlock
● Without door interlock
Front mounted rotary operator with door
interlock
Indication of the breaker status (on, off, trip)
(see below)
Front mounted rotary operator without door
interlock
Handle with mechanism for up to
3 padlocks
Locking mechanism for up to 3 padlocks
Manual trip button <PUSH TO TRIP>
Door interlocking elements (door position
switch, defeat function, interlock)
Door open function (optional)
Position for a cylinder lock (optional)
