Accessories
4.3 Connection system
3VA molded case circuit breakers with UL and IEC certification
176 Manual, 01/2019, L1V30435333-01

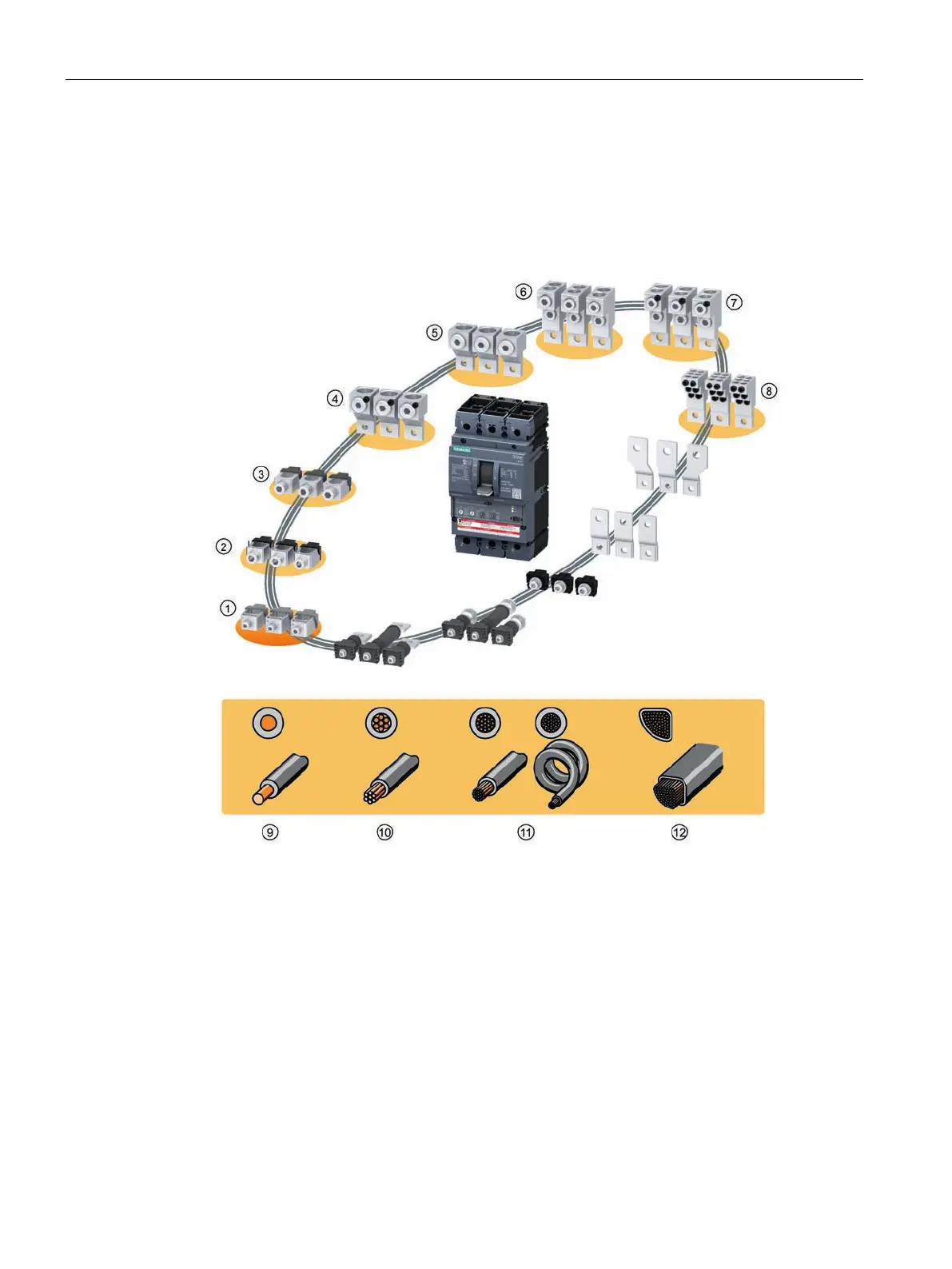

The diagram below illustrates all the components available for implementing a direct cable
connection at the molded case circuit breaker. The only exception is the box terminal as this
can be used to connect busbars as well as cables.
Box terminal
Solid conductor, class 1
Wire connector with control wire tap
Stranded conductor, class 2
Flexible conductors, classes 5 and 6
Wire connector, large, with control wire tap
Sector-shaped conductor
Wire connector, large
Wire connector, 2 cables, with control wire
Distribution wire connector, 6 cables
