Description

2.7 Electronic trip unit

3VA molded case circuit breakers with UL and IEC certification

84 Manual, 01/2019, L1V30435333-01

2.7.5

Operator controls

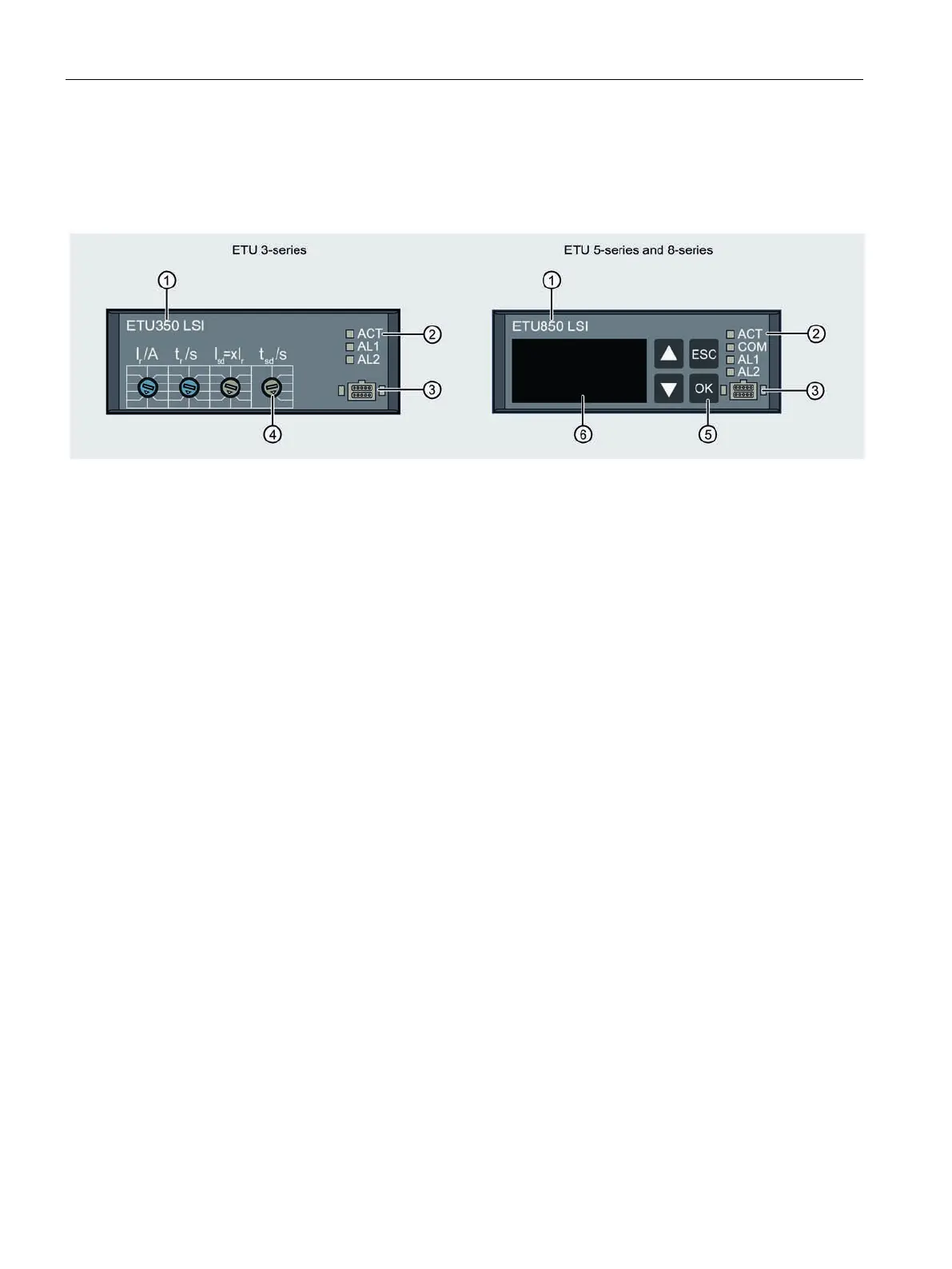

The following figure shows the available ETU types of the 3VA6 molded case circuit

breakers. You can decide which ETU to select according to the area of application.

①

Name of the ETU

③

Front interface

⑤

Pushbuttons

②

LED display

④

Setting buttons

⑥

LCD

Manual, 01/2019, L1V304353333
