Accessories

4.5 Manual operators

3VA molded case circuit breakers with UL and IEC certification

282 Manual, 01/2019, L1V30435333-01

4.5.5.2

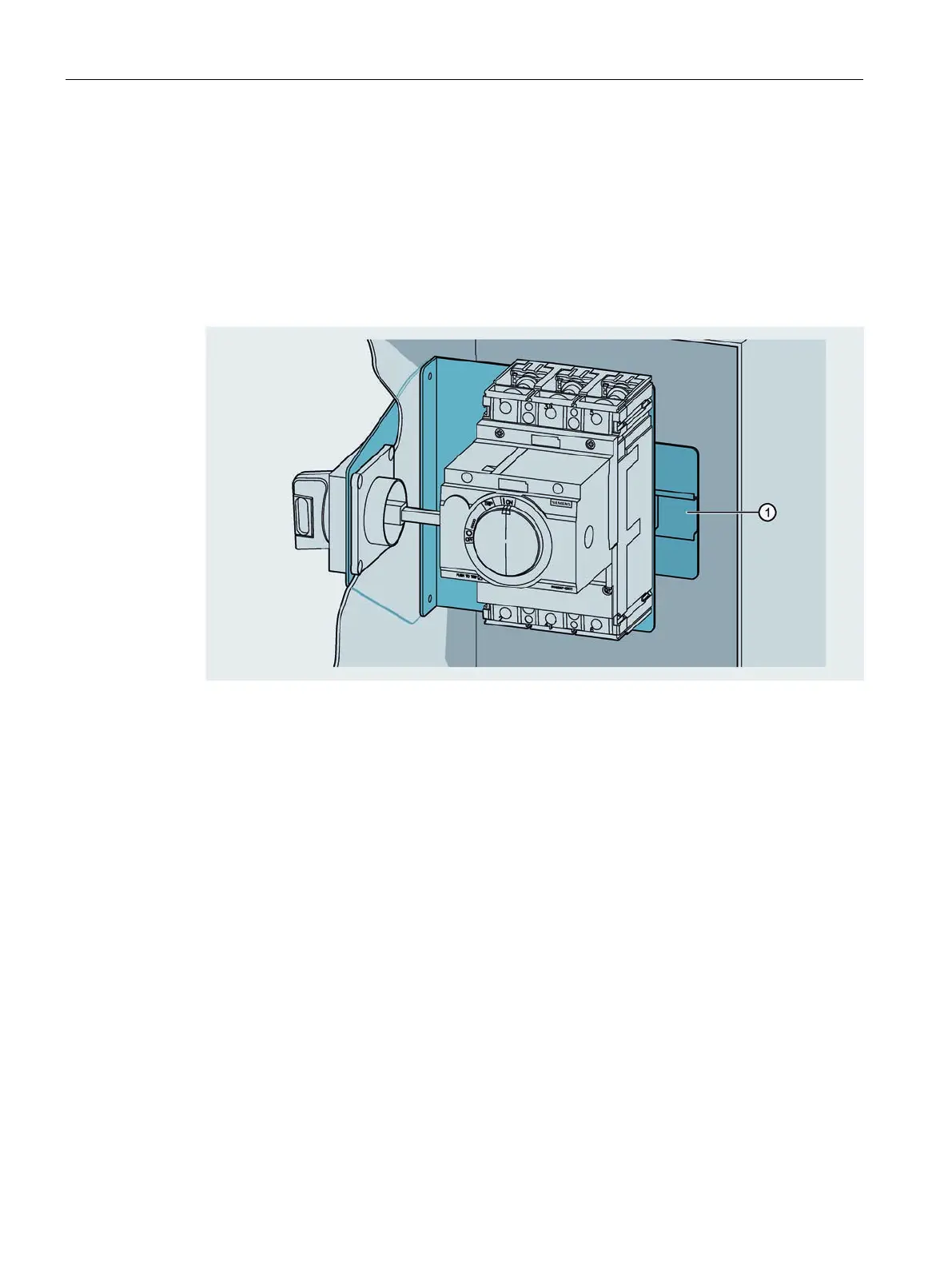

Side wall mounted rotary operator with mounting plate

The side wall mounted rotary operator is available in a version with mounting plate for

molded case circuit breakers up to 250 A. The mounting plate can be installed on the right-

hand or left-hand side panel. The space on the mounting plate can be used to install other

components.

If there is insufficient space available on the mounting plate to install terminals, a terminal

plate

① can be bolted to the panel.
