Accessories

4.3 Connection system

3VA molded case circuit breakers with UL and IEC certification

Manual, 01/2019, L1V30435333-01

203

4.3.4

Further connection accessories

4.3.4.1

Insulating equipment

The connection technology accessories provide a comprehensive range of insulation

measures.

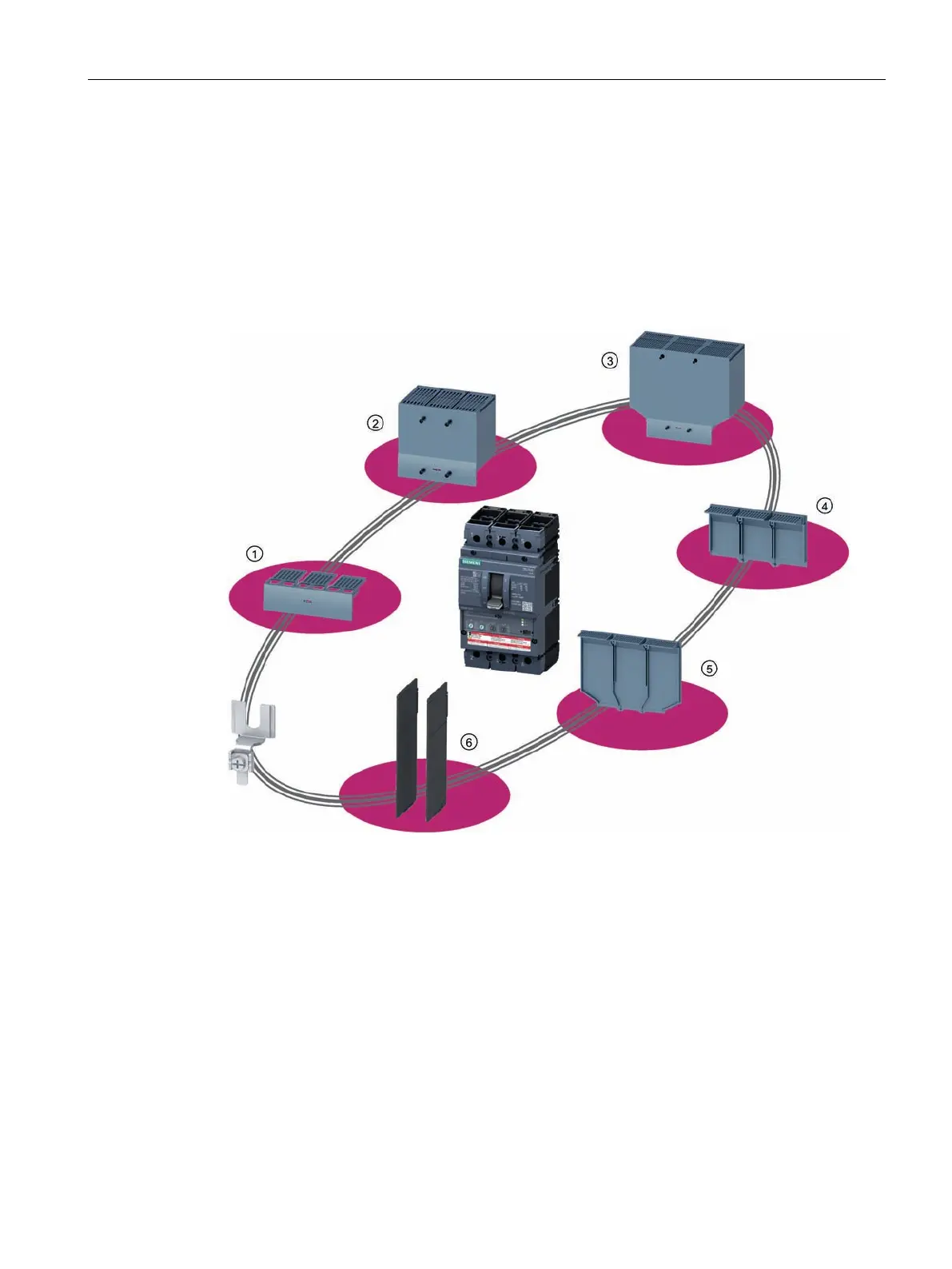

The following overview shows the insulation accessories available for the 3VA UL molded

case circuit breakers.

①

Terminal cover

②

Terminal cover extended

③

Terminal cover offset

④

Insulating plate

⑤

Insulating plate, offset

⑥

Phase barriers

Only available for 3VA63 and 3VA64
