Accessories

4.5 Manual operators

3VA molded case circuit breakers with UL and IEC certification

Manual, 01/2019, L1V30435333-01

271

4.5.4

Door mounted rotary operator

4.5.4.1

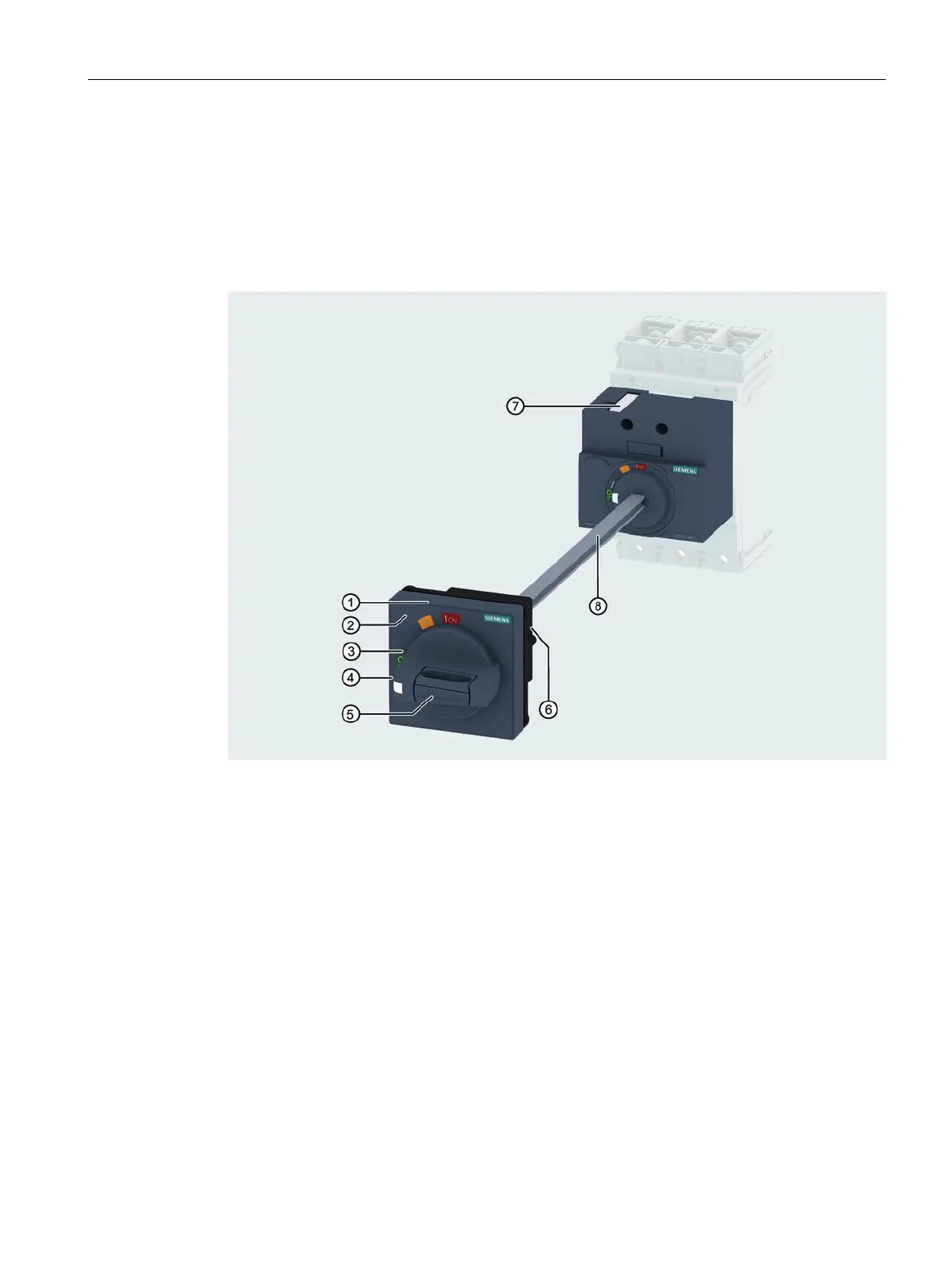

Elements of the door mounted rotary operator

With the door mounted rotary operator installed, it is possible to operate the molded case

circuit breaker through the panel door without opening the door.

①

Door mounted rotary operator

②

Position for a cylinder lock

③

Indication of the breaker status ON, TRIP, mounting position, OFF, RESET

For mounting position, see chapter Front mounted rotary operator (Page 264)

④

Door open function (Door-Open) (optional)

⑤

Handle with mechanism for up to 3 padlocks

⑥

Tolerance compensator

⑦

Interlock mechanism for up to 3 padlocks

⑧

Shaft
