Commissioning the device
4.3 Parameter assignment for Comfort Panel
Comfort Panels
110 Operating Instructions, 07/2017, A5E36770603-AB
Use this function to configure the type of Internet access.
● The Control Panel is open.
● Your system administrator has provided you with the necessary information.

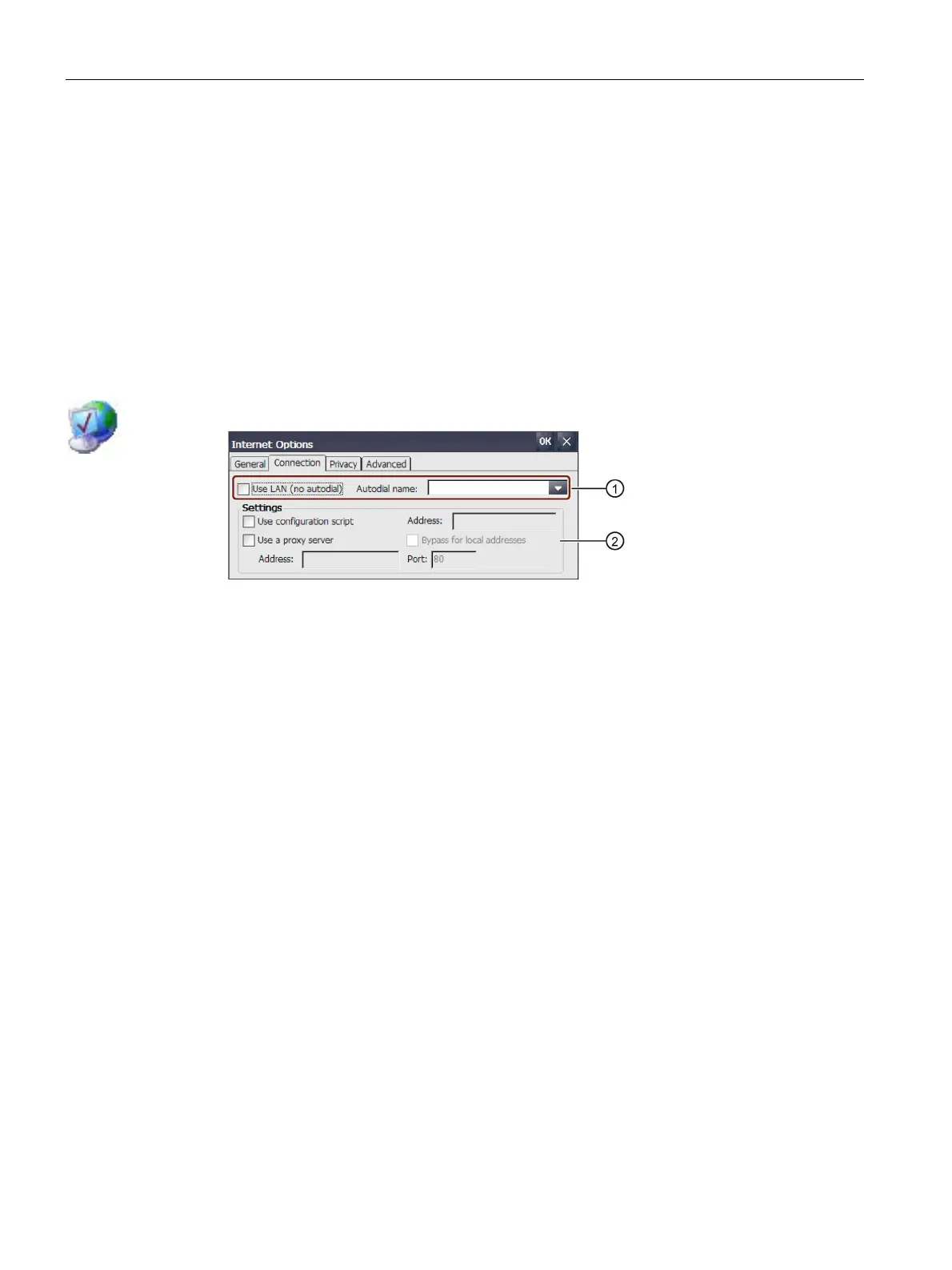

1. Open the "Internet Options" dialog using the "Internet Options" icon.
2. Change to the "Connection" tab.
3. If you want to use LAN without automatic dial-up, select the "Use LAN (no autodial)"
check box.
4. If you want to use LAN with automatic dial-up, clear the "Use LAN (no autodial)" check
box and select the required name in the "Autodial name" list box.
5. If you are using a configuration script, select the "Use configuration script" check box in
the "Settings" group.
Enter the address of the script.
6. If you are using a proxy server, select the "Use a proxy server" checkbox.
Specify the address and port of the proxy server. Only the start of the addresses is
required. Separate the addresses with a semicolon.
7. To use a local address, select the "Bypass for local addresses" check box.
8. Confirm your entries with "OK".
The dialog closes.
The parameters for the LAN connection have been assigned.
