Siemens SIMOCODE pro Operating Manual

Parameters
4.2 Motor control
SIMOCODE pro - Parameterize
Operating Manual, 04/2017, A5E40507630002A/RS-AA/001
57
Mode selector
The S1 / S2 mode selectors are used to switch between the operating modes "Local 1,"
"Local 2," "Local 3," and "Remote/Automatic." To do this, plugs S1 and S2 must be
connected to any sockets (e.g. device inputs, communication bus control bits, etc.).
The table below shows the operating modes depending on the signal states of mode
selectors S1 and S2:
Table 4- 5 Operating modes depending on S1 and S2
Input
Operating mode
Local 1
Local 2
Local 3
Remote / Automatic
S1
0
0
1
1
S2
0
1
0
1
The different operating modes for enabling the control stations can be used to specify the
switch authorizations for the individual control stations:
● Local control [LC]
● PLC/PCS [DP] or PLC/PCS [PN]
● PC [DPV1] or PC/OPC-UA [HMI]
● Operator panel (OP)
Only the following are active:
● the operating mode set by plugs S1 and S2 of the "Control Stations" function block and
● the enables selected there.
Example of a dynamic mode selection as a function of time:

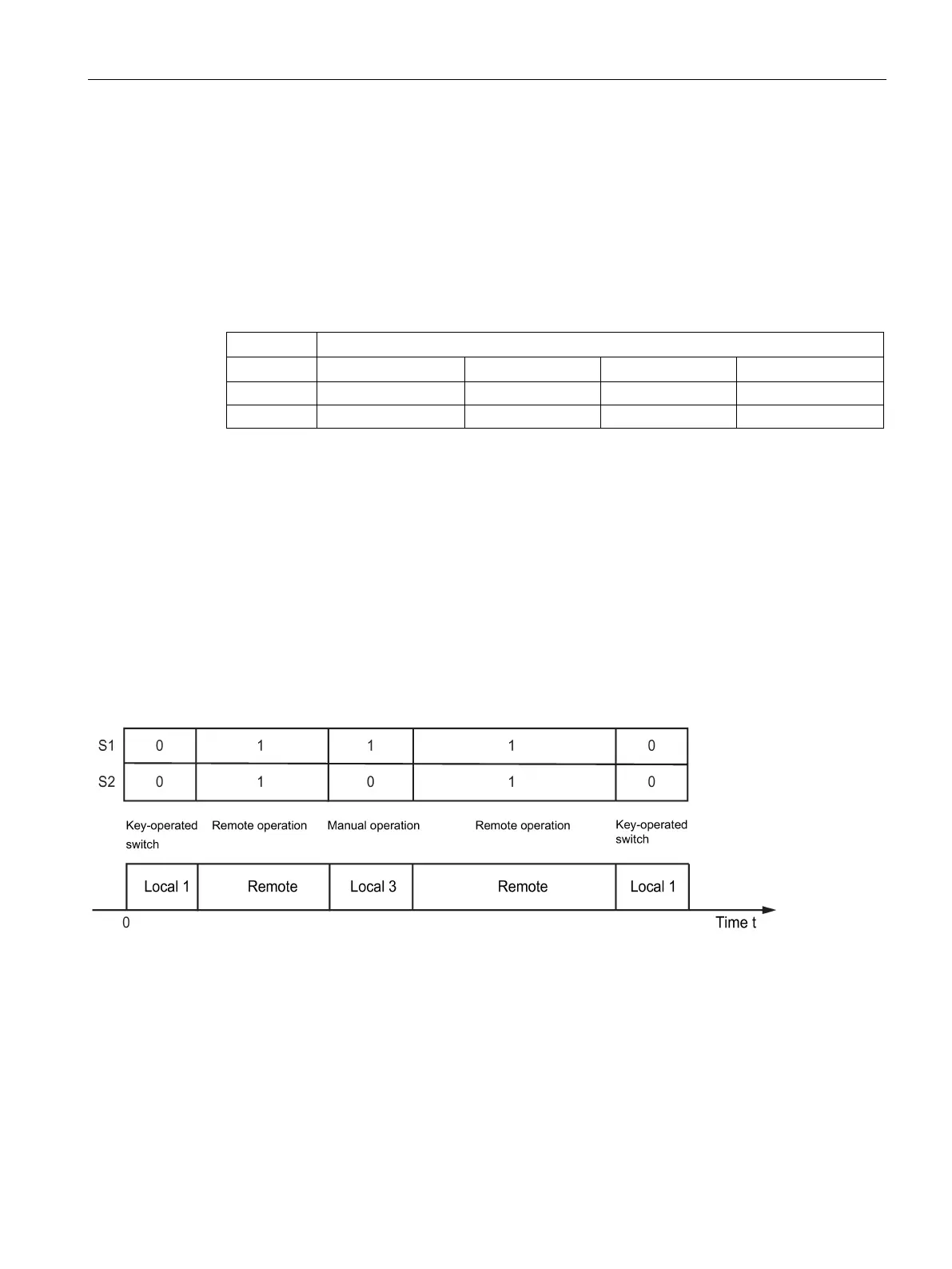

Figure 4-8 Example - mode selection

Siemens SIMOCODE pro Specifications

General

Protection Class	IP20
Mounting Type	DIN rail mounting
Rated Operational Voltage	24 V DC
Rated Current	Up to 820 A
Protection Functions	Overload, short-circuit, phase failure, asymmetry, ground fault, motor stall
Operating Temperature Range	-25°C to +60°C
Communication Protocols	PROFIBUS DP, PROFINET, Modbus RTU
Analog Outputs	Up to 2
Temperature Monitoring	PTC/KTY, RTD (PT100/PT1000)
Digital Outputs	Relay outputs, Solid-state outputs
Analog Inputs	0/4-20mA, PT100/PT1000
